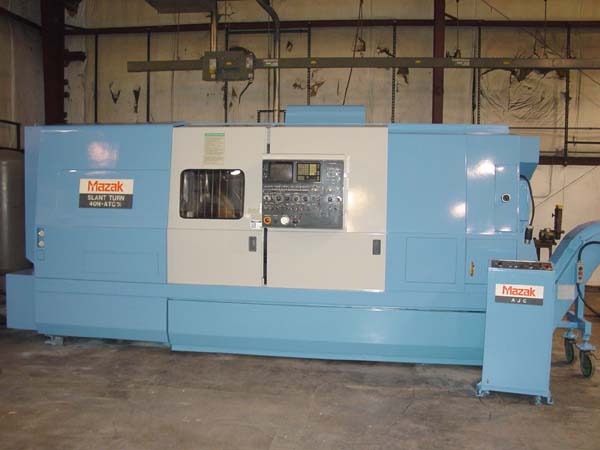

MAZAK SLANT TURN 40N ATC MILL CENTER
Model UNIVERSAL 1500, New 1989, Stock # K12916
MACHINE DESCRIPTION:
The Mazak Slant Turn 40 ATC Mill Center is a Turning Center
which is
Capable of Multiple Machining Processes, Such as End Milling,
Face
Milling, Drilling, and Tapping, as well as Turning. The
Extremely Rigid
Turret uses Cat 50 Tooling and up to 4" Cutters to do Secondary
Machining that a normal Live Tooling Machine could only dream
of.
EQUIPPED WITH:
Fanuc 11T 3-Axis Simultaneous CNC Control w/CRT, Heavy Duty
Live Tooling Turret uses Cat 50 Tooling for Milling, Drilling
and
Tapping, 12" 3-Jaw Chuck, 30 Station Tool Changer, Automatic
Chuck Jaw
Changer, Linear and Circular Interpolation, Built-in Live Center
Programmable Tailstock with Optional 60" Center Distance,Chip
Conveyor,
Splash Enclosure & Coolant System.
CATALOGUE SPECIFICATIONS:
Max Swing Over the Slant Bed............................ 21.3"
Max Tailstock Position.................................. 60.6"
Cross Travel (X-Axis)................................... 21.6"
Max Machinable Center Distance (Z-Axis)................. 60.6"
Tool Positions.......................................... 30
Total
Rotary Tool Spindle..................................... 7.5 HP
Spindle Speed Range..................................... 6-3000
RPM
Spindle Nose............................................ A2-8
Hole Thru Spindle....................................... 3.15"
Feed Range.............................................. .1-200
IPM
Rapid Feed Rate......................................... 400 IPM
Spindle Horsepower...................................... 30 HP
Electrics...............................................
440/220/3/60
Approximate Machine Dimensions..........................
189"x96"x99"H
Approximate Machine Weight.............................. 20,700
LBS
CONDITION: Replacement cost of this Machine is Over $ 400,000.
Machine Appears to be in Excellent Condition !
