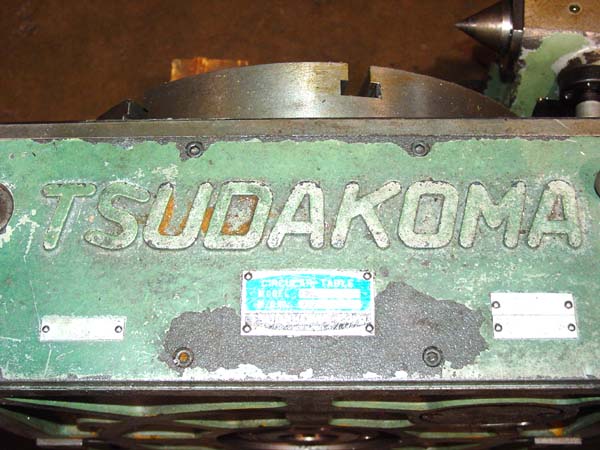

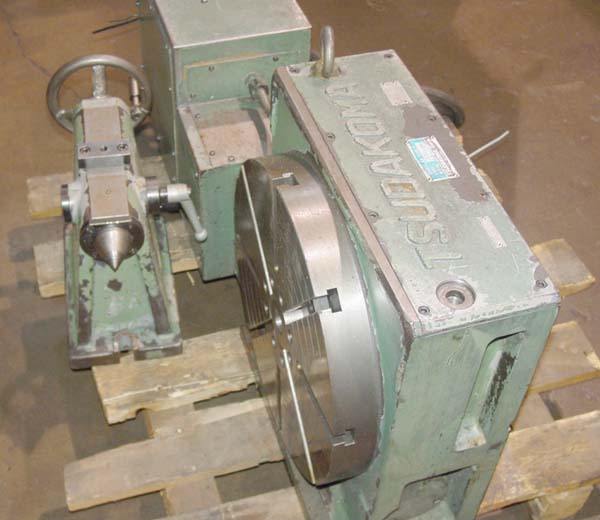

16" TSUDAKOMA HORIZ/VERT CNC ROTARY TABLE WITH TAILSTOCK
Model: RNC-400L, New 1993, S/N 307847, Stock# K12870
TABLE DESCRIPTION:
This Horizontal or Vertical Mount CNC Rotary Table was Designed
for
Full Contour Milling or Indexing of Parts. The Table is Driven by
an
Electric Servo Motor with Resolve Feed Back which could be Driven
by
Most CNC Controls. This Table is also equipped with an Internal
Solenoid
Actuated Hydraulic Table Clamp. For Work Holding It has a 15.79"
Round
T-Slotted Work Mounting Surface and a Tailstock. Table was taken
off a

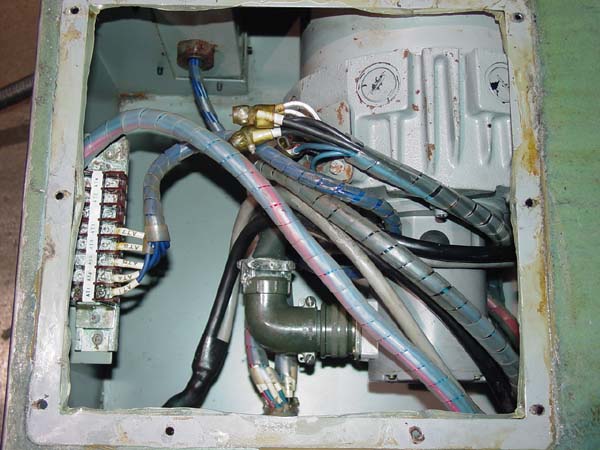

Mazak Vertical and is Equipped with a Mitsubishi Servo Motor.
CATALOGUE SPECIFICATIONS:
Working Surface Diameter......................................
15.79"
Table Diameter................................................
15.79"
Maximum Recommended Weight Cap (Horizontal)...................
1100 LBS
Maximum Recommended Weight Cap (Vertical Without Tailstock)... 440
LBS
Distance Base to Center of Table (Vertical Mount)............. 10"
Distance Base to Top of Table (Horizontal Mount)..............
8-1/4"
Hole Thru Center of Table.....................................
1-1/4"
Table Positions...............................................
360,000
Approximate Dimensions........................................ 18
x 38
Approximate Height............................................
8-1/4"
Approximate Weight............................................ 600
LBS
CONDITION: Appears to be in Excellent Condition !
