FADAL CNC VERTICAL MACHINING CENTER
Model VMC-15XT,S/N 9710336, New 1996
Stock # K12853
EQUIPPED WITH:
Haas 88HS CNC Control, RS-232 Port, Multiple Part Program Storage,

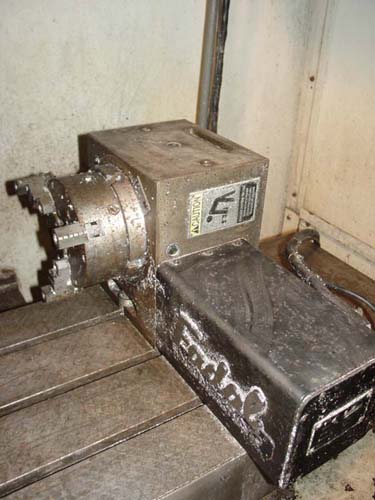

Self Diagnostics, 21 Station Automatic Tool Changer, 6" Fadal
4-Axis Rotary Table, Axis Error Compensation, Full Enclosure,
Coolant
System and Chip Pan.
CATALOGUE SPECIFICATIONS:
Table Working Surface................................. 38" x 16"
Table Load Capacity................................... 2,000 LBS
Longitudinal Travel (X-Axis).......................... 30"
Cross Travel (Y-Axis)................................. 16"
Vertical Travel (Z-Axis).............................. 20"
Spindle Nose to Table................................. 4" - 24"
Rapid Traverse Rate (X & Y-Axes)...................... 400 IPM
Rapid Traverse Rate (Z-Axis).......................... 400 IPM
Tool Storage Capacity................................. 21
Spindle Horsepower.................................... 10 HP
Spindle Speeds Range.................................. 10- 7,500
RPM
Spindle Taper......................................... #40 Cat
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 87" x 106"
Approximate Machine Height............................ 95"
Approximate Machine Weight............................ 8,000 LBS
CONDITION: Appears to be in Excellent Condition !
PRICE F.O.B. Cincinnati
Ohio.........................$ 27,500.
