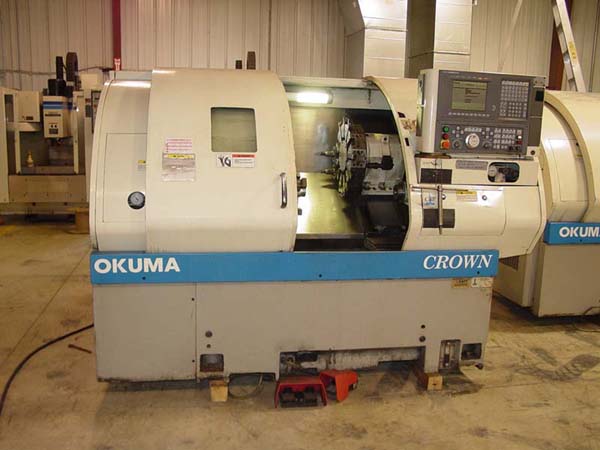

OKUMA CROWN CNC TURNING CENTER
Model CROWN, S/N 0028, New 1998
Stock# K12850
EQUIPPED WITH:
Okuma OSP7000L CNC Control w/CRT, 8" 3-Jaw Power Chuck, Linear and
Circular Interpolation, Auto Chamfer, Lap-4, Nose Radius, Turret
Position Comp, User Task 2, Bed Mounted Programmable Tailstock,
Spindle
Load Meter, Auto Backlash Compensation, Auto Lube, Work Light,
Coolant
System, and Chip Conveyor.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 21.65"
Maximum Swing over Cross-Slide.......................... 15.75"
Maximum Turning Diameter................................ 10.63"
Maximum Turning Length.................................. 19.68"
Standard Chuck Size..................................... 8"
Cross Travel (X-Axis)................................... 7.28"
Longitudinal Travel (Z-Axis)............................ 20.47"
Feed Range (Infinitely Variable)........................ .1-400
IPM
Rapid Traverse Rate (X-Axis)............................ 590 IPM
Rapid Traverse Rate (Y-Axis)............................ 787 IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Spindle Bore............................................ 2.44"
Spindle Nose............................................ A2-6
Spindle Speed Range (1 RPM Increments).................. 75-4200
RPM
Spindle Horsepower...................................... 12 HP
Electrics............................................... 460/3/60
Approximate Machine Dimensions.......................... 104" x
73"
Approximate Machine Height.............................. 69"
Approximate Machine Weight.............................. 9,000 LBS

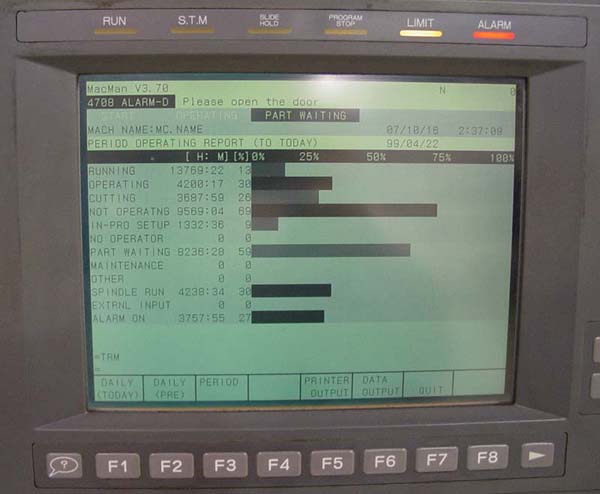

CONDITION: Low Hours ! Only 3687 Cutting Hours, Appears to be in
Excellent Condition !!
