Stock Number K12811

komo

komo

komo

ACTUAL PHOTO


O

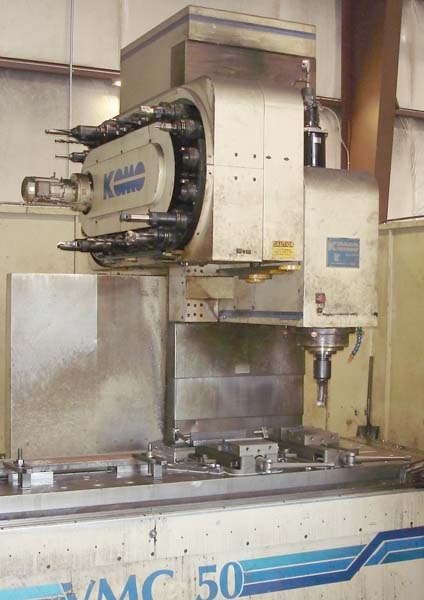

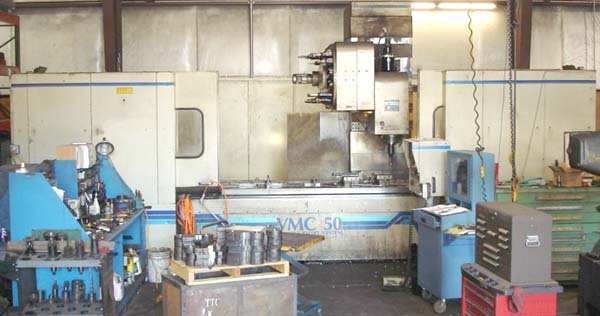

  KOMO VMC-50 TRAVELING COLUMN VERTICAL MACHINING CENTER
 Model VMC50, New 1996
   Stock# K12811

EQUIPPED WITH:

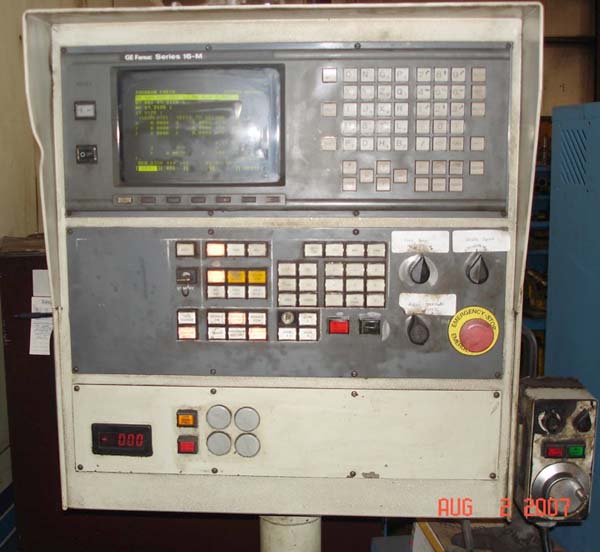

 Fanuc 16MB Control, Multi Part Program Storage, Programmable Offsets,
RS-232 Data Line, Dual Set-up Table Positions with Partition, Feedback
Scales, Helical Cutting, Heavy Duty Cat-50 Taper Spindle, 30 Station
Double Arm Tool Changer, Coolant System and Chip Conveyor.

 CATALOGUE SPECIFICATIONS:

 Table Working Surface................................. 32" x 120"
Table Load Capacity................................... Unlimited
Longitudinal Travel (X-Axis).......................... 120"
Cross Travel (Y-Axis)................................. 32"
Vertical Travel (Z-Axis).............................. 32"
Feed Rates (X,Y,Z Axis)............................... .1 - 500 IPM
Rapid Traverse Rate (X & Y-Axis)...................... 600 IPM
Tool Storage Capacity................................. 30
Spindle Horsepower.................................... 25 HP
Spindle Speed Range................................... 0-3500 RPM
Spindle Taper......................................... #50 Cat
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 273" x 116"
Approximate Machine Height............................ 129"
Approximate Machine Weight............................ 54,700 LBS

 CONDITION: Machine Appears to be in Excellent Condition !
