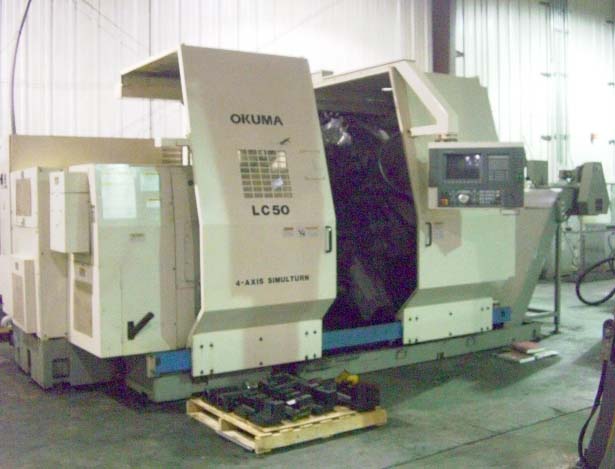

OKUMA MODEL
LC-50 4-AXIS CNC TURNING CENTER
Serial No.
1007-0201 , New 1999
EQUIPPED WITH
OSP-7000L CNC
Controls, 31.5" SMW Autoblock 3-Jaw Hydraulic Chuck, 22" Chip
Conveyor. Full Enclosures. Assorted LC-50 Tool Holders.
SPECIFICATIONS
Swing Over
Bed 31.5" (800mm)
Max Turning
Diameter 19.69" (500mm)
Max Turning
Length 29.63" (750mm)
Spindle
Hole 6.669" (190mm)
Spindle
Speeds 10-1500 RPM
Spindle Horse
Power 60/75 HP
Carriage
(Z-Axis)
Longitudinal Travel, UT 80.31" (2,040mm)
Cutting
Feedrates .0001-39.37 IPR (.01-1000mm/rev)
Rapid
Traverse Speed, UT 393.7 IPM (10,000mm/min)
Longitudinal Travel, LT N/A
Cutting
Feedrates, LT .0001-39.37 IPR (.01-1000mm/rev)
Rapid
Traverse Speed, LT 393.7 IPR (10,000mm/rev)
Cross-Slide
Travel (X-Axis)
Longitudinal Travel, UT 12.99+5.51" (330+140mm)
Cutting
Feedrates, UT .0001-39.37 IPR (.01-1000mm/rev)
Rapid
Traverse Speed, UT 196.85 IPM (5,000mm/min)
Longitudinal Travel, LT 10.04+.59" (255+15mm)
Cutting
Feedrates, LT .0001-39.37 IPR (.01-1000mm/rev)
Rapid
Traverse Speed, LT 196.85 IPM (5,000mm/min)
Turret
No. of Tool
Stations, UT 12
No. of Tool
Stations, LT 8
Bed
Length of
Upper Slideway 86.22" (2,190mm)
Width of
Upper Slideway 28.35" (720mm)
Length of
Lower Slideway 86.22" (2,190mm)
Width of
Lower Slideway 22.05" (560mm)
Hydraulic Tank
Capacity 10.6 Gal (40 R)
Approx.
Dimensions 125" x 256" x 114"H
Approx.
Weight 41,500 Lbs
