Stock Number K12706
|
|

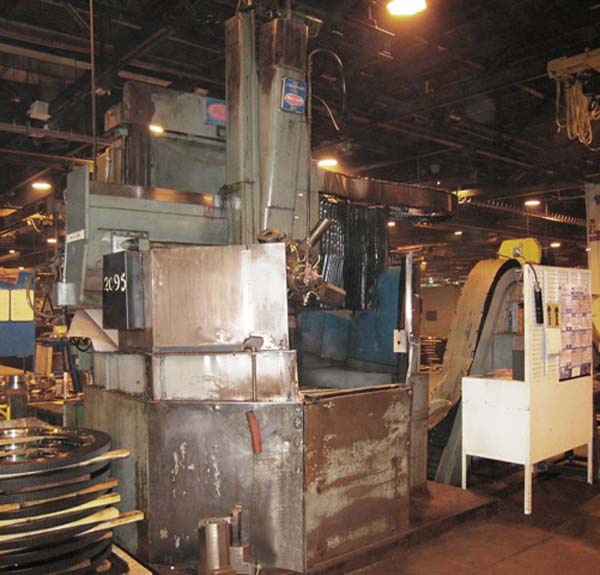

ACTUAL PHOTO
|
46"
BULLARD DYN-AU-TAPE CNC VERTICAL TURRET LATHE
Model Dyn-au-Tape, S/N 33525, New
1981 |
EQUIPPED WITH:

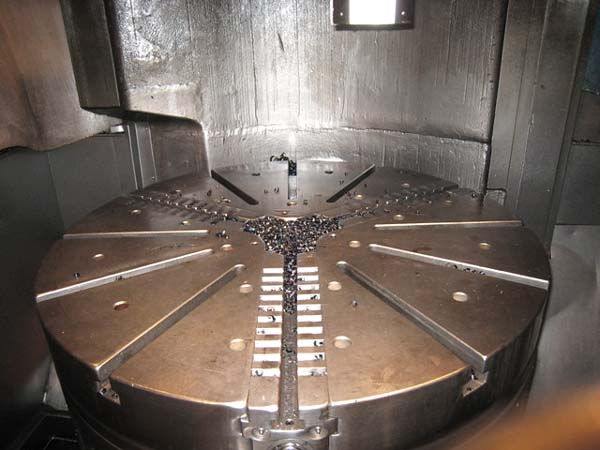

46" 3-Jaw Power Chuck, Ball Screws, Hardened Ways, 2 Range Variable
Speed Spindle with 50 HP Reliance DC Spindle Motor, 5 Position
Programmable Turret Head, Chip Conveyor, Splash Guards, Tooling,
and Coolant System.
CATALOG SPECIFICATIONS:
Table Size Diameter.............................. 46"
Max Swing........................................ 58"
Height Under Rail................................ 33"
Vertical Travel Of Turret Z-Axis................. 27"
Cross Travel of Turret Head X-Axis............... 50-1/2"
Vertical Travel of Cross Rail.................... 23"
Table Speeds (Infinitely Variable)............... 2.8 - 333 RPM
Axis Feed Rate................................... .001 TO .250 IPR
Approximate Machine Dimensions................... 181"
Approximate Machine Height....................... 157"
Approximate Machine Weight....................... 38,000 lbs
CONDITION: The Machine
appears to be in Very Good Condition. It was
Equipped with an old Allen Bradley CNC Control which has been Removed.
Price: On Location As
Is...............................$ 49,500.
Price: Reconditioned and
Retrofit with New Fanuc 18T CNC Control,
New Fanuc Alpha Servo Drives, New Fanuc Servo Motors, And New
Spindle Drive Unit.....................................$ 189,500.
|
|
|
|
