Stock Number K12704 & K12705
|
|
ACTUAL PHOTO
|

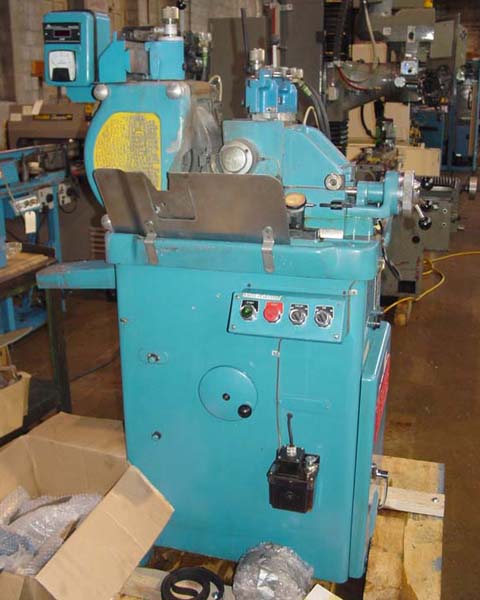

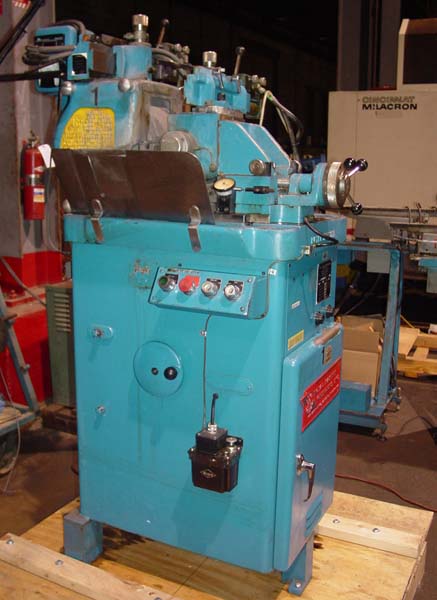

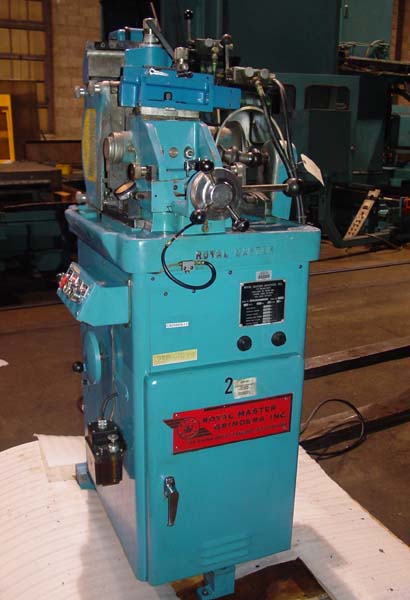

ROYAL MASTER TG-12X4 Centerless Grinder
|
ROYAL MASTER CENTERLESS GRINDER
Model TG-12x4, New 1998, S/N 2362
Stock # K12705
EQUIPPED WITH:

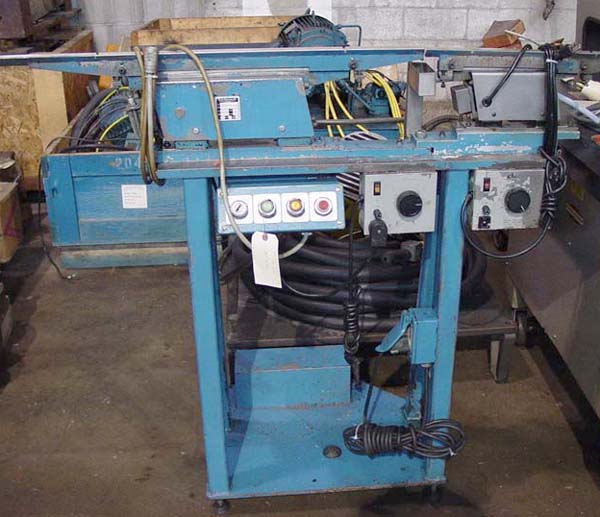

Thrufeed Workrest, Service Engineering Inc Vibratory Feeder, Power
Profile Grinding Wheel Dresser, Power Profile Regulating Wheel Dresser,
Bijur Central Lube System, Work Light.
CATALOGUE
SPECIFICATIONS:
Work Diameter Capacity Maximum (With New Wheel)........ 1.5"
Work Diameter Capacity Minimum......................... .004"
Grinding Wheel Diameter, Maximum....................... 12"
Grinding Wheel Diameter, Minimum....................... 10"
Grinding Wheel Width, Maximum.......................... 4"
Grinding Wheel Width, Minimum.......................... .25"
Regulating Wheel Diameter, Maximum..................... 6"
Regulating Wheel Diameter, Minimum..................... 4"
Regulating Wheel Width, Maximum........................ 4"
Regulating Wheel Width, Minimum........................ .125"
Grinding Wheel Speeds.................................. 2040 RPM
Regulating Wheel Speeds (Variable)..................... 20 - 500 RPM
Grinding Wheel Motor................................... 7.5 HP
Hydraulic System Motor................................. 1/4 HP
Electrics.............................................. 230
Approximate Machine Dimensions......................... 44" x 48"
Approximate Machine Height............................. 52"
Approximate Machine Weight............................. 2300 LBS
CONDITION: New Replacement
Cost is Over $ 60,000. This Machine is From a
High Precision Shop Appears To Be In Excellent Condition !
|
|
|
