Stock Number K12044

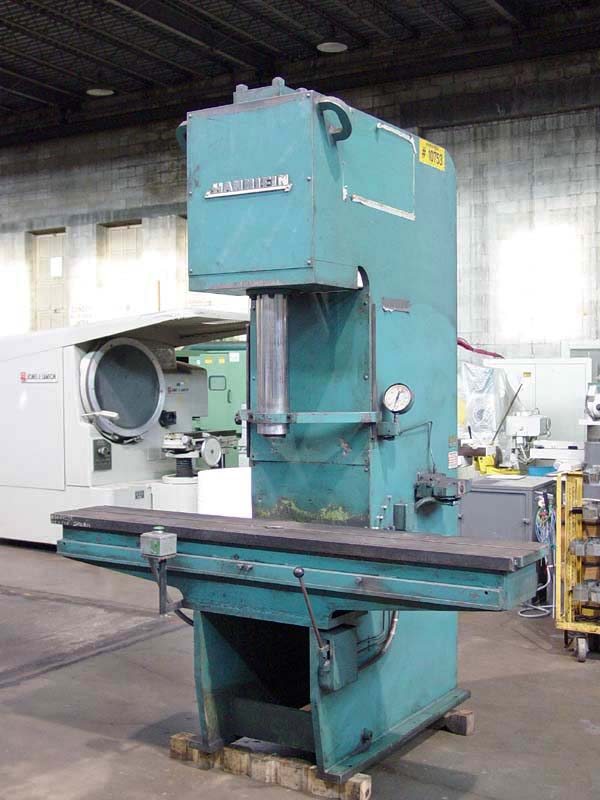

35 TON HANNIFIN C-FRAME HYDRAULIC STRAIGHTENING PRESS
                Model S35-84-12-4-1-sp, New 1964, S/N A41330
                               Stock# K12044

 EQUIPPED WITH:

 13" x 84" Bed, Adjustable Stroke, Adjustable Pressure Control,
Lever Actuated Control, `Built In' Hydraulic Unit, Adjustable Ram
Speed.


 CATALOGUE SPECIFICATIONS:

 Tonnage Capacity..................................... 35 Ton
Bed Area............................................. 13" x 84"
Stroke Length........................................ 12"
Daylight, Maximum.................................... 22-1/2"
Throat Depth Ram Centerline to Frame................. 10"
Main Cylinder Diameter............................... 7"
Ram Diameter......................................... 5"
Ram Speed, Pressing.................................. 60 IPM
Ram Speed, Rapid Return and Advance.................. 122 IPM
Maximum Pressure..................................... 1820 PSI
Motor, Horsepower.................................... 10 HP
Electrical System.................................... 460/3/60
Approximate Machine Dimensions....................... 4'x 5'
Approximate Machine Height........................... 7'6"
Approximate Machine Weight........................... 5,600 LBS

 Condition: Appears to be in Very Good Condition!
