24" PRATT & WHITNEY PRECISION TILTING POWER ROTARY TABLE

Stock Number K10910

24" PRATT & WHITNEY FOR SALE PRECISION TILTING POWER ROTARY TABLE

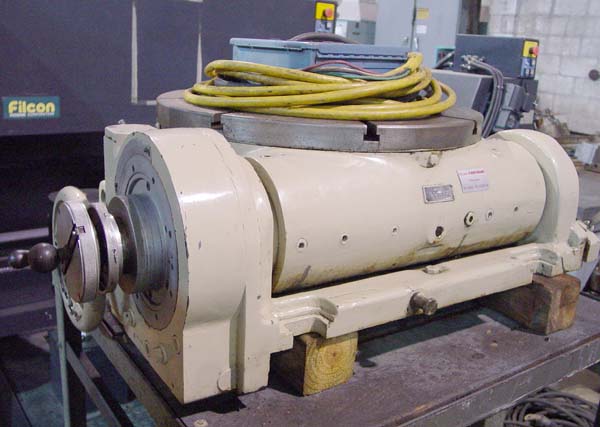

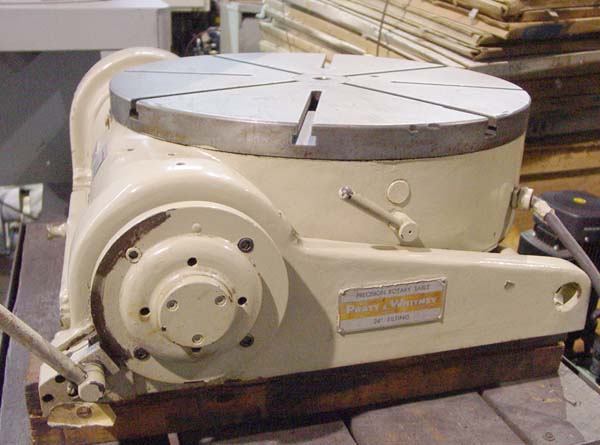

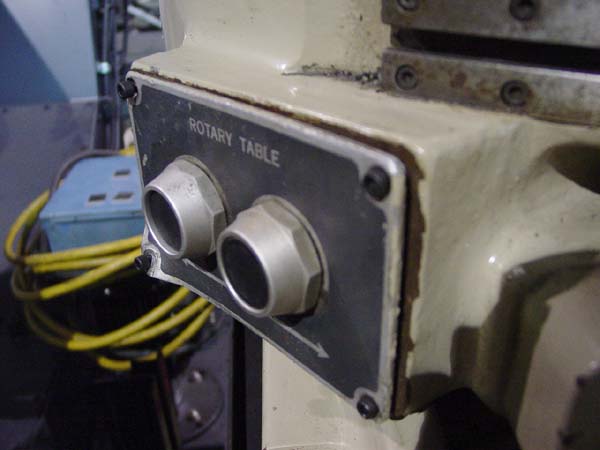

ACTUAL PHOTOS

    24" PRATT & WHITNEY TILTING POWER ROTARY TABLE
                       Model M1896, Stock # K10910

TABLE DESCRIPTION:
The 24" Pratt & Whitney Tilting, Motor Driven, Rotary Table is Designed
Especially for Precision Machining or Inspecting at Simple or Compound
Angles. Where Positioning Involves Many Faces in Several Planes, this
Table makes it Possible to Perform all the Required Operations in One
Easy Set-up. The Self-Contained Reversible Motor Provides Fast Rotation
in Either Direction for Rapid Indexing. Readings to 2 Seconds of Arc
(1/1800 of a Degree) can be Obtained with the Large Vernier Setting
Knob. The Working Surface is Precision Ground with (8) Radial T-Slots.

CATALOGUE SPECIFICATIONS:
Working Surface Diameter............................. 24"
Maximum Recommended Weight Cap Horizontal............. 1200 lbs
Maximum Recommended Weight Cap Vertical.............. 800 lbs
Table Height......................................... 10-1/2"
Maximum Tilting Range Above Horizontal............... 90 Degrees
Center Hole in Table................................. # 9 B&S
Number of Radial T-Slots............................. 8
Size of T-Bolts...................................... 1/2"
Tilting Graduations.................................. 1 Degree
Tilting Vernier Graduations read to.................. 1 Min (1/60 Deg)
Table Graduations.................................... 1 Degree
Table Dial Graduations read to....................... 1 Min (1/60 Deg)
Table Dial Vernier Graduations....................... 2 Sec (1/1800 Deg)
Clamping............................................. Manual Hand Lever
Motor................................................ 1/2 HP
Electrical System.................................... 220/440/3/60
Approximate Dimensions............................... 39" x 34"
Approximate Height................................... 10-1/2"
Approximate Weight................................... 1,247 LBS

CONDITION: Appears to be in Excellent Condition !
