CINCINNATI MILACRON 'AVENGER' CNC TURNING CENTER

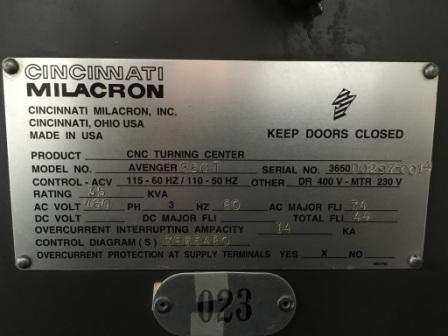

                       Model 250T, New 1997, S/N 3650002-97-0014 ,Stock # Q10008


EQUIPPED WITH:

Siemens Acramatic 2100 PC Based CNC Control with Color CRT, Multiple
Part Program Storage, RS-232 Port, Tailstock Option w/Programmable

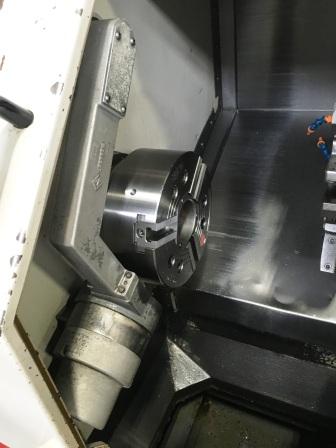

Body and Quill, 10" 3-Jaw Power Chuck, Auto Lube, Chip Pan and Coolant
System.

CATALOGUE SPECIFICATIONS:

Max Swing Over Bed................................................. 23.54"
Max Swing Over Carriage......................................... 10.55"
Max Tailstock Position.............................................. 23.5"
Max Machinable Center Distance.......................... 20.87"
Standard Chuck Size................................................. 10"
Cross Travel (X-Axis)................................................ 7.09"
Longitudinal Travel (Z-Axis)..................................... 20.87"
Feed Range (Infinitely Variable)............................... .1-400 IPM
Rapid Traverse Rate (X-Axis)................................... 787 IPM
Rapid Traverse Rate (Y-Axis)................................... 944 IPM

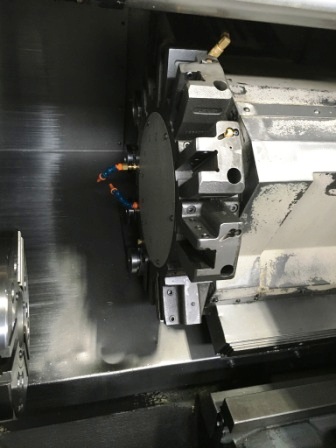

Number of Turrets....................................................... 1
Tool Positions............................................................... 12 Total
Spindle Bore................................................................. 3.15"
Spindle Nose................................................................ A2-6
Spindle Speed Range (1 RPM Increments).......... 30-5000 RPM
Spindle Horsepower................................................... 30 HP
Electrics.......................................................................... 230/460/3/60
Approximate Machine Dimensions.......................... 104" x 68"
Approximate Machine Height.................................... 69"
Approximate Machine Weight.................................... 10,300 LBS

CONDITION: Appears to be in Excellent Condition.
