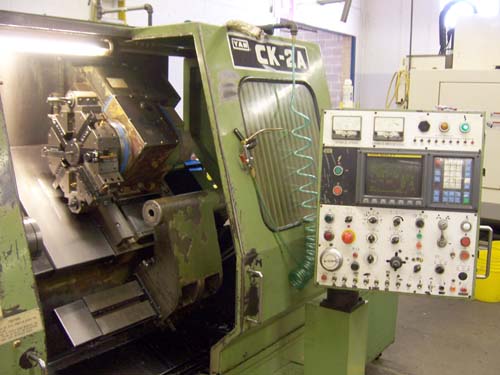

YAM CK-2A CNC TURNING CENTER
Model CK-2A, New 1991
Stock #K12792
EQUIPPED WITH:

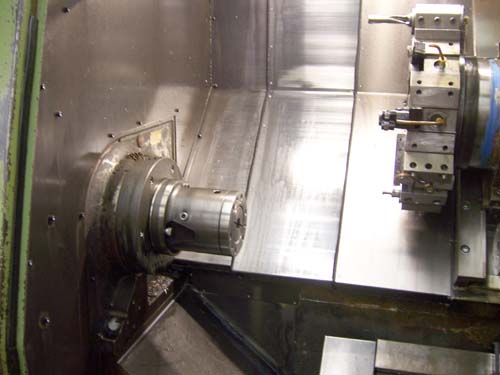

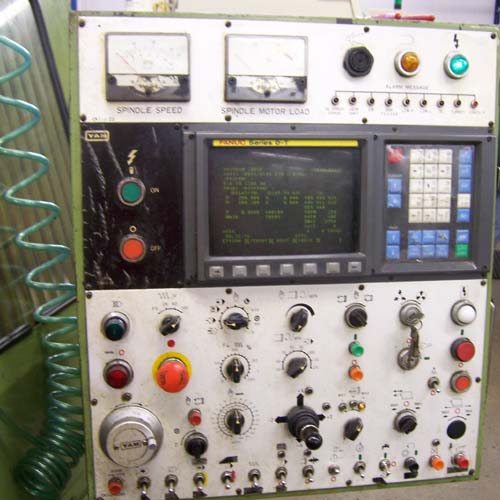

Fanuc 0T CNC Control, RS-232 Port, 10" 3-Jaw Power Chuck, Programmable

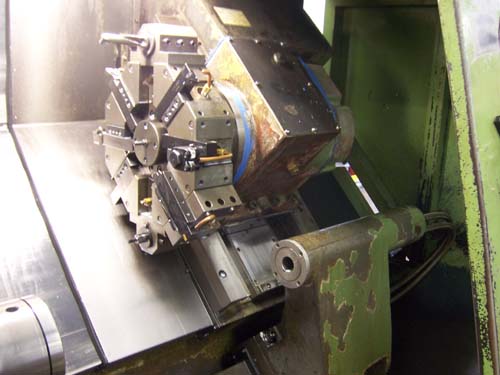

Tailstock, 8 Position Tool Turret, Chip Conveyor, Coolant System, Tooing
Package.
CATALOGUE SPECIFICATIONS:
Max Swing Over Slant Bed ................................... 18"
Max Swing Over Crosslide Ways...............................11"
Max Turning Diameter........................................ 11"
Max Machinable Center Distance.............................. 19.7"
Cross Travel (X-Axis)....................................... 6.3"
Longitudinal Travel (Z-Axis)................................ 17.1"
Rapid Traverse Rate X-Axis ................................. 400 IPM
Rapid Traverse Rate Z-Axis.................................. 400 IPM
Tool Positions.............................................. 8 Total
Spindle Nose................................................ A2-6
Spindle Bar Capacity............................................... 2.5"
Spindle Speed Range ........................................ 30-3500RPM
Spindle Horsepower.......................................... 10 HP
Approximate Machine Dimensions.............................. 122" x 71"
Approximate Machine Height.................................. 72"
Approximate Machine Weight.................................. 10,000 LBS
