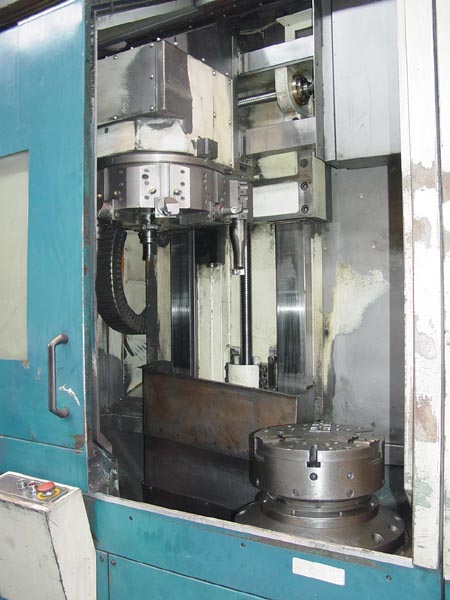

DAEWOO PUMA V15-2SP TWIN
SPINDLE CNC VERTICAL TURNING CENTER
Serial No. 2V150026 , New 1997
EQUIPPED WITH
Fanuc 16-TT CNC Controls, Fanuc Digital AC Spindle and Servo Drives, High
Speed 32-Bit Microprocessor and Bus, (2) 15" 3-Jaw Chucks, (2) 8-Position
Turrets, (2) Chip Conveyors, Rigid Box Way Construction, Fast Bidirectional
Turret Indexing, Large Diameter Ball Screws, Double Pretensioned Ball Screw
Support, Torque Limiter Clutches on Feed Axis, Automatic Lubrication System,
Backlash Compensation, Constant Surface Speed Control, Self Diagnostic
Functions, Auto Door, Auto Blower Device, Chip Flushing, Patrol Light, 150
KVA Transformer.
SPECIFICATIONS
Max Swing 31.5" (800mm)
Std. Turning Diameter 15" (381mm)
Max. Turning Diameter 25.6" (650mm)
Max. Turning Length 25.6" (650mm)
Spindle Speed 2000 RPM
Travel Distance
X 13.8" (350mm)
Z 26.8" (680mm)
Rapid Traverse
X 472 IPM (12 m/min)
Z 630 IPM (16 m/min)
Servo Motor
X 2.4HP (1.8Kw)
Z 4.7HP (3.5Kw)
Type of Turret 8-Station Drum
Turning Tool Size 1.25" (32mm)
Boring Bar Diameter 2" (50mm)
Approx. Dimensions 150"x104"x116"H(3810x2650x2950mm)
Approx. Weight 39,600 Lbs (18,000 KG)
