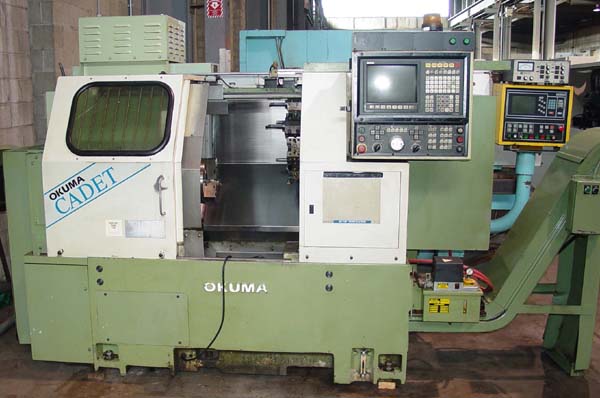

OKUMA CADET BIG BORE CNC TURNING CENTER
Model LNC-8N1S-T, S/N C767, New 1995
Stock# K12419
EQUIPPED WITH:
Okuma OSP 5020L CNC Control with CRT, 3.15" "Big Bore" Option, RS232
Port for DNC System, LAP4, Tool Nose Radius Comp, User Task 2, Expanded
Auto Chamfer, NC Torque Limiter, 10" 3-Jaw Kitagawa Model B-10 Chuck, 12
Position ID/OD Tool Turret, Auto Door, Heavy Duty Slant Bed
Construction, No Tailstock, Chip Conveyor, Coolant System.
Max Swing Over Slant
Bed.................................. 15.75"
Max Swing Over Carriage................................... 9.84"
Cross Travel (X-Axis)..................................... 8.23"
Longitudinal Travel (Z-Axis).............................. 19.68"
Feed Range (Infinitely Variable) ......................... .1 to 200 IPM
Rapid Traverse Rate ...................................... 591 IPM
Number of Turrets......................................... 1
Turret Positions.......................................... 12
Spindle Bore.............................................. 3.15"
Spindle Speed Range....................................... 65-3500 RPM
Spindle Drive Motor....................................... 15 HP
Electrics................................................. 240/460/3/60
Approximate Machine Dimension............................. 107" x 70"
Approximate Machine Height................................ 75"
Approximate Machine Weight................................ 9,900 LBS
