Stock Number K12299

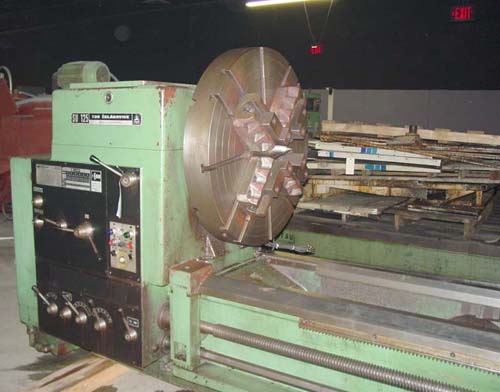

       50" X 240" TOS ENGINE LATHE
      New 1990, Model SU125, Stock# K12299

EQUIPPED WITH:

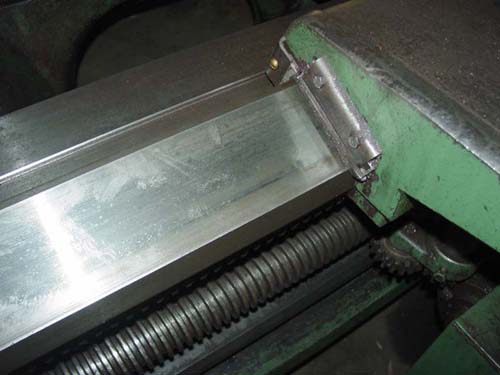

2-Axis Digital Readouts, Hardened Steel Bed Ways, 4 Directional Power

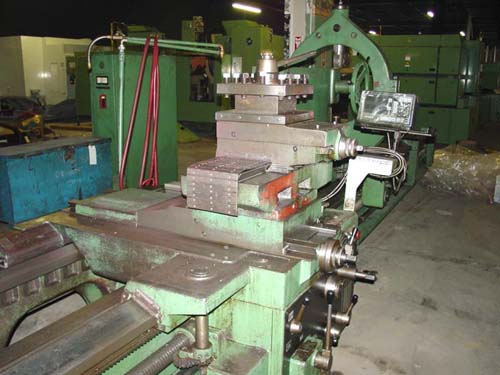

Rapid Traverse, Power Compound Cross-Slide, 4 Position Tool Post,

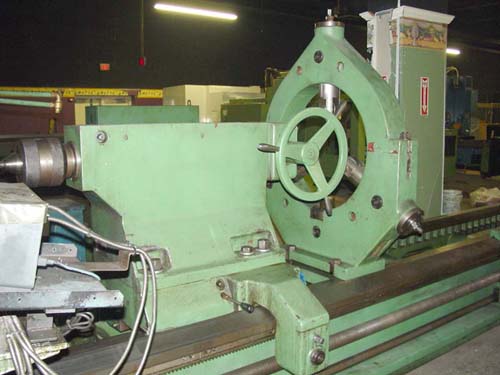

Inch/Metric Threading, " 4-Jaw Chuck, Steady Rest, Full Length
Coolant/Chip Pans.


CATALOGUE SPECIFICATIONS:

 Max. Swing Over Bed Ways............................ 50"
Max. Swing Over the Cross Slide..................... 37"
Max. Distance Between Centers....................... 240"
Hole Thru Spindle................................... 4"
(36) Spindle Speeds, Range.......................... 1.8 to 355 RPM
(38) Longitudinal Feeds............................. .002 to .0311 IPR
(38) Cross Feeds.................................... .0005 to.028 IPR
Threading Leads, Range............................... 1/2" -48 TPR
(36) Thread Changes, Range........................... .75 to 46 TPI
Electrics ........................................... 440/3/60
Approximate Machine Dimensions ...................... 296" x 58"
Approximate Machine Height .......................... 65"
Approximate Machine Weight........................... 32,700 LBS


CONDITION: Machine Appears to be in Excellent Condition!
