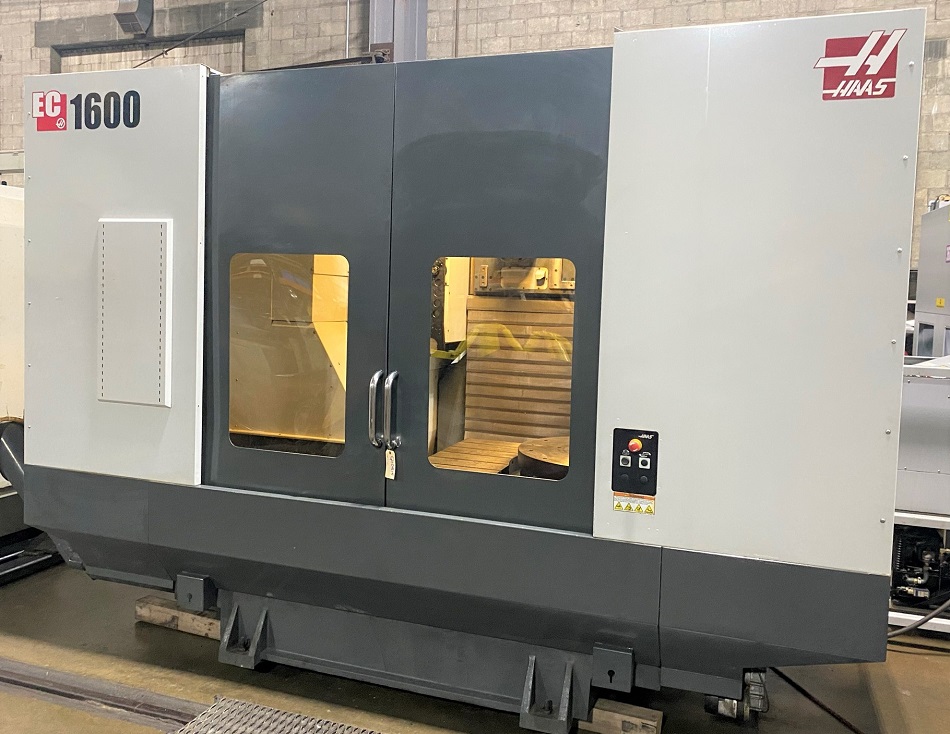

Haas EC-1600 4-Axis CNC Horizontal Machining Center

ACTUAL PHOTOS

Video Link

                                       HAAS EC-1600 4-AXIS CNC HORIZONTAL MACHINING CENTER
                                                      Model EC-1600-4X, S/N 2053301, New 2010
                                                                            Stock # Q10515


EQUIPPED WITH:
Haas CNC Control, Remote Jog Pendent, Synchronized Tapping, Full
Contouring 30" 'Built-in' Rotary Table, 7500 Max Spindle Speed

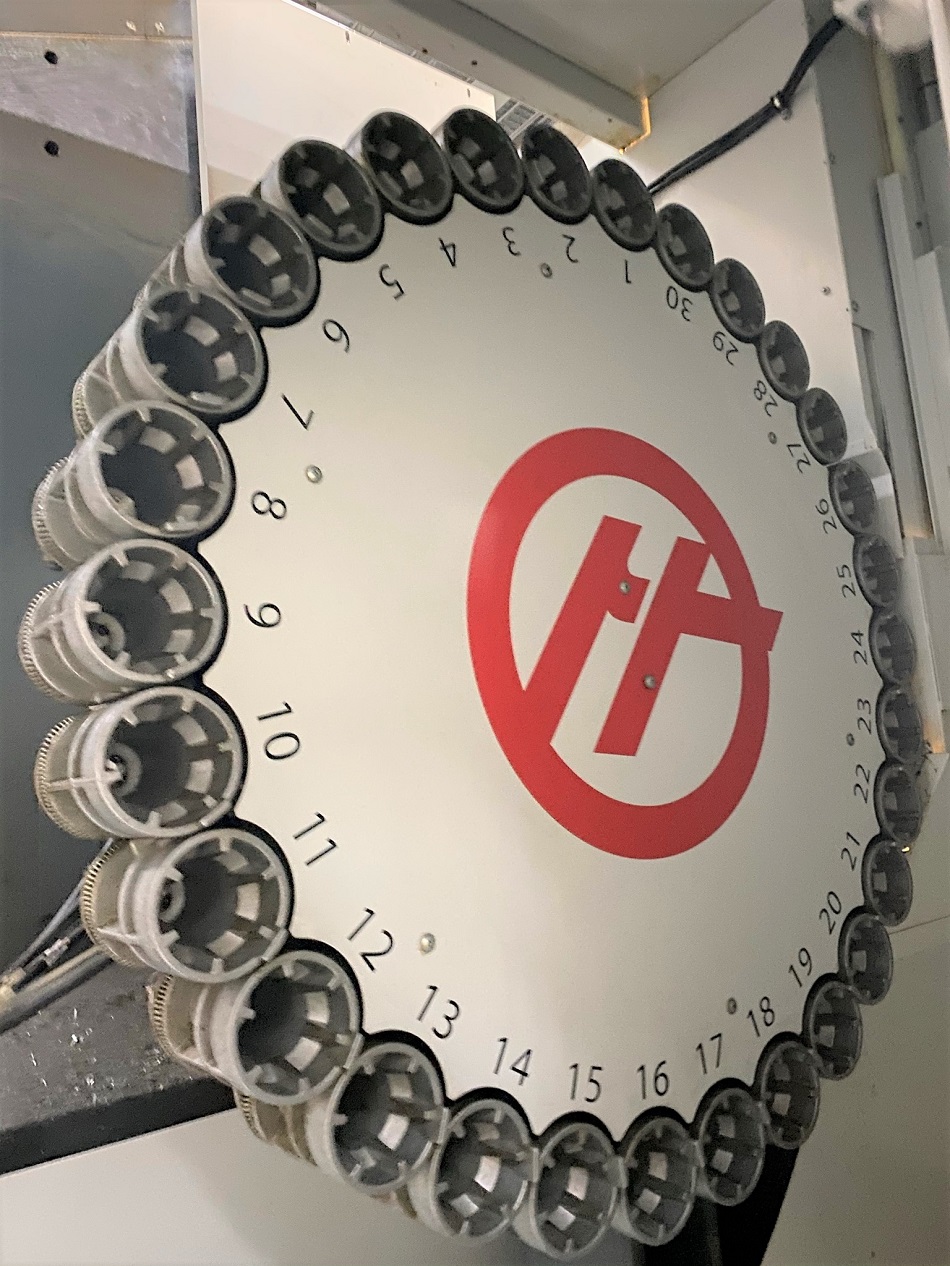

w/ 2 Speed Gearbox, Thru the Spindle Coolant, 30 Station Automatic
Tool Changer, Centralized Auto Lubricator, Dual Chip Augers,
Full Enclosure, Programmable Coolant Nozzle, Coolant System.

CATALOG SPECIFICATIONS:
Table Size............................................................. 64" x 36"

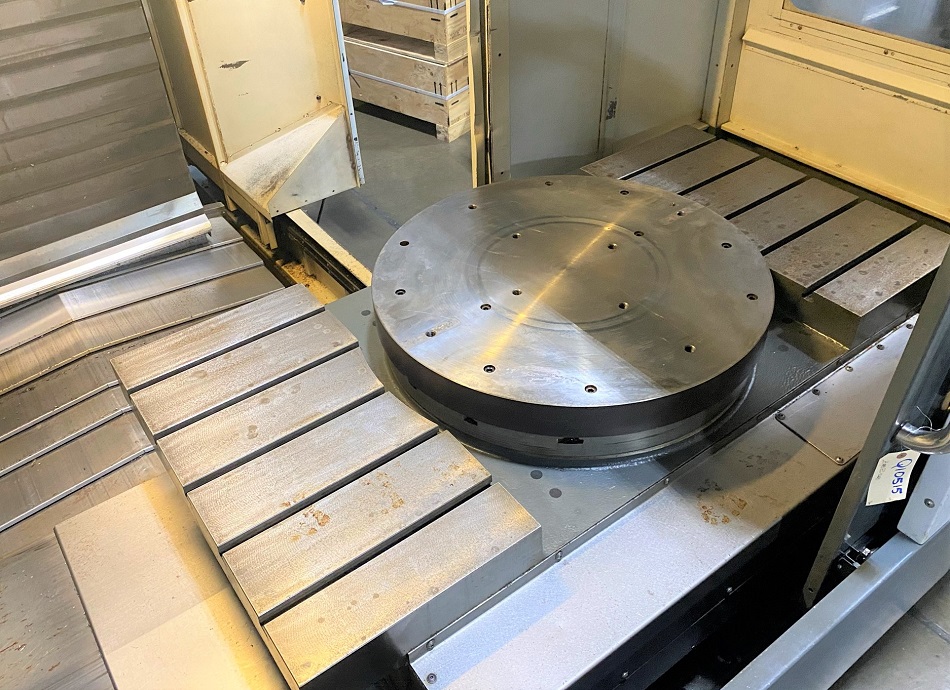

Built-in Rotary in Center of Standard Table.......... 30"
Longitudinal Table Travel (X-Axis)........................ 64"
Vertical Travel (Y-Axis)......................................... 50"
Head Cross Travel (Z-Axis).................................. 32"
Maximum Table Load........................................... 10,000 LBS
Number of Index Positions................................... 360,000
Max. Feed Rate, All Axes..................................... 600 IPM
Spindle Horsepower............................................. 30 HP
Spindle Speed Range.......................................... 50-7,500 RPM
Spindle Taper....................................................... #50 CAT
Number of Tool Positions..................................... 30
Approximate Machine Dimensions...................... 192" x 160"
Approximate Machine Height............................... 132"
Approximate Machine Weight.............................. 30,000 LBS

CONDITION: This Machine Appears to be in Excellent Condition!
