28” x 80” WEILER E70 x 2000 CNC FLAT BED LATHE

ACTUAL PHOTOS

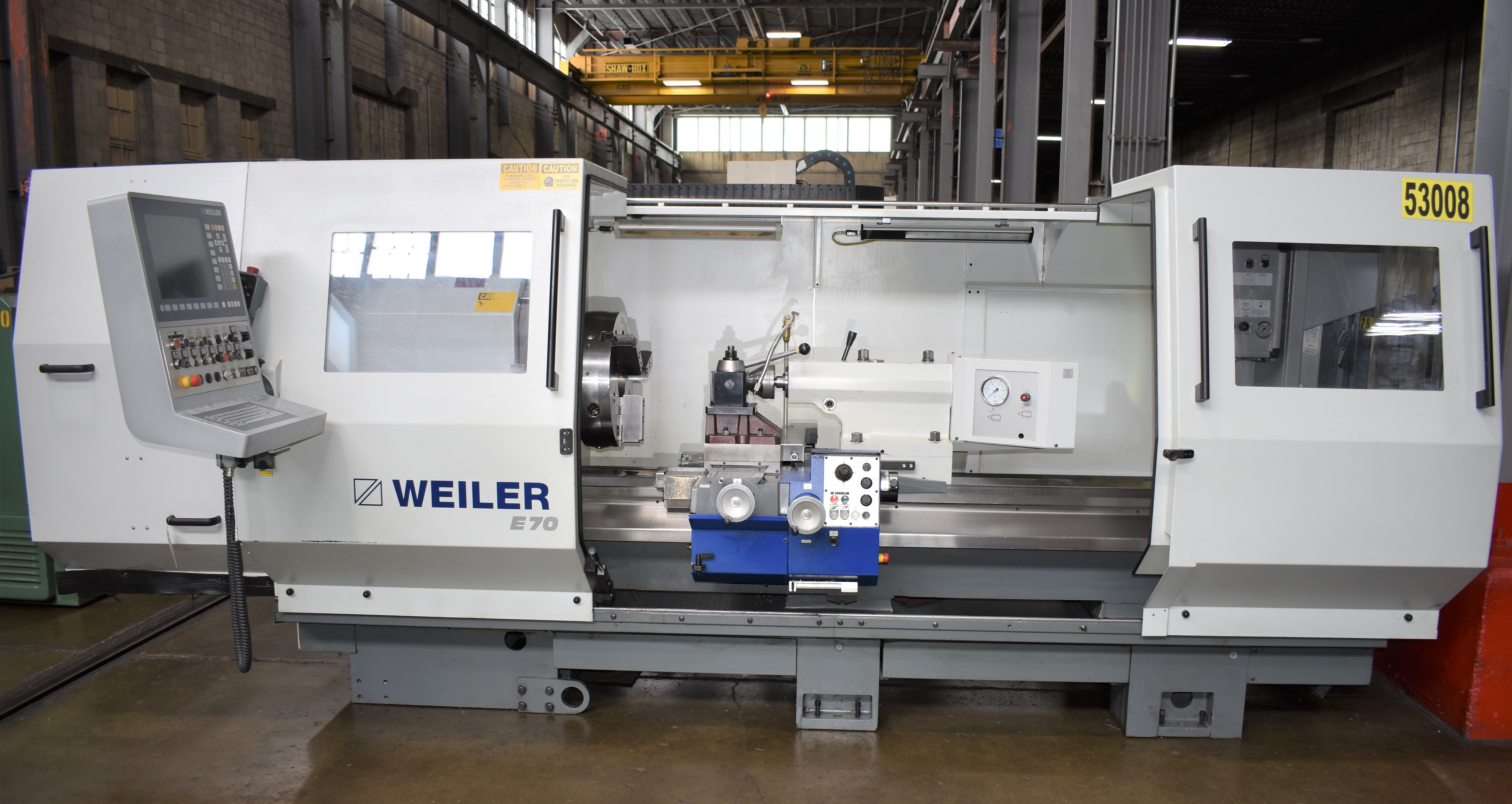

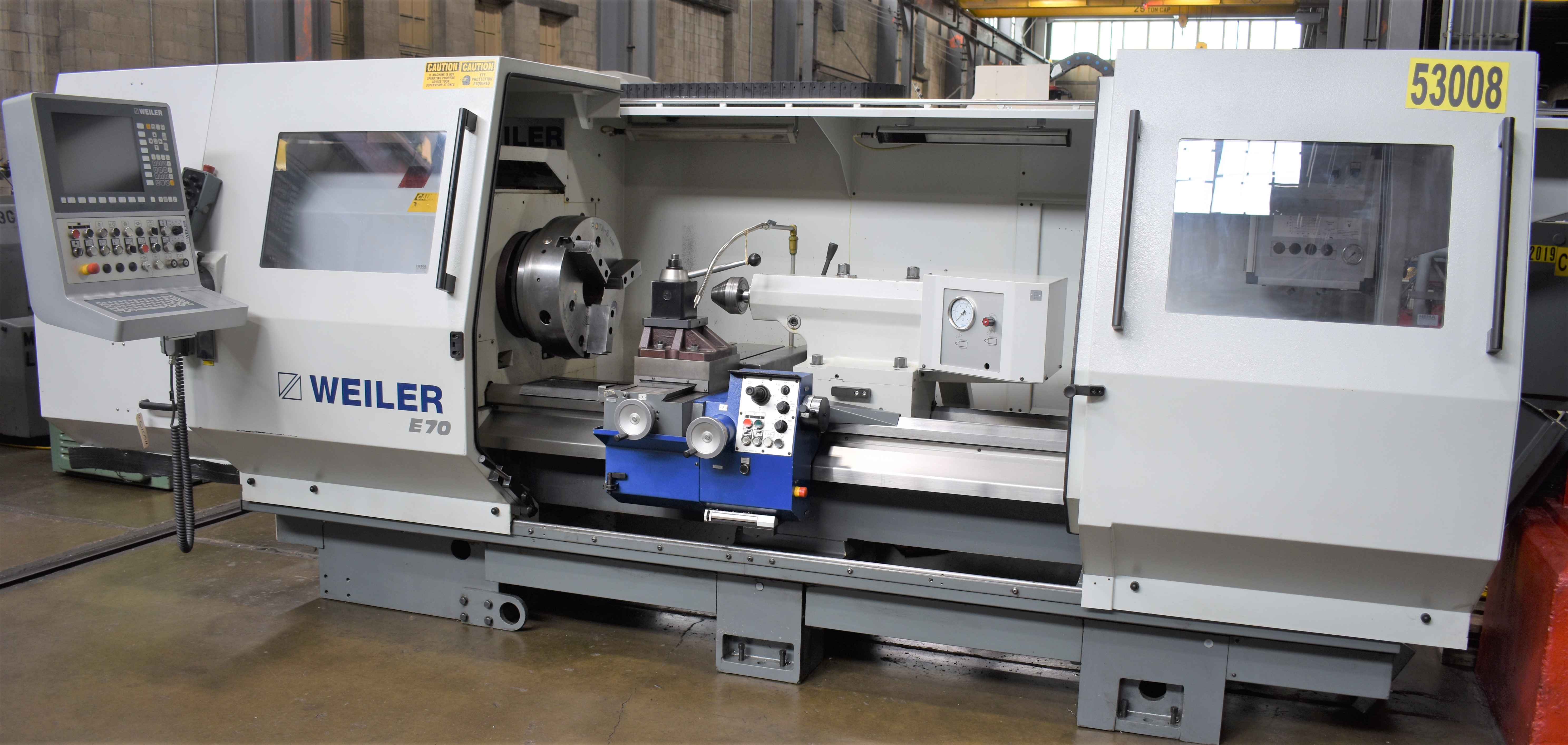

                                                        WEILER E70 CNC FLAT BED LATHE

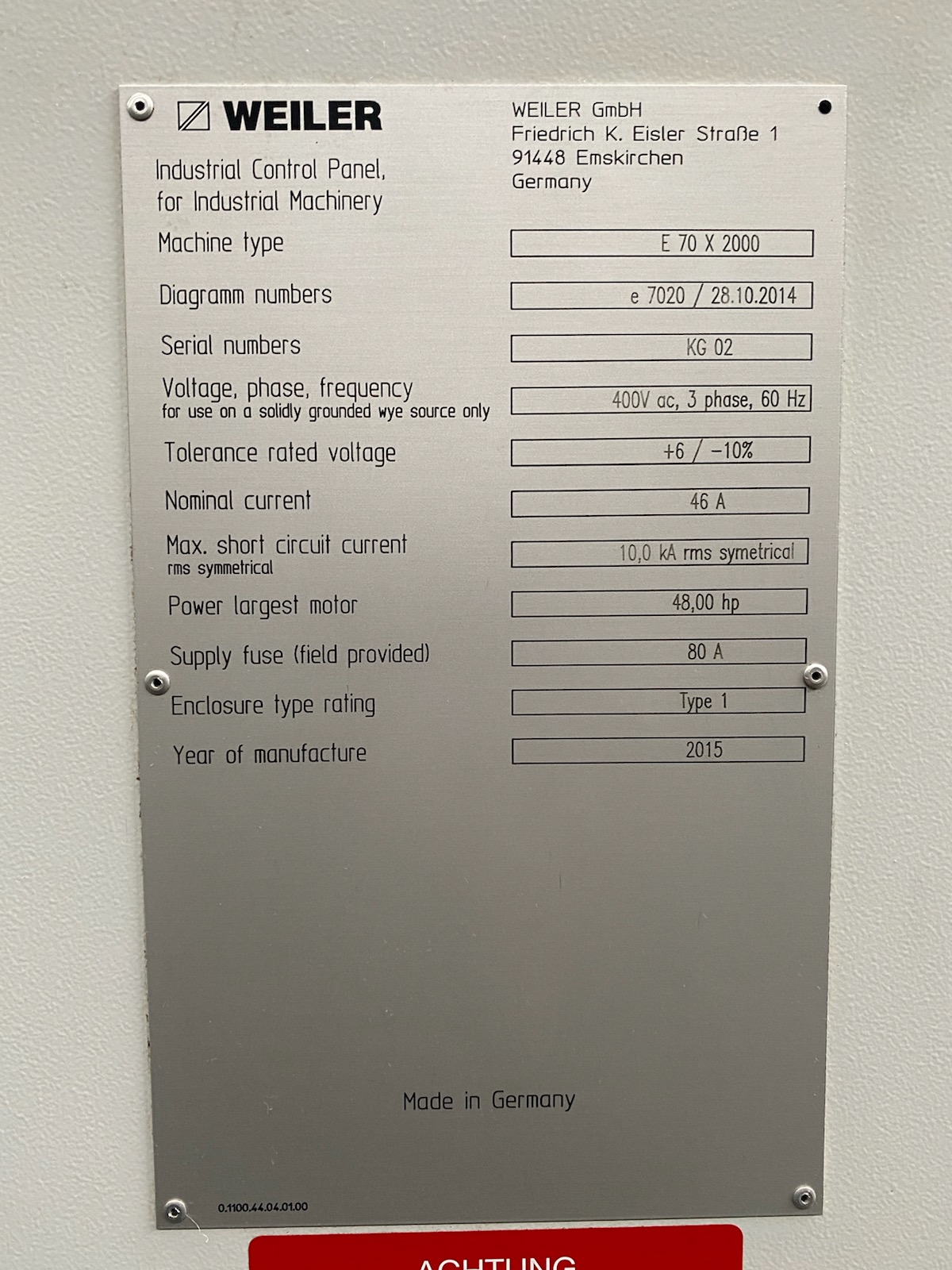

                                                      Model E70 x 2000, S/N KG 02, New 2015
                                                                           Stock# Q10511


EQUIPPED WITH:

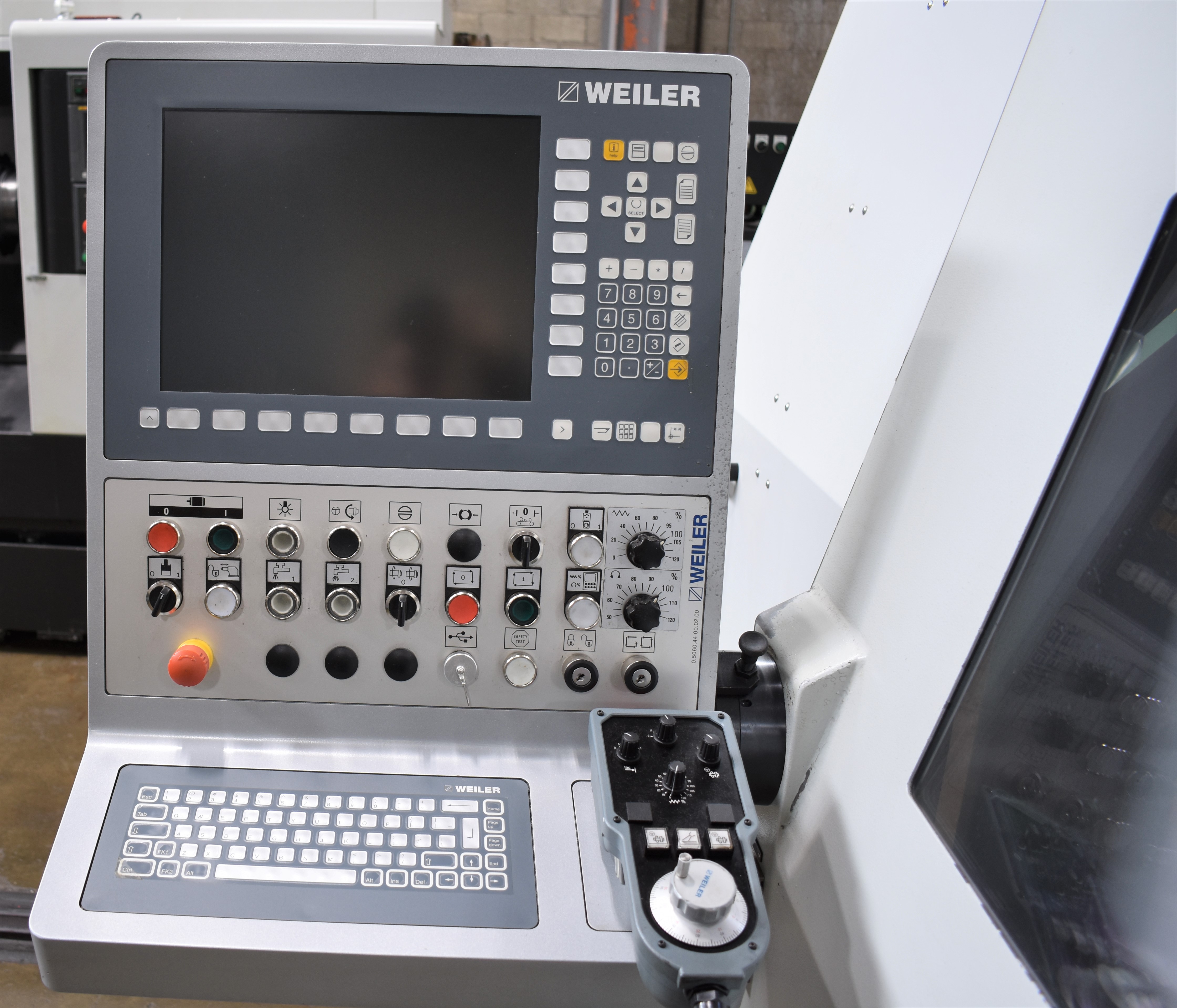

Siemens Sinumerik 840D CNC Control with user-friendly Weiler Teach SL-2
Software, Hand Held Operating Panel, Teach-in Functions and Programming,
Graphically Supported Contour Programming with Automatic Intersection
Point Calculation, Automatic Angle Control, Profile Grooving Cycles,
Parallel Programming during Machining, Multiple Part Program Storage,
Multiple Threading Cycles, USB Interface, Absolute Encoders on X & Z Axis,

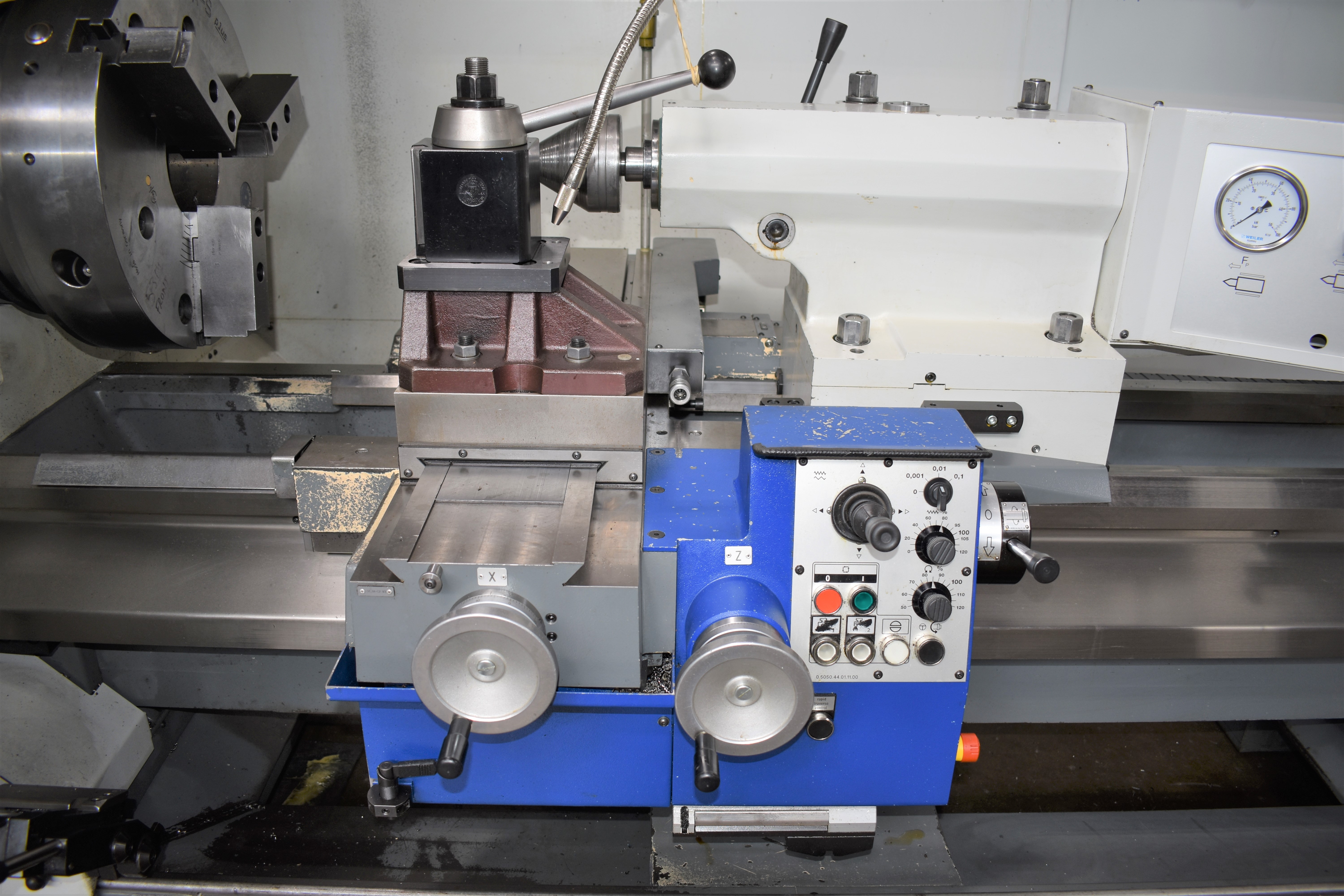

Hardened & Finest Ground Bed & Cross-Slide Ways, Auxiliary Manual Controls
on Cross Slide with 4-Way Joystick Lever for Rapid Traverse, Spindle Load

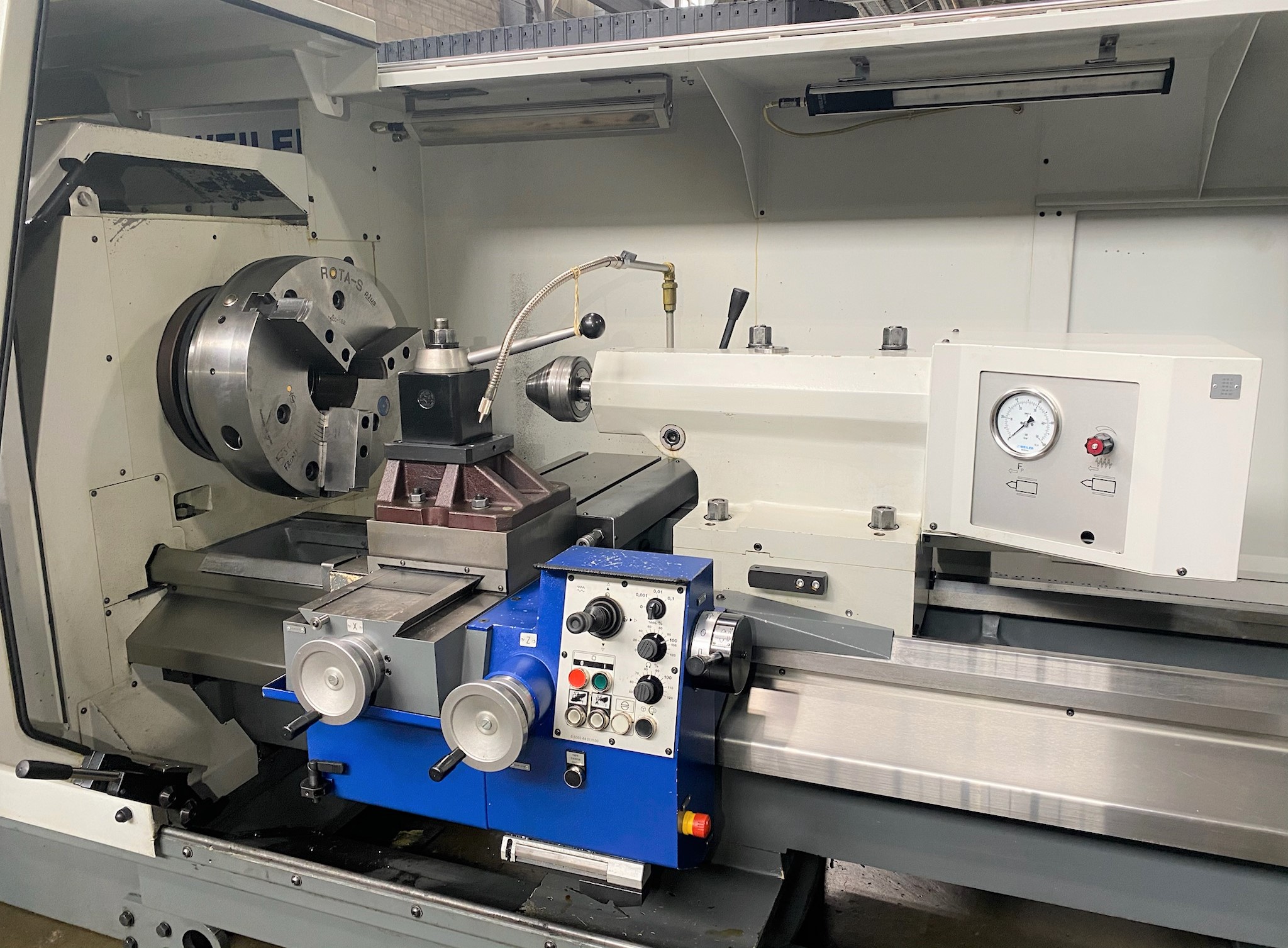

Meter, 20" 3-Jaw Rota-S plus Model 500-162 Chuck, 6.37" Spindle Bore, Heavy
Duty 48 HP (2) Range Geared Spindle, 80" Between Centers, 2-Sided Aloris

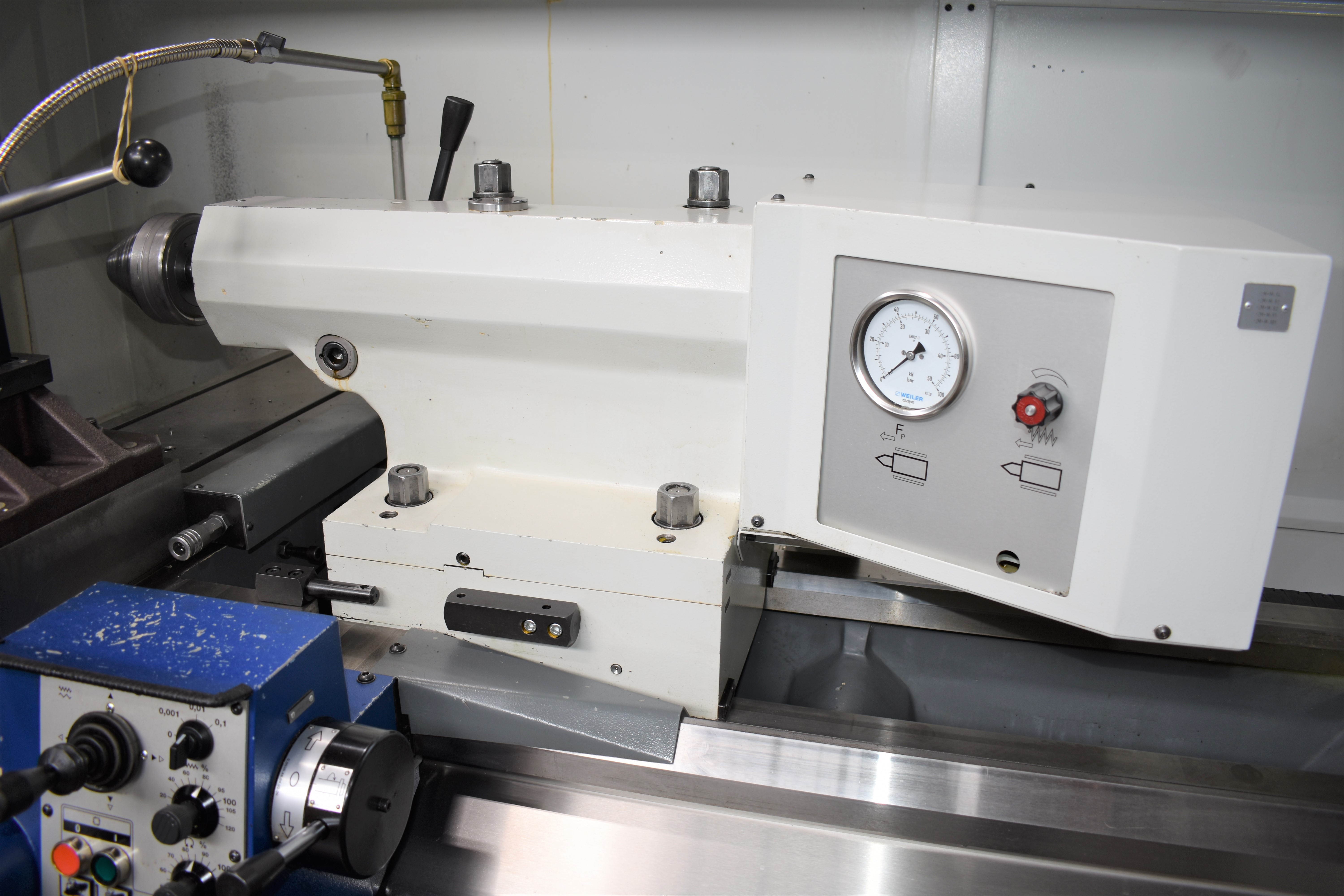

Style Tool Post, 25 kN RexRoth Hydraulic Tailstock Pressure System,

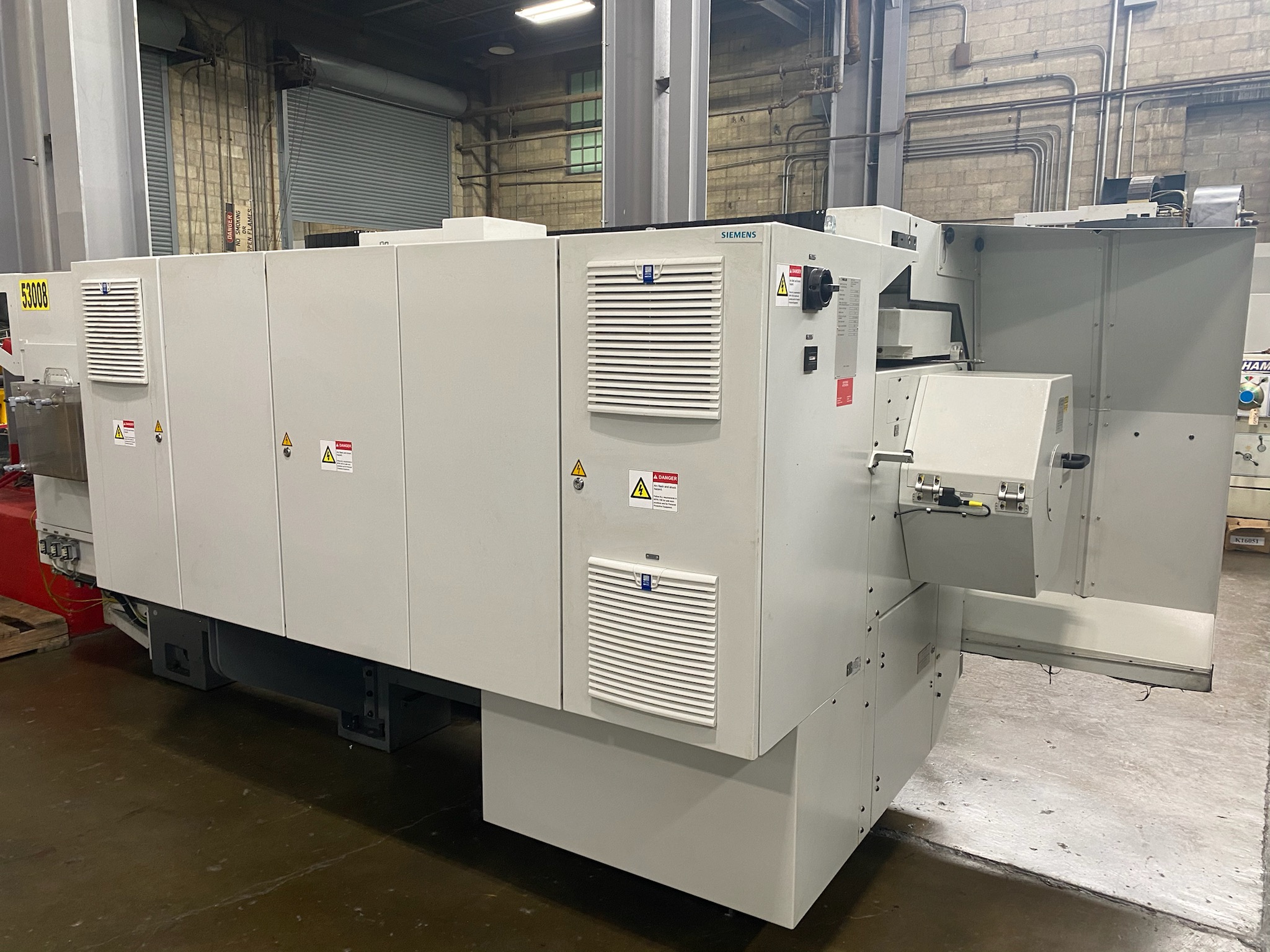

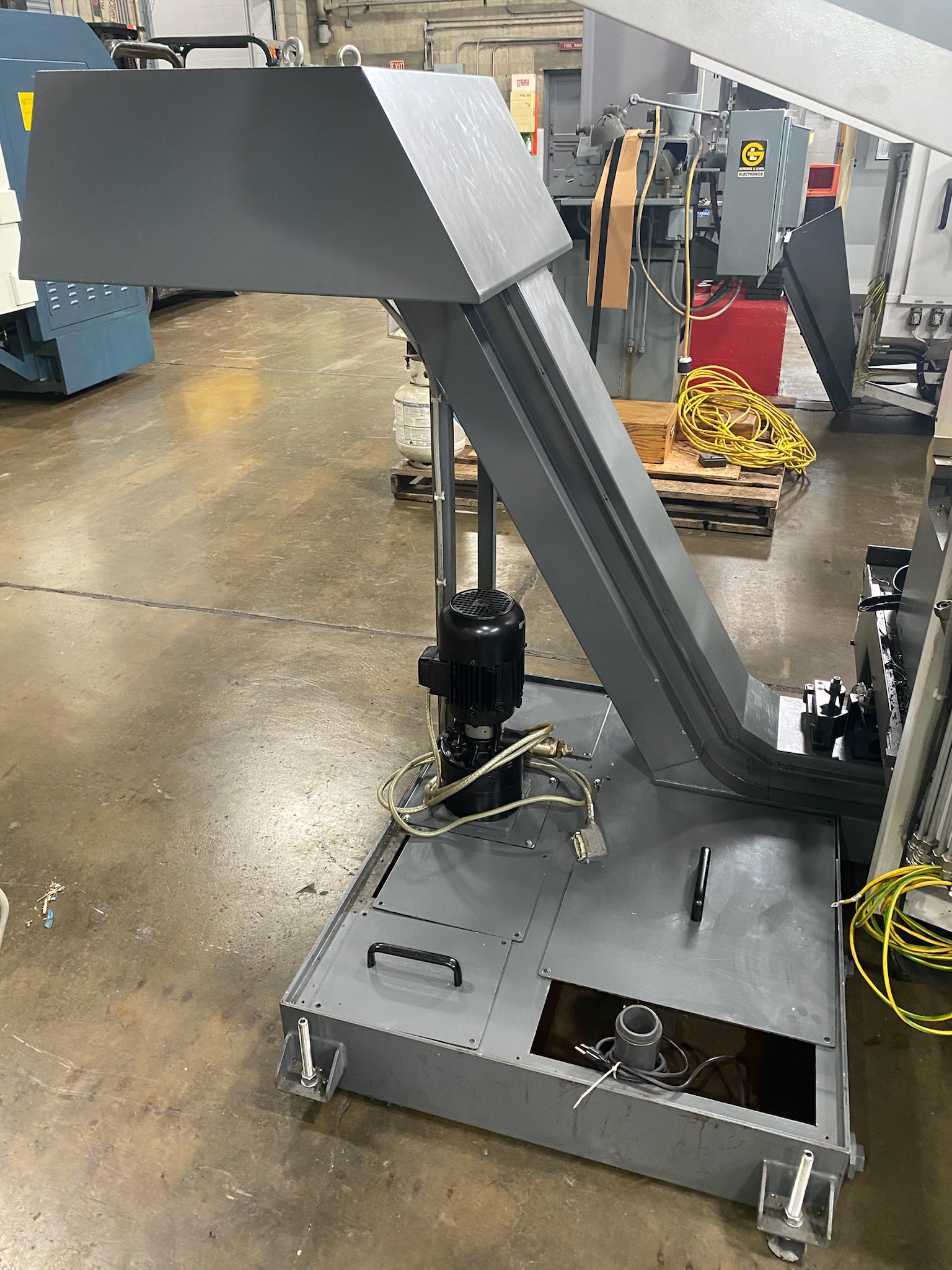

Automatic Central Lubrication System, Transformer, Chip Conveyor and
Coolant System.


CATALOG SPECIFICATIONS:
Max Swing Over Bed.................................................... 28.4"
Max Swing Over Cross Slide........................................ 16.9"
Max Distance Between Centers.................................... 78.7"
Spindle Bore.................................................................. 6.37"
Cross Travel (X-Axis).................................................... 16.1"
Longitudinal Travel (Z-Axis)........................................... 78.7"
Rapid Traverse Rate (X-Axis)........................................ 200 IPM
Rapid Traverse Rate (Z-Axis)........................................ 400 IPM
Metric Thread Range.................................................... .1-2000 mm
Inch Thread Range....................................................... 112-1/64 TPI
Spindle Nose................................................................. DIN 55027 (Size 15)
Spindle Speed Range (1 RPM Increments).................. 1-1800 RPM
Spindle Horsepower...................................................... 48 HP
Electrics......................................................................... 400/3/60
Approximate Machine Dimensions................................ 197" x 105"
Approximate Machine Height........................................ 77"
Approximate Machine Weight........................................ 15,000 LBS


CONDITION: Machine Appears to be in Excellent Condition!
                       Low Hours
