Mitsubishi EA30ME Sinker (RAM Type) Electric Discharge Machine

ACTUAL PHOTOS

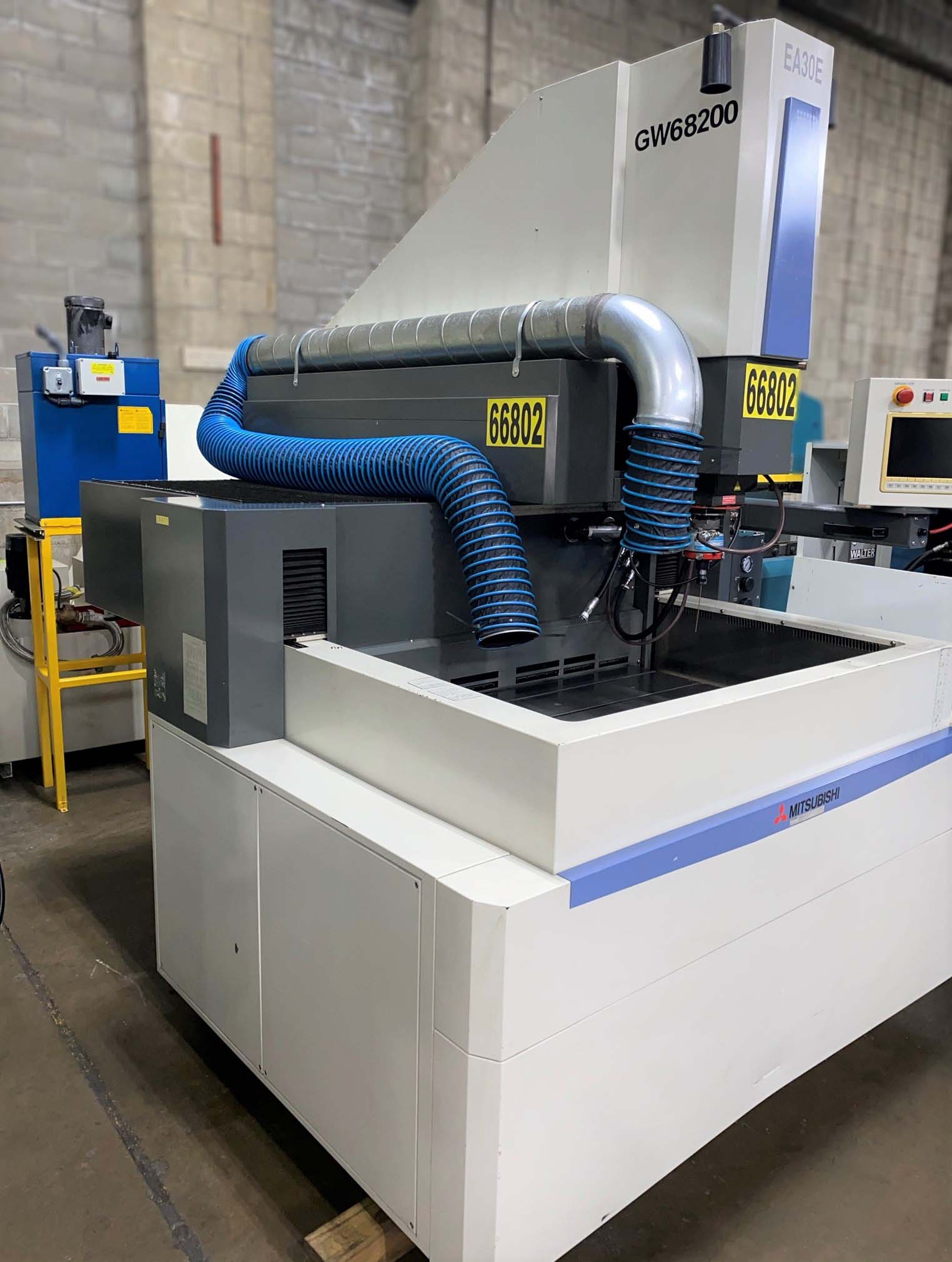

                            MITSUBISHI EA30ME SINKER (RAM Type) ELECTRIC DISCHARGE MACHINE
                                                      Model EA30ME, S/N 56ME3075, New 2007
                                                                                Stock # Q10509




EQUIPPED WITH:

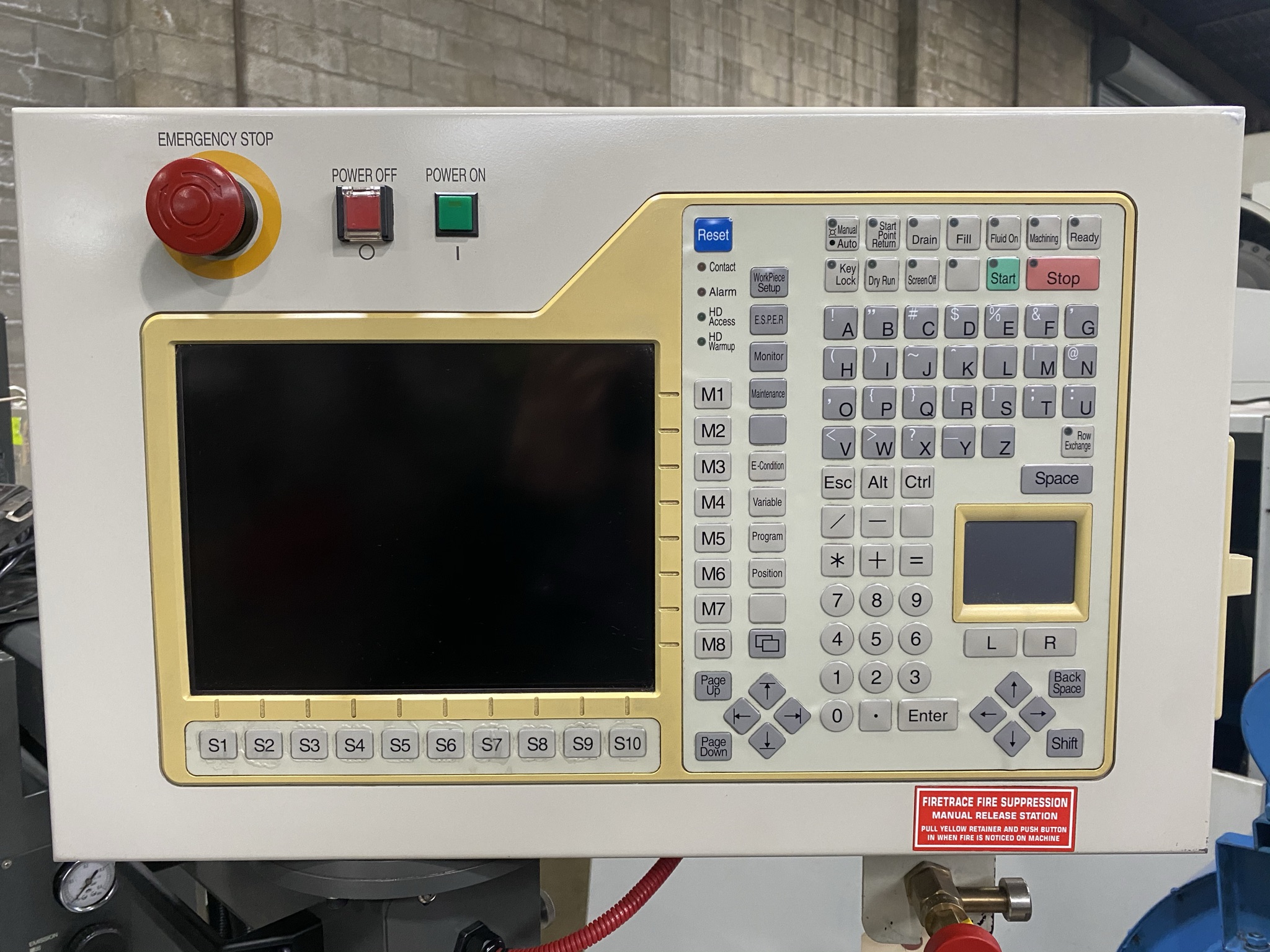

64-Bit Mitsubishi CNC Control, On-Board Programming, Pendant Control, Built-in
C-Axis, Max Work Piece Size 49.2" x 31.4" x 13.7", Max Work Piece Weight 4400 LBS,
Maximum Machining Amps Current Peak 120, Automatic Tool Changer, Automatic

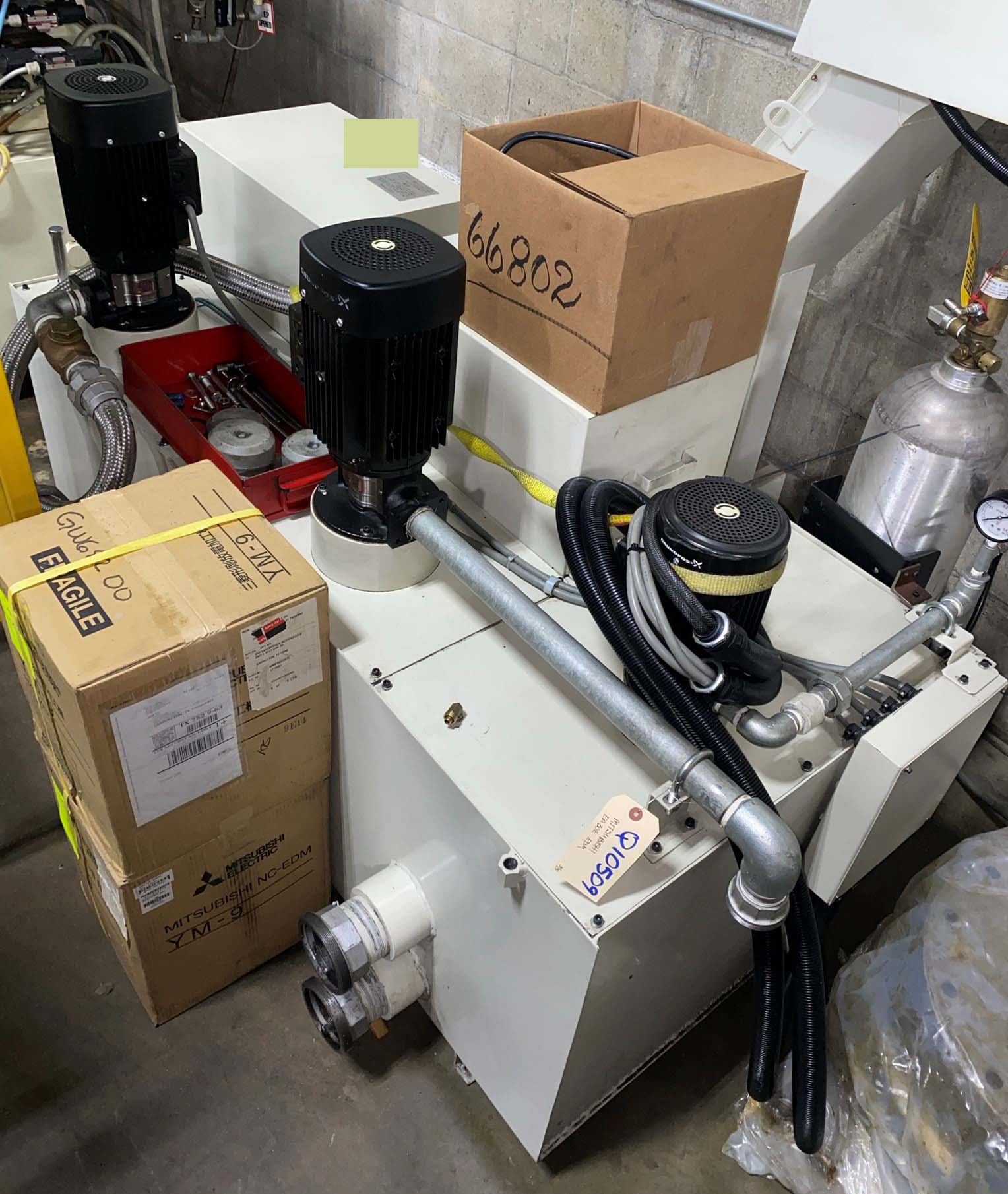

Vertical Front Door, Dielectric Fluid Cooler Included, Automatic Paper Filtration
System, Extra Filters Included, Transformer Included.


CATALOGUE SPECIFICATIONS:
Work Tank Size (Inside Dimensions)............................. 50.4" x 33.5" x 17.7"
Table Working Surface.................................................. 43.3" x 29.5"
Max Part Weight............................................................ 440 LBS
Dielectric Fluid Capacity ............................................... 210 GAL
Table Longitudinal Travel (X-Axis)................................. 27.6"
Table Cross Travel (Y-Axis)........................................... 19.7"
Head Vertical Travel....................................................... 9.85"
Distance Between Table Top & Electrode...................... 11.8"-25.6"
Distance Between Floor & Table Top............................. 33.3"
Max Electrode Weight.................................................... 440 LBS
Fluid Level Adjustment Range (From Top of Table)....... 7.5"-15.7"
Maximum Amperage...................................................... 32 AMPS
Approximate Machine Dimensions................................ 120" x 100"
Approximate Machine Height........................................ 98"
Approximate Machine Weight ...................................... 15,100 LBS


CONDITION: Machine Appears to be in Excellent Condition !
