Unisig USK50-BTA2000 CNC Knee Type Deep Hole Drill
Stock Number Q10475
|

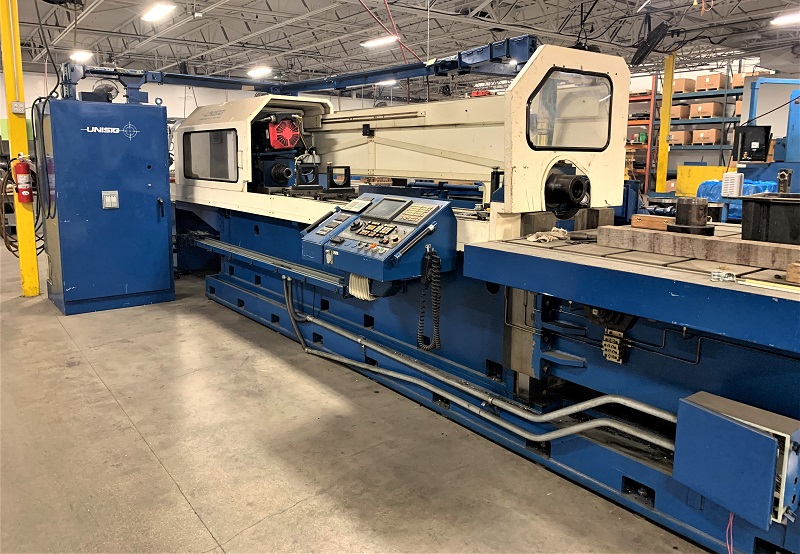

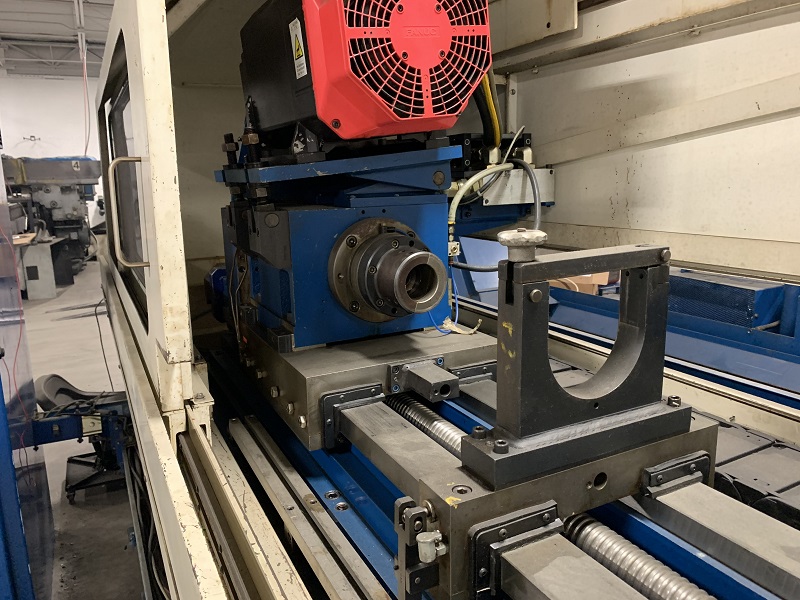

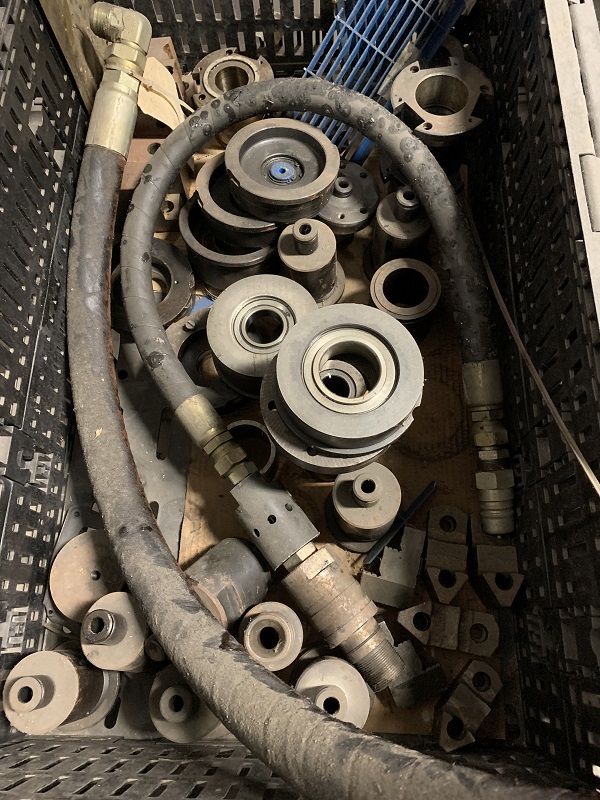

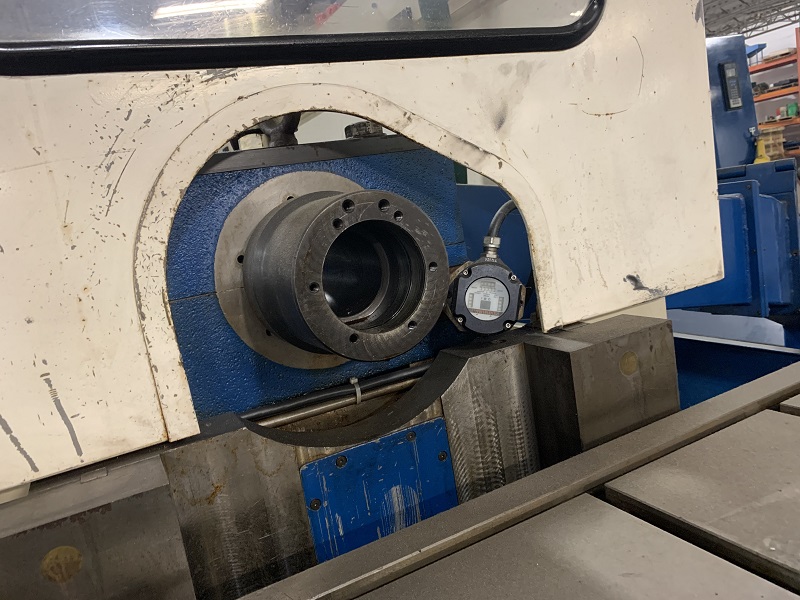

ACTUAL PHOTOS
UNISIG USK50-BTA2000 CNC KNEE TYPE DEEP HOLE DRILL
Model USK50-BTA2000, S/N 1689, New 2003
Stock # Q10475
EQUIPPED WITH:
Fanuc 18i CNC Control, Multiple Part Program Storage, RS-232 Port,
64" x 64" 2-Axis CNC Table, 3000 PSI High Pressure Coolant Unit,
65 gal/min Programmable Coolant Flow and Pressure, Chip Conveyor.
CATALOG SPECIFICATIONS:
Maximum BTA/STS Drilling Capacity...................... 2"
Maximum Drilling Capacity Counter Bore .............. 3"
Maximum Drilling Depth, (6) Whip Guides.............. 80"
Maximum Drilling Depth, No Whip Guides.............. 120"
Table Size................................................................ 64" x 64"
Table Cross Travel X-Axis....................................... 32"
Table Vertical Travel................................................ 12"
Table Weight Capacity............................................. 7,500 LBS
Spindle Drive........................................................... 30 HP
Spindle Speed......................................................... 3,500 RPM
Spindle Maximum Torque........................................ 207 FT-LBS
Drilling Feed Force.................................................. 3,300 LBS
Approximate Dimensions......................................... 390" x 120"
Approximate Height.................................................. 94"
Approximate Weight................................................. 32,000 LBS
CONDITION: Machine Appears to be in Excellent Condition !
|
|
|
