25" Cleereman Single Spindle Upright Layout Drill Press

Stock Number Q10429

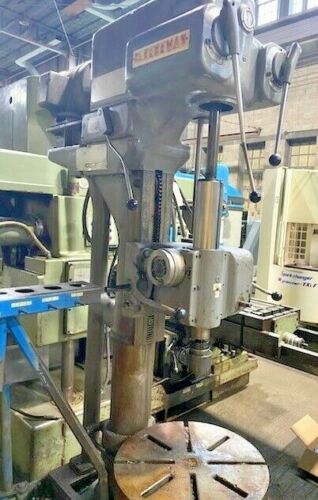

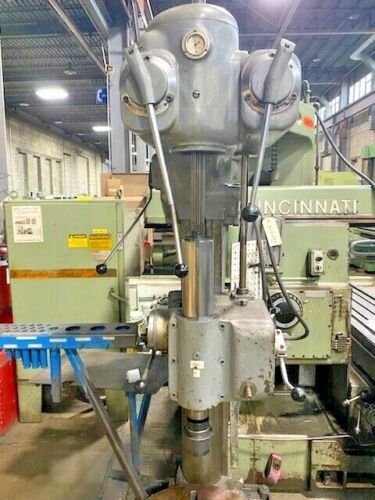

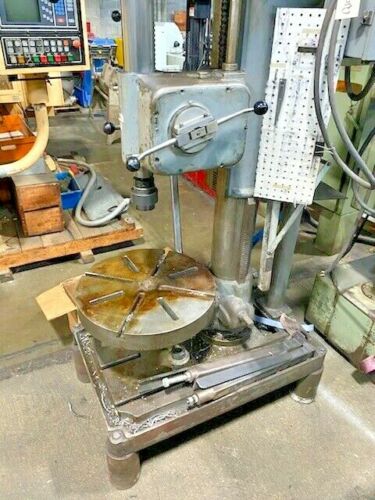

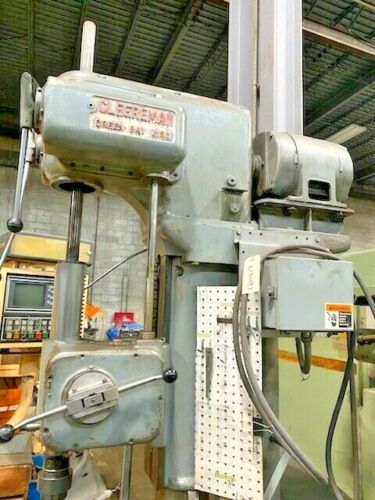

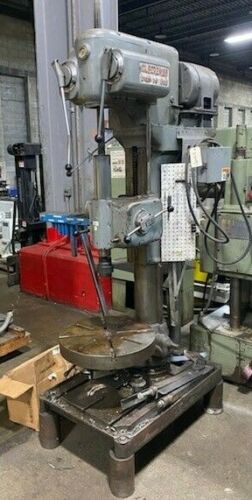

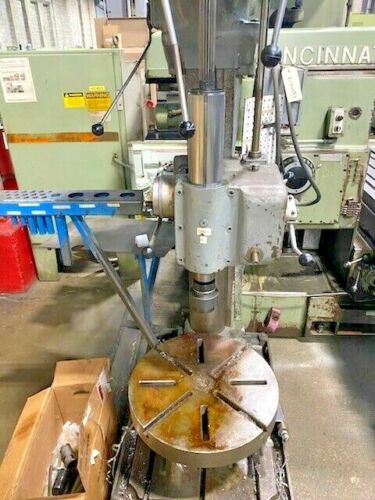

ACTUAL PHOTOS

                    25" CLEEREMAN SINGLE SPINDLE UPRIGHT LAYOUT DRILL
                                                   S/N 25C1514, New 1955
                                                          Stock # Q10429


EQUIPPED WITH:
Geared Head, Adjustable Sliding Head, Heavy Duty Box Column
& Base Castings, 9 Power Feeds and 12 Speeds, Tooling.

CATALOG SPECIFICATIONS:
Table Size (Round) ................................................. 23"
Travel of Spindle .................................................... 12"
Vertical Adjustment of Sliding Head ....................... 17"
Spindle Taper ......................................................... #4 MT
Center of Spindle to Front of Lower Column........... 14"
Max. Distance Spindle to Table Top........................ 25"
Min. Spindle to Table Top........................................ 13"
(9) Feeds, Per Revolution....................................... .005" to .045"
(12) Spindle Speeds................................................ 37 to 1500 RPM
Diameter of Quill ..................................................... 3-7/8"
Floor to Table Top ................................................... 33"
Motor ...................................................................... 7.5 HP
Electrics .................................................................. 220/440/3/60
Floor Space............................................................. 80" x 68" x 110"
Approximate Weight................................................ 5,000 LBS

CONDITION: Machine Appears to be in Very Good Condition.
