60 Ton Bruderer BSTA 60H High Speed 4 Post Punch Press

Stock Number Q10409

ACTUAL PHOTOS

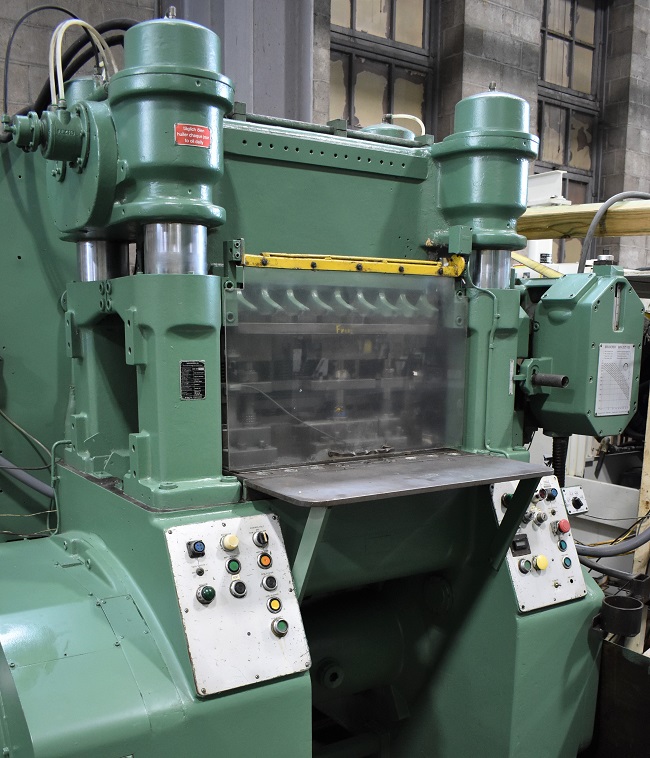

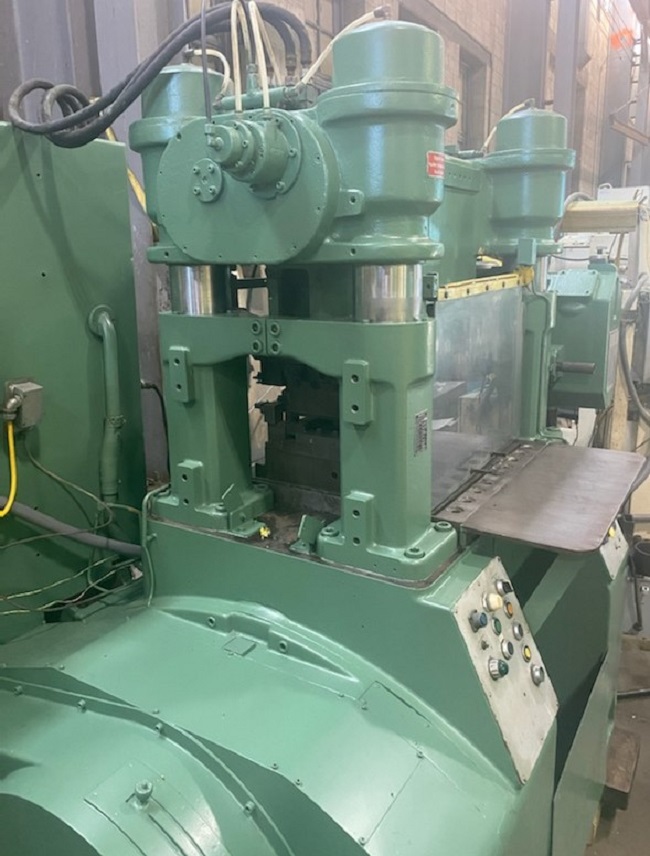

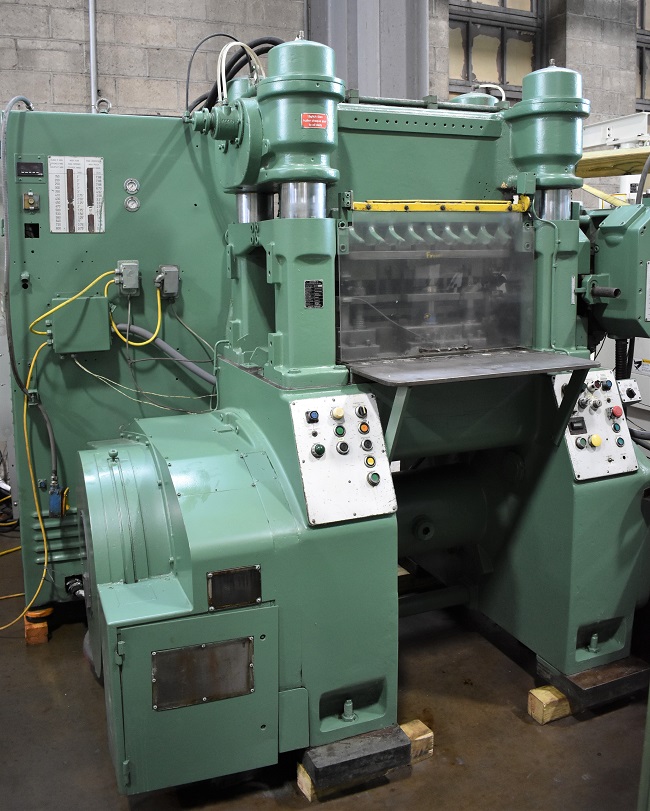

              60 TON BRUDERER BSTA 60H HIGH SPEED 4 POST PUNCH PRESS
                                       Model BSTA 60H, S/N 4179, New 1976
                                                          Stock# Q10409



EQUIPPED WITH:
Siemens PLC Control Unit to Control Feed Units, 60 Ton Max Pressing
Capacity, BBV 202/120 Strip Feed Unit Electrically Driven, Micron 3

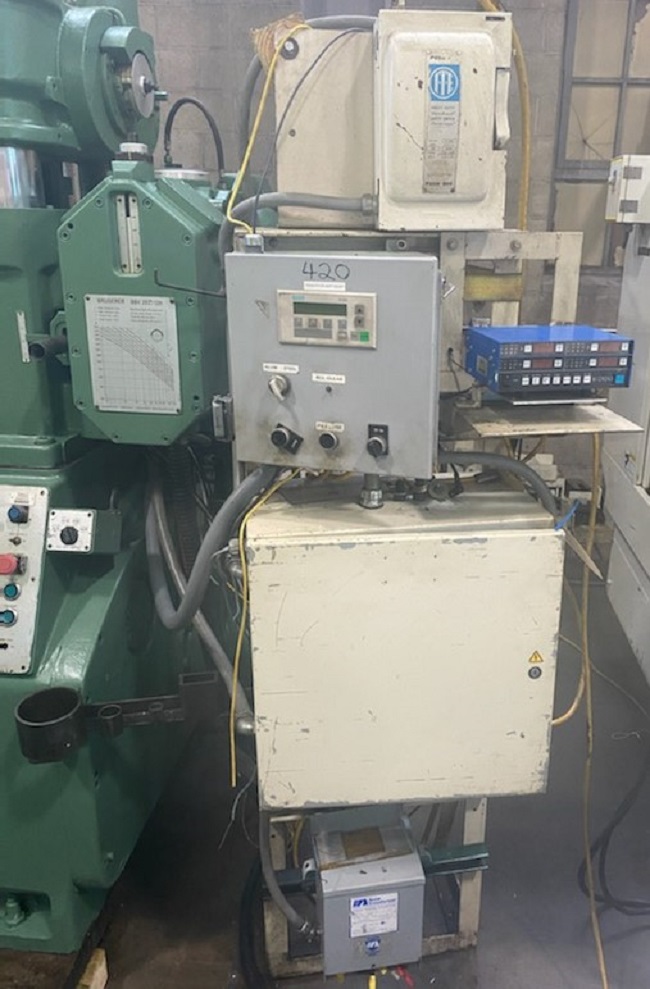

Slug Detector, Conveyor For Finished Parts, Electrical Cabinet.


CATALOG SPECIFICATIONS:
Capacity............................................................ 60 Ton
Number of Posts............................................... 4
Bed Size........................................................... 28-3/4"(L-R) x 30"(F-B)
Stroke............................................................... 3/4" to 3" Adjustable
Strokes Per Minute........................................... 150 to 800
Shut Height, Ram LDC, Lower Dead Center:
           Stroke at 3/4"......................................... 8.5" to 11.5"
           Stroke at 3"............................................ 7.25" to 10.5"
Slide Face Area................................................ 27.5" L-R x 18" F-B
Distance Between Pillars................................. 31.5" L-R x 13.4" F-B
Max. Material Width (of BBV Feed )................ 11.75"
Max. Material Feed Index (@ 650 SPM )......... 7.65"
Approx Machine Size (L x W x H).................... 106" x 90" x 88"
Approx Machine Weight................................... 19,000 LBS


CONDITION: Appears to be in Excellent Condition.
