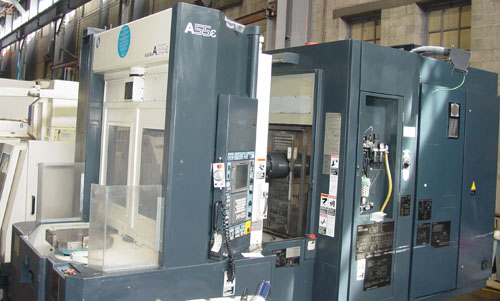

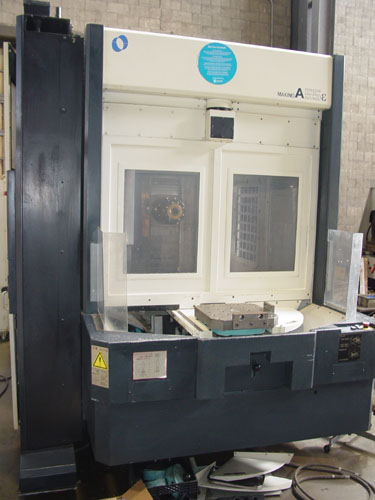

EQUIPPED WITH:

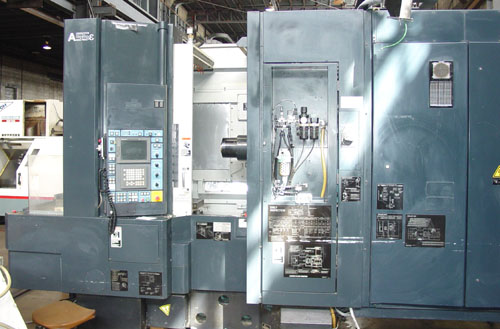

Fanuc Professional 3 CNC Control w/Color CRT (Fanuc 16i), Multi-Part

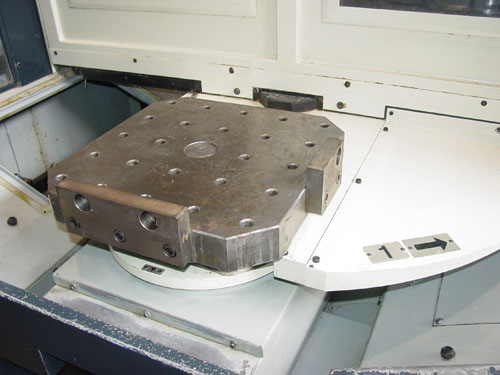

Program Storage, (2) 15.7" x 15.7" Pallets Full Contouring 4th Axis

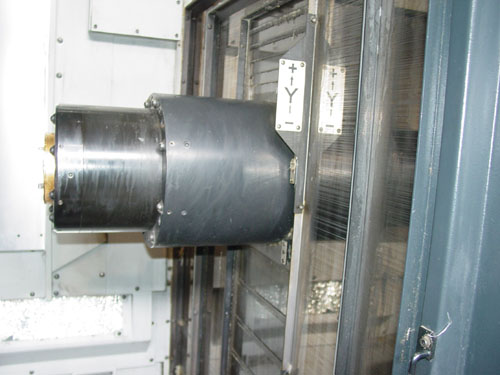

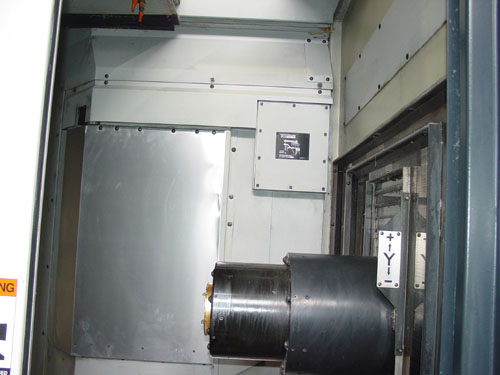

Pallets, (360,000 Positions) Heavy Duty 14,000 RPM Cat-40 Spindle, 60
Station Automatic Tool Changer, Tool Life Monitor, Spindle Load
Monitor, Rigid Tapping, Coolant System.


CATALOGUE SPECIFICATIONS:
Longitudinal Travel (X-Axis) ........................... 22.05"
Vertical Travel (Y-Axis) ............................... 22.05"
Spindle Travel (Z-Axis) ................................ 23.6"
Pallet Dimensions ...................................... 15.7"x15.7"
Maximum Pallet Load .................................... 1100 LBS
Number of Pallets ...................................... 2
Number of Index Positions............................... 360,000
Feed Rate, All Axes .................................... 3307 IPM
Rapid Traverse, All Axes ............................... 3307 IPM
Spindle Horsepower...................................... 25 HP
Spindle Speed Range..................................... 50 - 14000 RPM
Spindle Taper .......................................... Cat-40
Number of Tool Stations ................................ 60
Approximate Machine Dimensions ......................... 183" x 75"
Approximate Machine Height.............................. 111"
Approximate Machine Weight.............................. 18,900 LBS


CONDITION: Machine is from a Large Well Maintained Shop! Ran Plastic
Only and Appears to be in Excellent Condition !
