Stock Number P12293

DAEWOO TT2500SY DUAL SPINDLE, DUAL TURRET CNC TURNING CENTER w/ Live Tooling, and Y-Axis
Model TT2500SY, New 2005


EQUIPPED WITH:

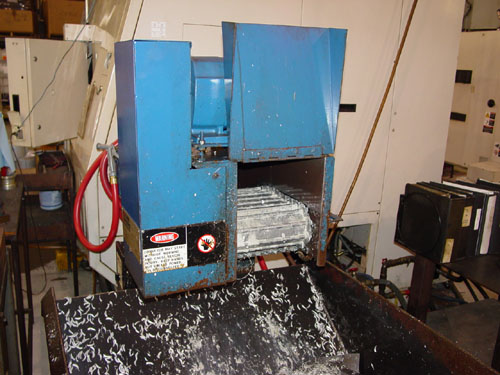

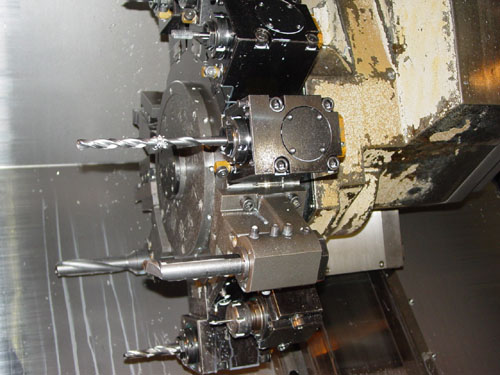

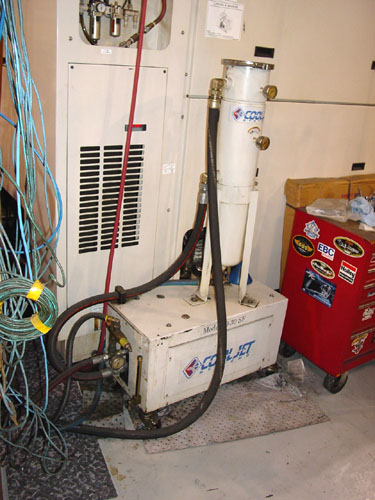

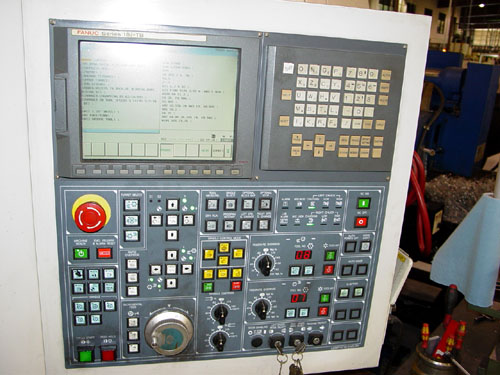

Fanuc 18iTB CNC Control, (2) 25 HP Opposed Spindles, (2) 12 Position Turrets, (2) 10" 3-Jaw Power Chucks, Live Tooling in Both Turrets, Y-Axis, Full Contouring C-Axis on Both Spindles, Chip Conveyor, Large Tooling Package, Coolant System.

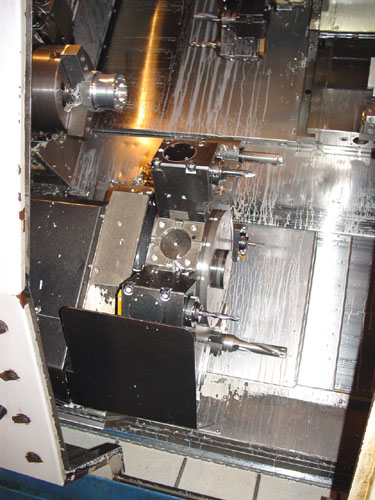

NOTE: The Daewoo TT Series Turning Center Features Two Inline Opposing Spindles and Two Tool Turrets. This Machine is Designed for Completing First and Second Turning Operations in One Actual Loading. A Workpiece May be Loaded to the First Spindle, Then Turned, Then Automatically and Internally Transferred to the Second Spindle for Second Operation Turning.

CATALOGUE SPECIFICATIONS:
Max Swing Over Bed............................... 31.5"
Maximum Turning Diameter (Upper Turret).......... 15.35"
Maximum Turning Diameter (Lower Turret).......... 11.81"
Maximum Turning Length........................... 29.13"
Standard Chuck Size.............................. 10"
Cross Travel Turret 1 (X1-Axis).................. 10.04"
Longitudinal Travel Turret 1 (Z1-Axis)........... 31.5"
Y-Axis Travel.................................... 4.72"
Cross Travel Turret 2 (X2-Axis).................. 7.48"
Longitudinal Travel Headstock (Z2-Axis).......... 35.43"
C-Axis (Both Spindles)........................... .001 Degrees
Rapid Traverse Rate (X1, X2 Axes)................ 787 IPM
Rapid Traverse Rate (Z1, Z2 Axes)................ 945 IPM
Rapid Traverse Rate (Y-Axis)..................... 295 IPM
Number of Turrets................................ 2
Tool Positions................................... 12 each turret
Spindle Bore..................................... 3.54"
Maximum Bar Capacity............................. 3"
Spindle Nose..................................... A2-8
Spindle Speed Range.............................. 30-3500 RPM
Spindle Horsepower............................... 25 HP
Rotating Tool Maximum Speed (Both Turrets)....... 4000 RPM
Rotating Tool Horsepower (Both Turrets).......... 7.5 HP
Approximate Machine Dimensions................... 165" x 87"
Approximate Machine Height....................... 105"
Approximate Machine Weight....................... 26,000 LBS

CONDITION: Machine has Cut only Aluminum and Appears to be in Excellent Condition!
