ACTUAL PHOTOS

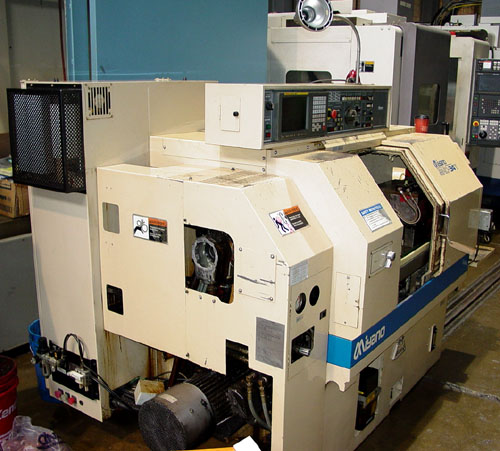

MIYANO BND-34T CNC TURNING CENTER w/ LIVE TOOLING
Model BND-34T, S/N BD50027T, New 1997

EQUIPPED WITH:
Fanuc 18T CNC Control with CRT, Live Tooling, RS232 Port for DNC

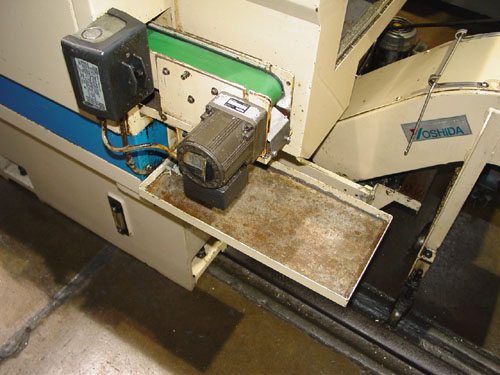

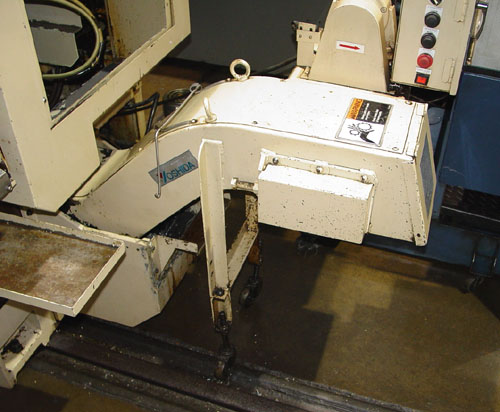

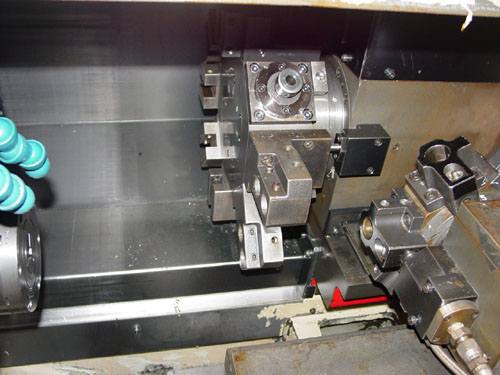

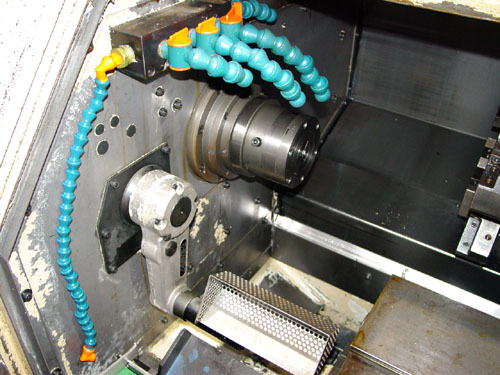

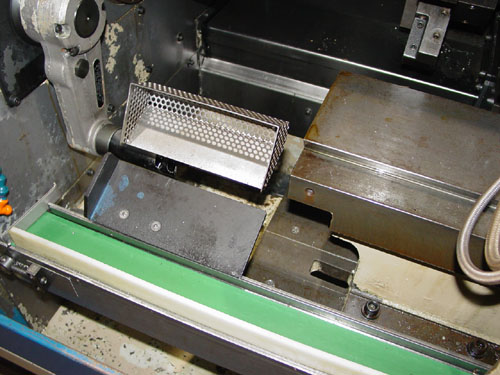

System, Collet Chuck, 5" 3-Jaw Chuck, Barfeed Interface, 8 Station Turret, 6 Station Programmable End Working Turret Provides 3 Axis Simultaneous Cutting Capability, Programmable Part Catcher w/ Parts Conveyor, Heavy Duty Slant Bed Construction, Chip Conveyor, Tooling Package, Coolant System.

CATALOGUE SPECIFICATIONS:

Max Bar Capacity.................................. 1.312"
Max Swing over the Cross Slide.................... 10.62"
Max Work Length for Bar Work...................... 7"
Max Work Length for Chuck Work.................... 3.15"
Max Turning Diameter.............................. 4.75"
Cross Travel (X-Axis)............................. 4"
Longitudinal Travel (Z-Axis)...................... 11.05"
Sub Turret Stroke (B-Axis)........................ 9"
Number of Turrets................................. 2
Turret Positions Main Turret...................... 8
Turret Positions Sub (End) Turret................. 6
Spindle Speed Range............................... 170-5000 RPM
Spindle Drive Motor............................... 7.5 HP
Live Tool Spindle Speed Range..................... 133-4000 RPM
Electrics......................................... 230/3/60
Approximate Machine Dimension(w/o Barfeeder)...... 59" x 100"
Approximate Machine Height........................ 67"
Approximate Machine Weight........................ 6,200 LBS

CONDITION: Machine Appears to be in Excellent Condition !
