32" x 120" Birmingham DL32120 Engine Lathe

Stock Number K16051

ACTUAL PHOTOS

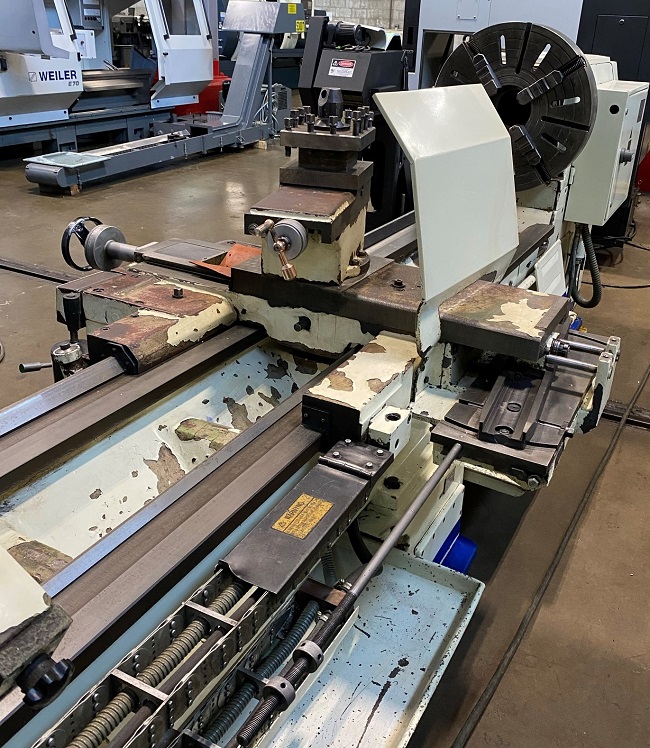

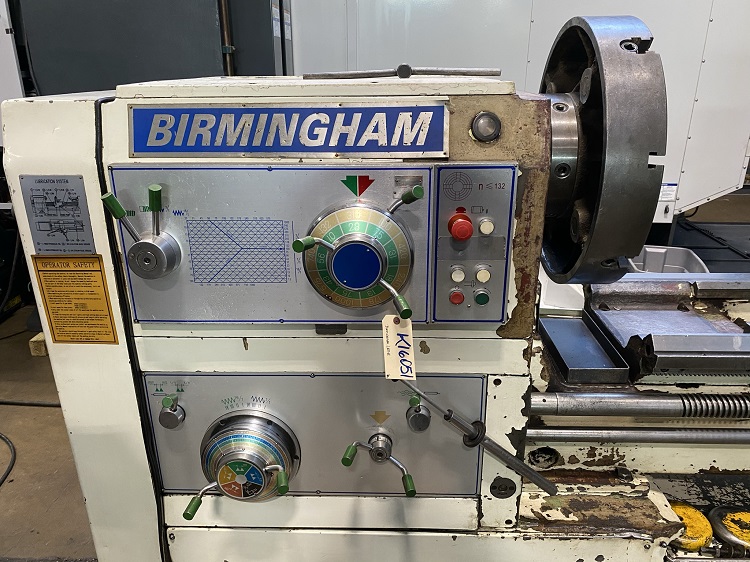

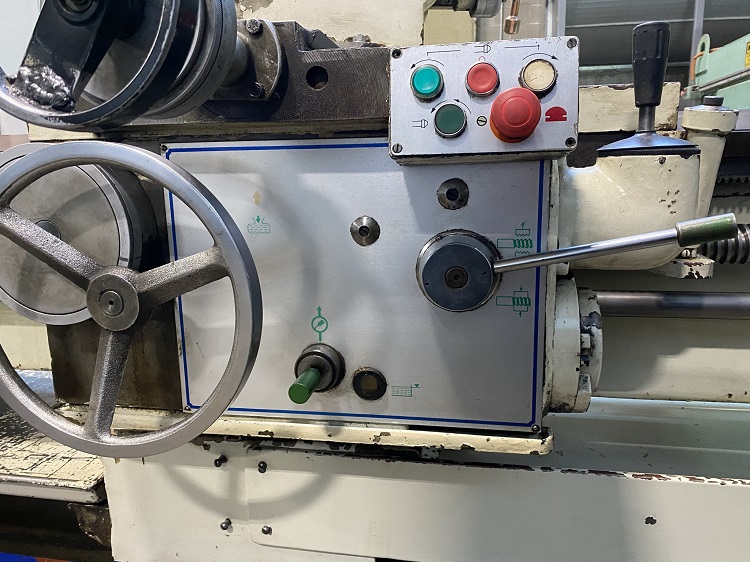

                                   32" x 120" BIRMINGHAM DL32120 ENGINE LATHE
                                              Model DL32120, S/N 00174, New 4/2008
                                                                Stock # K16051


EQUIPPED WITH:
25" 4-Jaw Chuck, Taper Attachment, 12" Drive Plate,

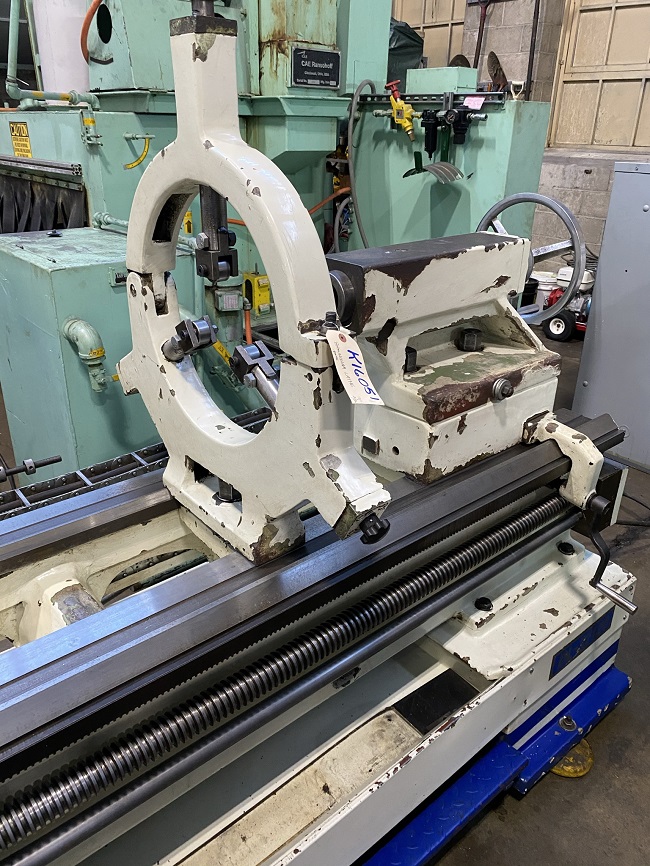

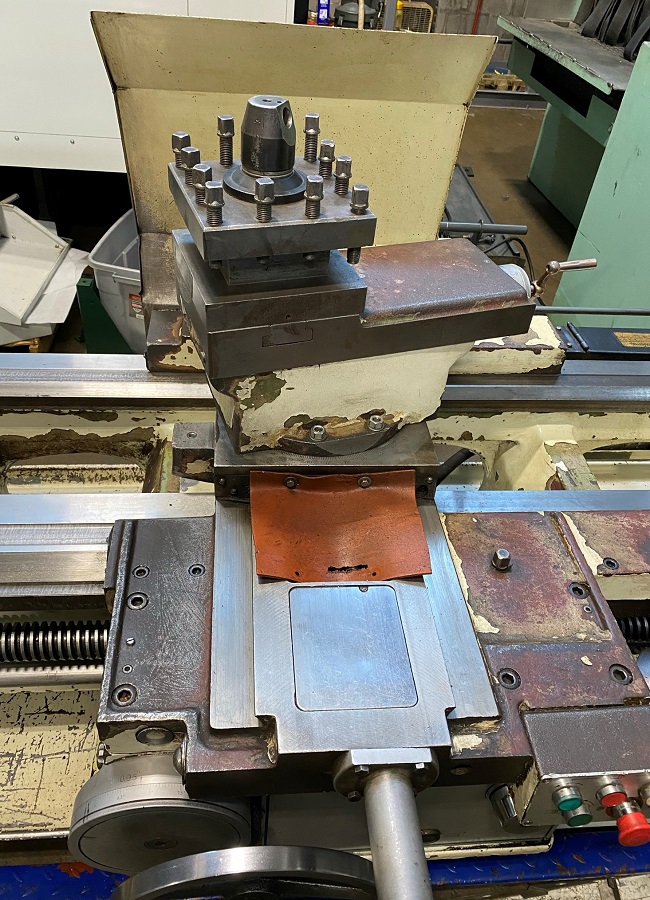

16" Steady Rest, Gap, Four Way Toolpost, Thread Dial,
Coolant System, Worklight Foot Brake, Operations and
Parts manual.


CATALOG SPECIFICATIONS:
Max Swing Over Bed...................................... 32"
Max Swing Over Cross Slide.......................... 20.5"
Max Swing Over Gap...................................... 39"
Max Distance Between Centers...................... 120"

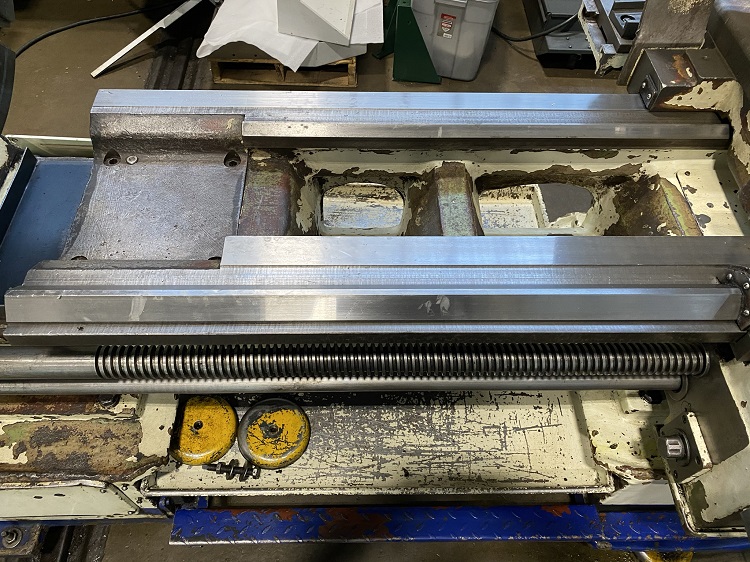

Width of Bed.................................................... 21-21/32"
Chuck Size ..................................................... 25"
Cross Slide Travel........................................... 20-7/8"
Spindle Nose................................................... D1-11
Spindle Bore.................................................... 5-1/8"
Taper of Spindle Bore...................................... MT#5
# of Spindle Speeds........................................ 18
Spindle Speeds Range.................................... 7.5 to 1000 RPM
# of Threads - Inch.......................................... 73
Range of Threads - Inch.................................. 1/16 to 32 TPI
# of Threads - Metric........................................ 57
Range of Threads - Metric............................... 1.0 to 256 mm
# of Feeds........................................................ 64
Cross Feeds Range......................................... .002 to .96 IPR
Longitudinal Feeds Range............................... .001 to .48 IPR
Tailstock Spindle Travel.................................... 9-1/2"
Taper of Tailstock Center.................................. MT#5
Tailstock Spindle Diameter............................... 3-15/16"
Main Spindle Motor.......................................... 20 HP
Electrics........................................................... 220/440/3/60
Approximate Machine Dimensions.................. 220" x 58"
Approximate Machine Height........................... 75"
Approximate Machine Weight.......................... 11,500 LBS

CONDITION: Machine Appears to be in Very Good Condition.
