Flow CNC Abrasive Water Jet Cutting System

Stock # K16015

6' x 10' Flow Water Jet, Flow CNC Water Jet Cutting Machine, 60,000 psi Water Jet, Waterjet

ACTUAL PHOTOS

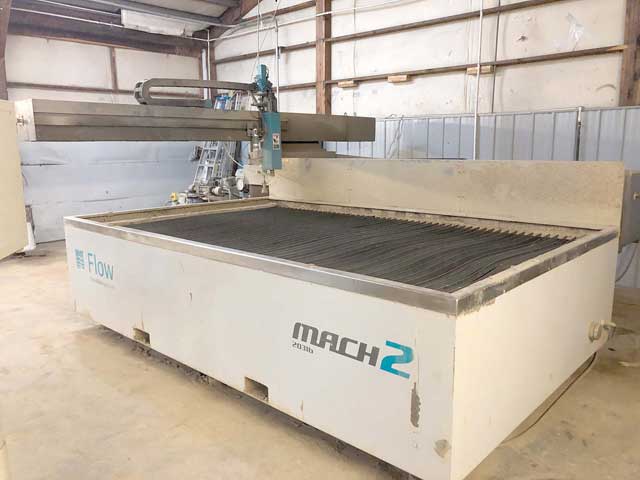

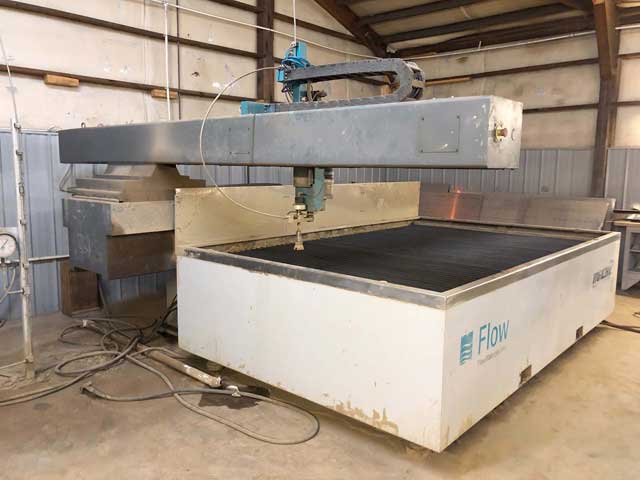

                                        6' x 10' FLOW ABRASIVE WATER JET CUTTING SYSTEM
                                                              Model Mach2-2031b, New 2011
                                                                          Stock # K16015

EQUIPPED WITH:

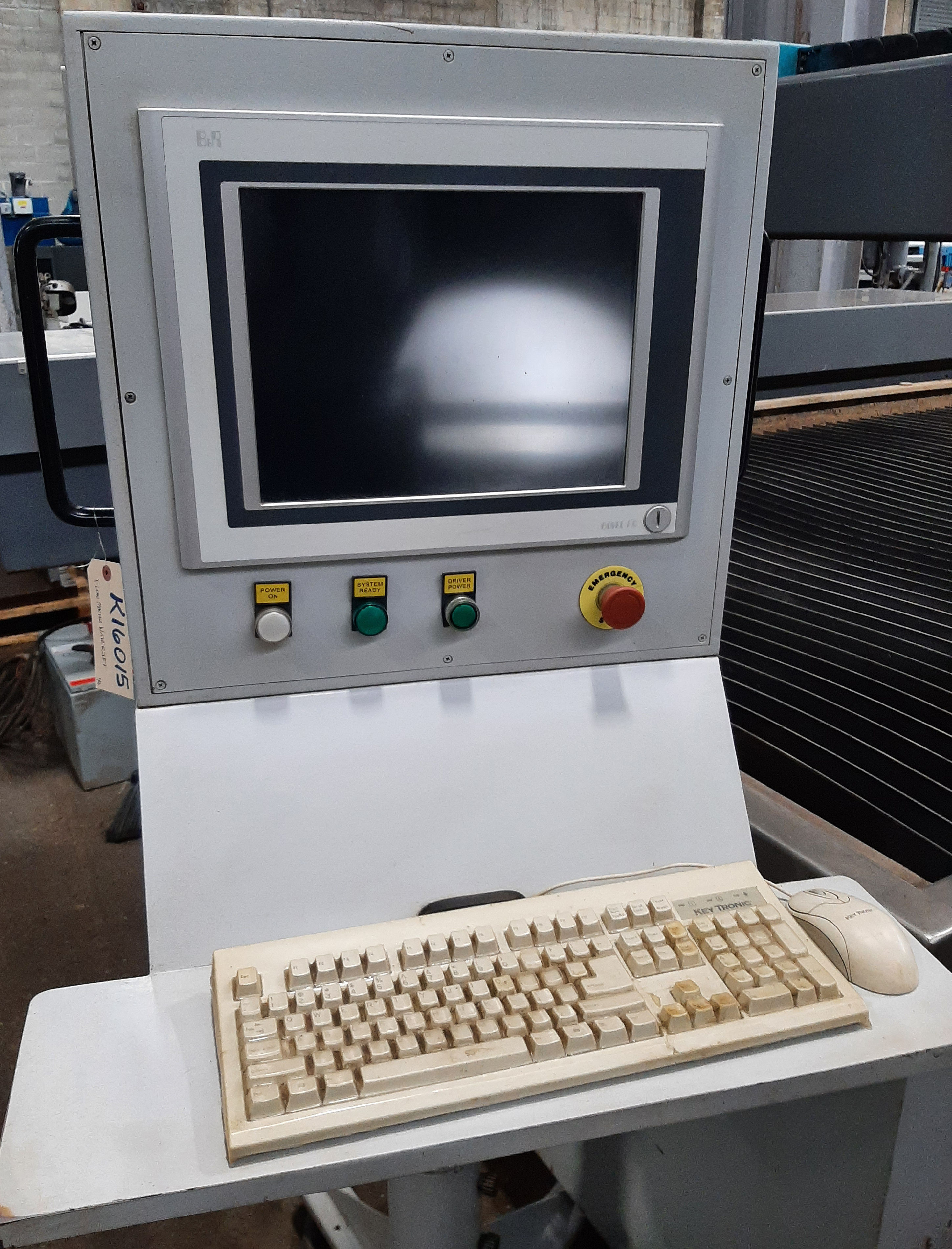

FlowMaster PC-Based CNC Control System with Color CRT, RS-232 Port for
DNC System, Keyboard, CD Drive, Paser 3 Cutting Head,
Flow ESL 30 HP 60,000 PSI Intensifier Pump, 6' x 10' Integrated
Flying Bridge Design, 6' x 10' Catch Tank, 500 LB Abrasive Bulk
Transfer Hopper.

CATALOG SPECIFICATIONS:
Max Work Capacity..................................................... 6' x 10'
Cross Travel (Y-Axis).................................................. 78"
Longitudinal Travel (X-Axis)........................................ 122"
Vertical Travel (Z-Axis)................................................ 8"
Max Contour Cutting Speed........................................ 300 IPM
Rapid Traverse Rate .................................................. 500 IPM
Cutting Pressure.......................................................... 60,000 PSI
Pump........................................................................... 30 HP
Factory Rated Accuracy.............................................. +/- .003
Factory Rated Repeatability........................................ +/- .002
Electrics....................................................................... 230/3/60
Approximate Machine Dimensions.............................. 176" x 164"
Approximate Machine Height....................................... 85"
Approximate Machine Weight (Empty)........................ 12,900 LBS

CONDITION: Appears to be in Excellent Condition !!
