26" x 96" Cincinnati Milacron Universal Cylindrical Grinder

Stock Number K15993

ACTUAL PHOTOS

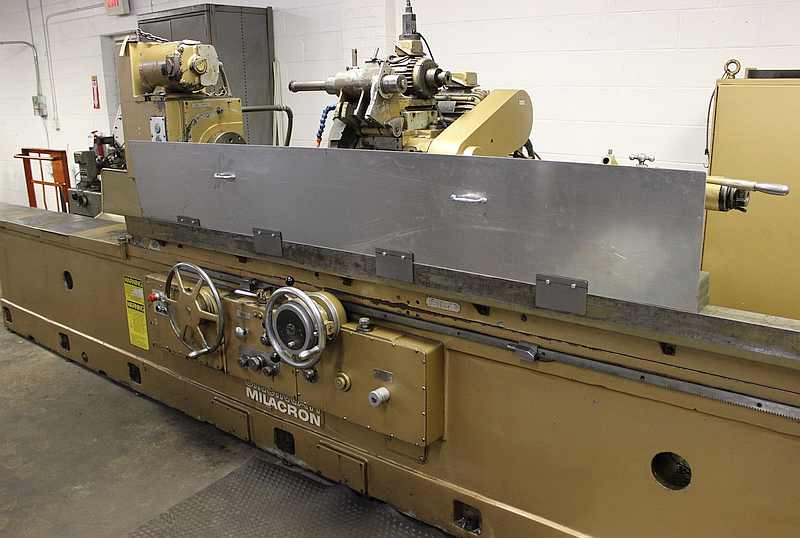

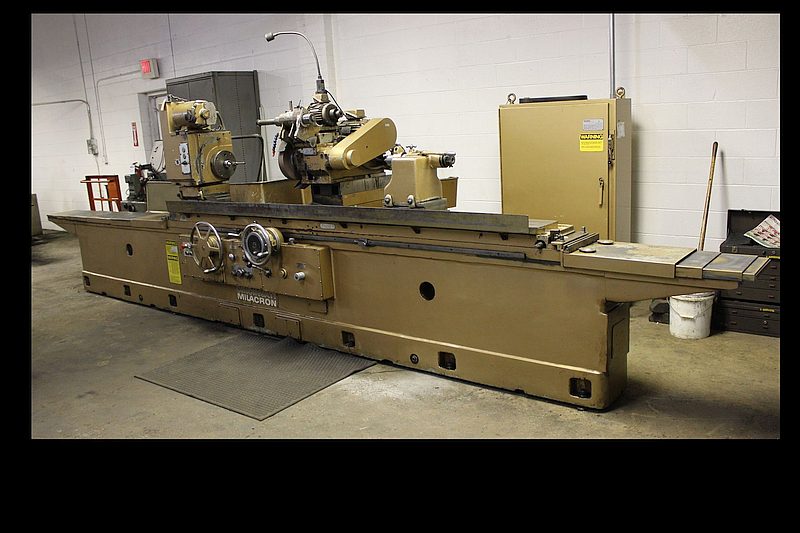

               26" x 96" CINCINNATI MILACRON UNIVERSAL CYLINDRICAL GRINDER
                                                    Model DE, New 1979
                                                          Stock # K15993


EQUIPPED WITH:

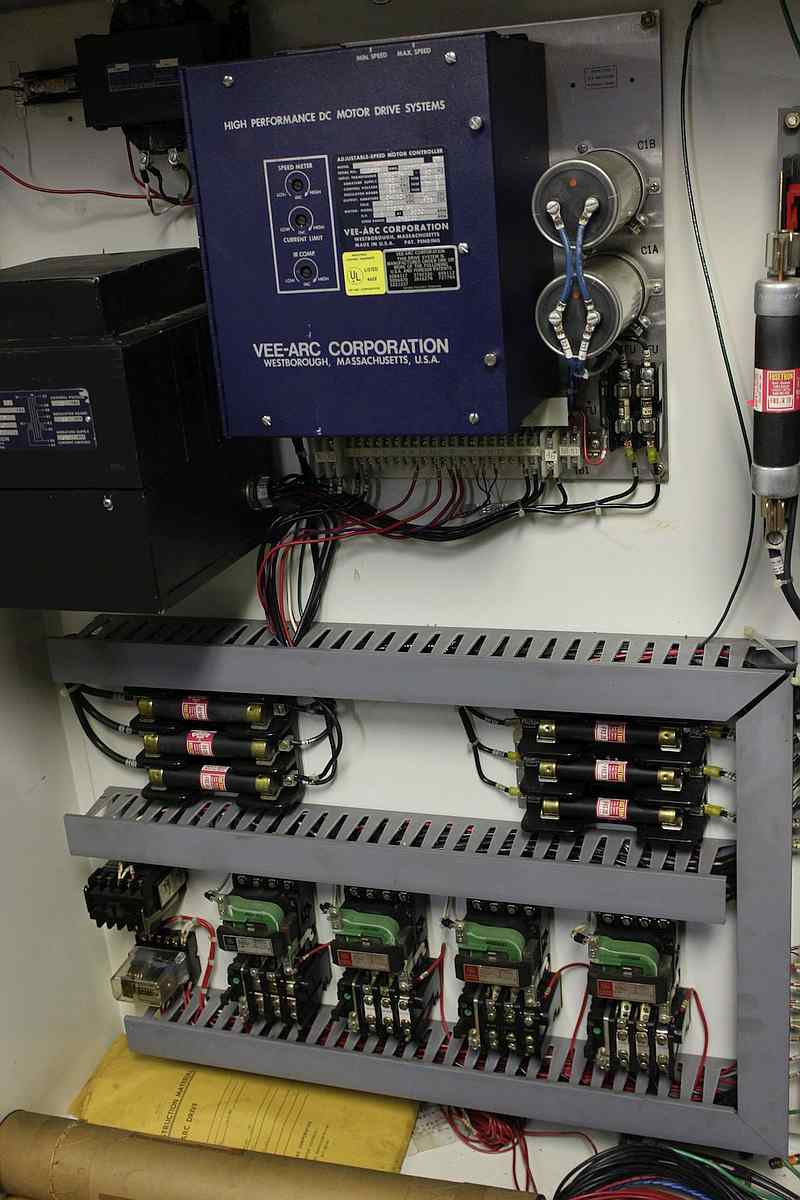

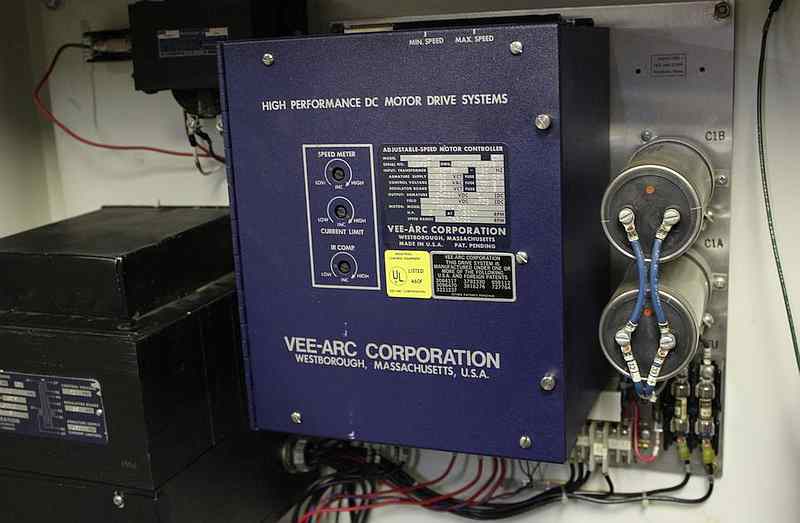

Vee Arc High Performance Variable Motor Drive Systems, Swing Down

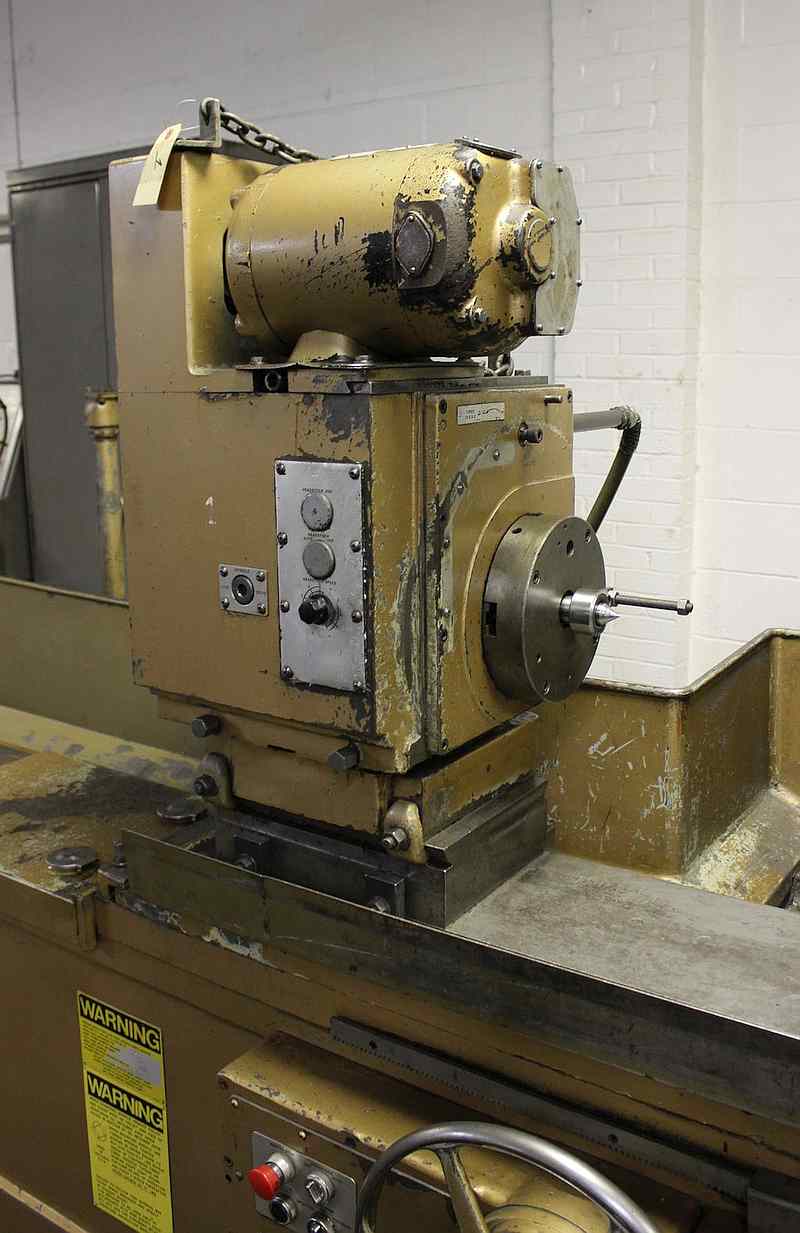

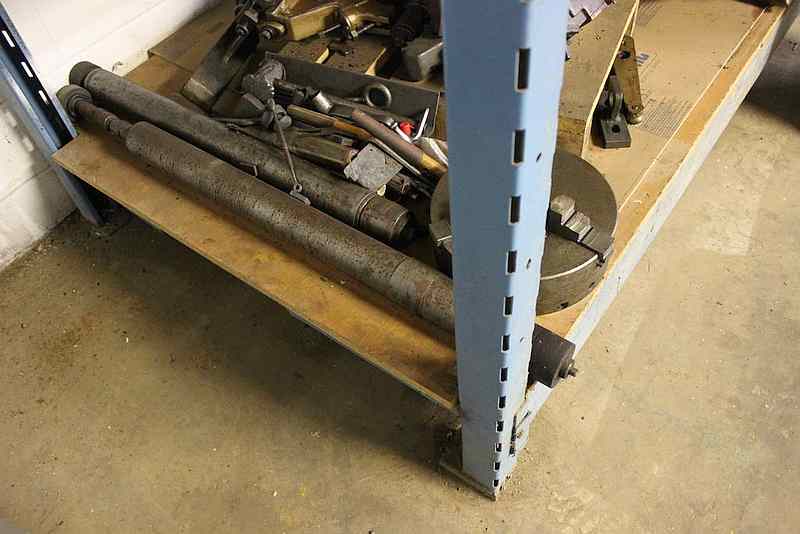

Internal Grinding Attachment, Long Reach Internal Spindles, Variety
of Internal Grinding Quills, Live / Dead / Fully Variable Workhead,

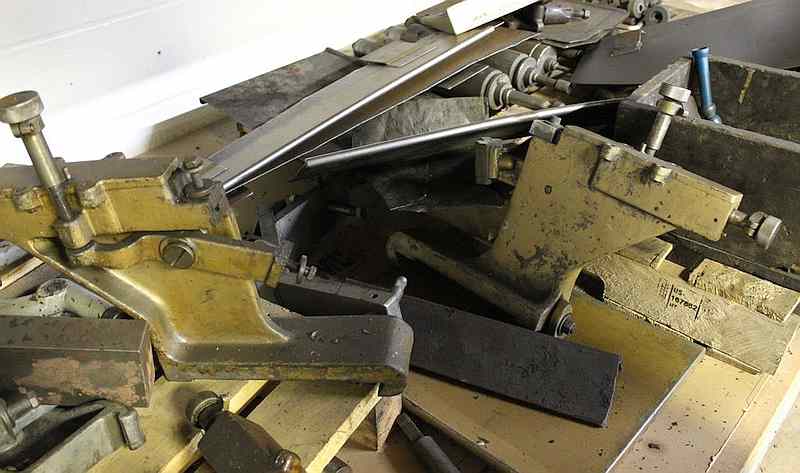

Plunge and Dual Terry Grinding Cycles, 3 Work Rest,
Stainless Splash Guard.

SPECIFICATIONS:
Max. Diameter Ground................................................................ 26"
Max. Distance Between Centers................................................. 96"

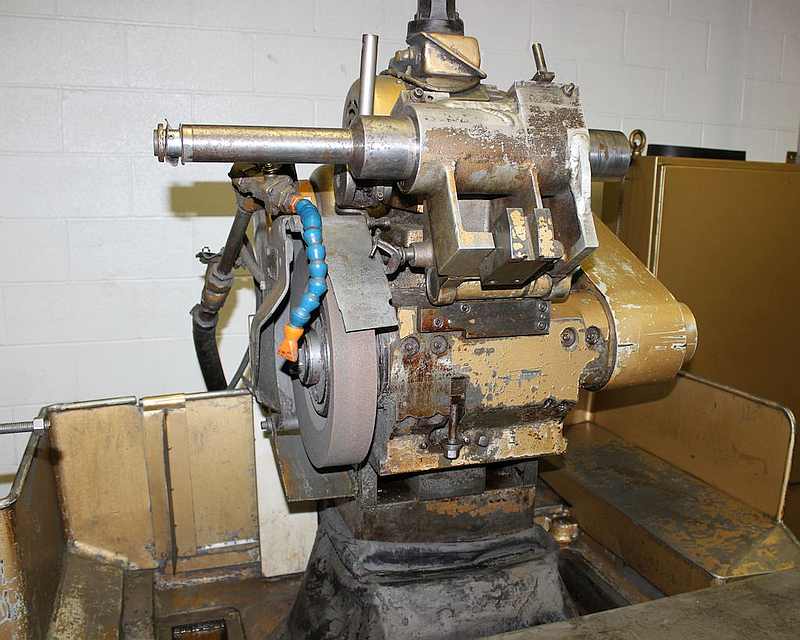

Grinding Wheelhead:
     Swivel Range - Lower Swivel, Right & Left............................ 90 Degrees
     Upper Swivel, Right & Left..................................................... 30 Degrees
     Grinding Wheels Regularly Supplied
       (Diameter x Face x Hole)..................................................... 14" x 1 1/2" x 5"
Cross Feed:
     Automatic Infeed at Table Reversal
       (Diameter Reduction)........................................................... 0.0002" - 0.005"
     Pickfeed Selections: Right End Only, Left End Only.............. Yes
     Right and Left Ends............................................................... Yes
     Wheelhead Movement Per Turn of Crossfeed Handwheel.... Low 0.050"
                                                                                                     High 0.200"
     Minimum Infeed Increment in Terms of
       Diameter Reduction............................................................. 0.000050"
Headstock & Footstock:
     Taper Hole in Headstock and Footstock Spindles................. No. 10 B & S
     Range of Work Rotation Speeds
       (+/- 10% Allowable Inf Var).................................................. 25-200 RPM
Headstock Swivel:
     Toward Wheelhead................................................................ 90 Degrees
     Away from Wheelhead........................................................... 30 Degrees
Table:
     Number of Table Traverse Speeds......................................... 3 - 220 IPM
     Minimum Movement Required to Reverse Table.................... 3/32"
     Accuracy of Table Reversal at All Traverse Rates.................. 0.004"
     Independent Right-Hand & Left-Hand Tarry Adjustment......... 0-5 Seconds
     Mechanical Hand Table Traverse per Rev of Handwheel....... Rapid 15/16"
                                                                                                      Slow. 0.2"
Power Requirements:
     Wheelhead Motor.................................................................... 5 HP
     Hydraulic Pump Motor............................................................. 1 1/2 HP
     Headstock Motor..................................................................... 1 HP
     Internal Grinding Attachment Motor......................................... 2 HP
     Cutting Fluid Pump Motor........................................................ 1/4 HP
Height of Machine......................................................................... 74"
Floor to Spindle Center................................................................. 49"
Max. Distance Between Centers................................................... 96"
Overall Length............................................................................... 148"

Under Power for Inspection by Appointment.
