31" Big Bore Pipe Chuck with 15" Thru Hole

ACTUAL PHOTOS

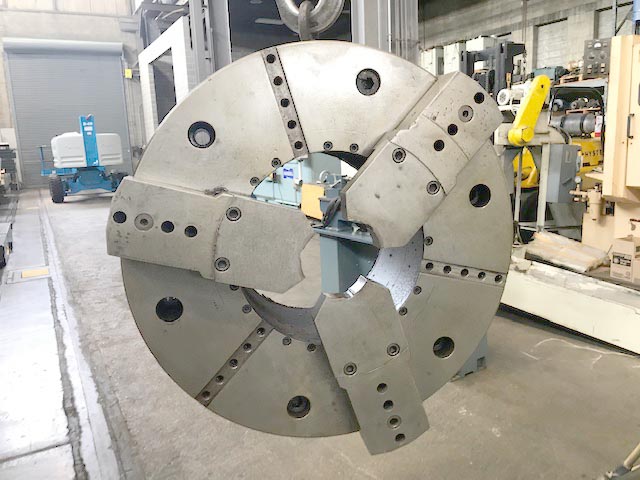

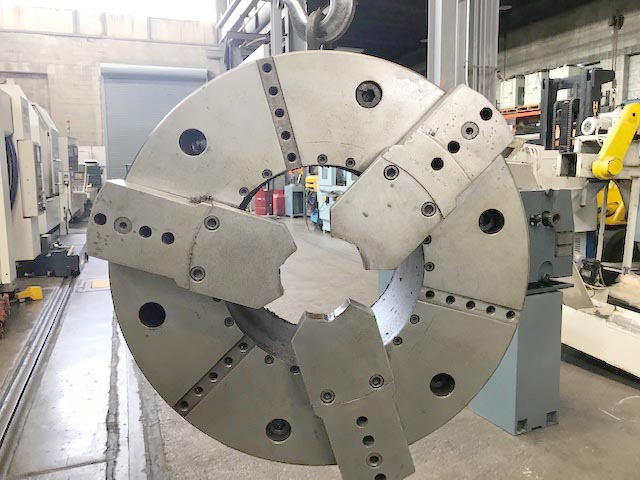

                                                       ROTOMORS 31" 3-JAW BIG BORE CHUCK
                   Automatic Self-Centering Chuck with Big Thru Bore and Built-in Hydraulic Cylinder
                                                                   Model MC-ID, Stock# K15852


DESCRIPTION:
This type of self-centering chuck with hydraulic power is suitable
for heavy production lathes. The feeding oil comes through holes drilled
in the back mounting surface of the chuck. This allows you to fully use
your machine's spindle bore.


CATALOG SPECIFICATIONS:
Chuck Diameter.................................................... 780mm ( 30.70" )
Chuck Thru Hole................................................... 385mm ( 15.15" )
Jaw Stroke............................................................ 20mm ( .78" )
Clamp Force at 30 Bar PSI................................... 55,000 LBS
Max RPM.............................................................. 800 RPM
Approximate Chuck Weight.................................. 1700 LBS


CONDITION: Appears to be in Very Good Condition !
