13' x 21' Jet Edge Abrasive Water Jet Cutting System

ACTUAL PHOTOS

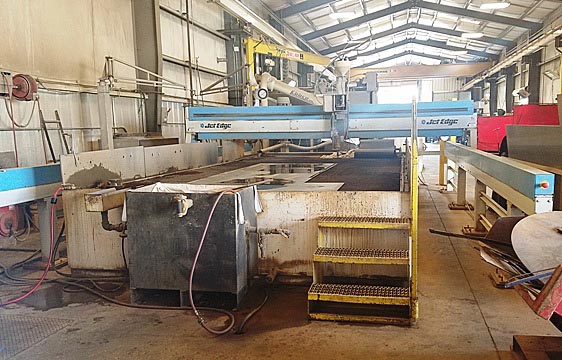

                                       13' x 21' JET EDGE ABRASIVE WATER JET CUTTING SYSTEM
                                                    Model 502290, Factory Refurb 2016, New 2009
                                                                              Stock# K15829


EQUIPPED WITH:

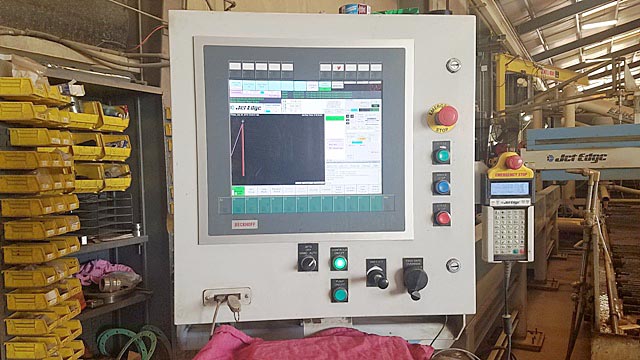

Aquavision Di CNC Control, 2.93 GB RAM, 297 GB Hard Drive Program
Storage, USB Port and Ethernet Network Port, Z-axis Head Adjustment,
100 HP Jet Edge X-Stream 90-100 75000 PSI Intensifier Pump,

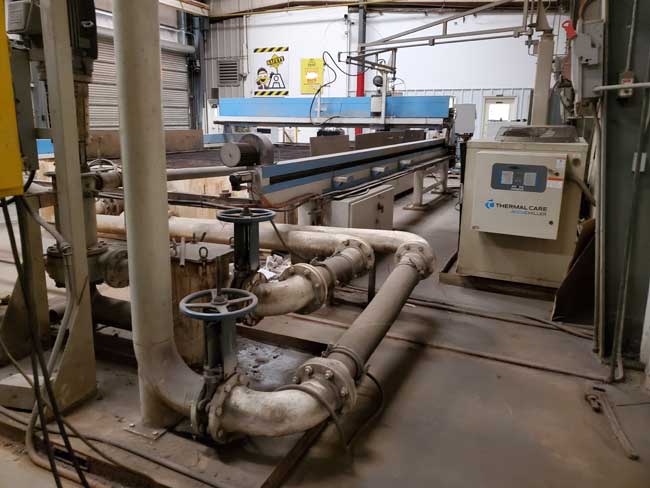

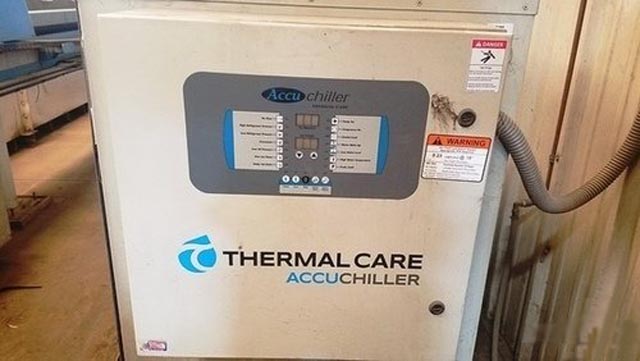

13' x 21' Integrated Traveling Gantry Design, Chiller,

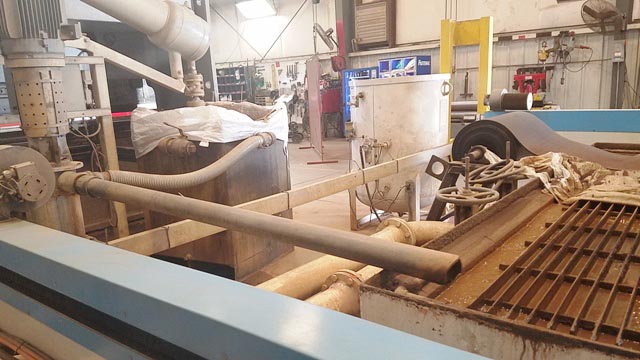

13' x 21' Catch Tank, 2200 LB Abrasive Bulk Transfer Hopper.


CATALOG SPECIFICATIONS:
Max Work Capacity...................................................... 13' x 21'
Cross Travel (Y-Axis)................................................... 156"
Longitudinal Travel (X-Axis)......................................... 252"
Max Contour Cutting Speed......................................... 300 IPM
Rapid Traverse Rate ................................................... 500 IPM
Cutting Pressure.......................................................... 75,000 PSI
Pump........................................................................... 100 HP
Factory Rated Accuracy............................................... +/- .003
Factory Rated Repeatability......................................... +/- .002
Electrics....................................................................... 460/3/60
Approximate Machine Dimension (Assembled)........... 366" x 214"
Approximate Machine Height....................................... 85"
Approximate Machine Weight (Empty)........................ 15,000 LBS


CONDITION: Only 7500 on Hours! Appears to be in Excellent Condition !!
