Ibarmia Traveling Column 5 Axis Vertical Machining Center

Stock # K15776

Ibarmia 5-Axis CNC Vertical Machining Center, Ibarmia ZVH58L400 CNC 5-Axis, Ibarmia ZVH Large 5-Axis Milling Machine, 5-Axis CNC Universal Head Mill

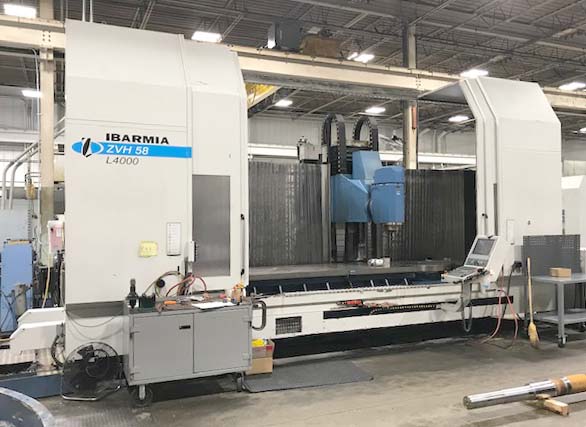

ACTUAL PHOTOS

                                 IBARMIA TRAVELING COLUMN 5 AXIS VERTICAL MACHINING CENTER
                                                 Model ZVH58L4000, S/N 7623, Installed New 2009
                                                                              Stock# K15776

EQUIPPED WITH:
Heidenhain iTNC530 CNC Control, Heidenhain Scale Feedback
Multiple Part Program Storage, RS-232 and Ethernet Port,
Star Roller Guide axes bearings, Full machine guarding including roof,
40 Station Automatic Tool Changer, Heavy Duty 50 HP Cat-50 Spindle
Divider wall with interlocks for 2 station pendulum machining,
Coolant thru spindle (360 PSI) with filtration system,
Complete documentation.

CATALOG SPECIFICATIONS:
X axis travel...................................... 4000 mm (157")
Y axis travel...................................... 1000 mm (39.4")
Z axis travel...................................... 860 mm (33.9")
A axis travel...................................... +/- 120 degrees
B axis travel...................................... 360 degrees

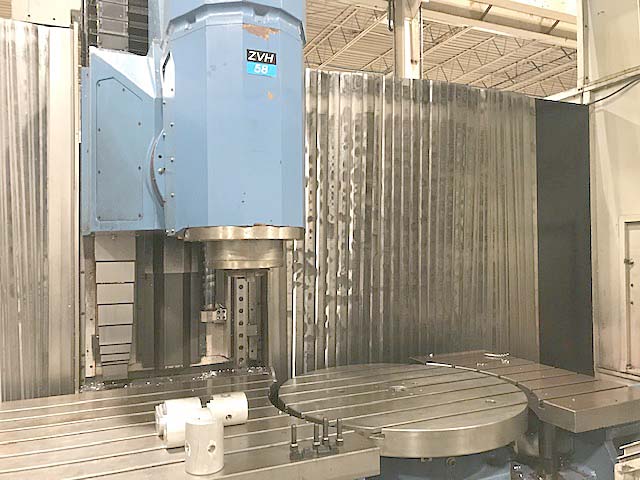

Rotary table size............................... 39.4" dia.
Rotary table load capacity................. 5,500 lbs.

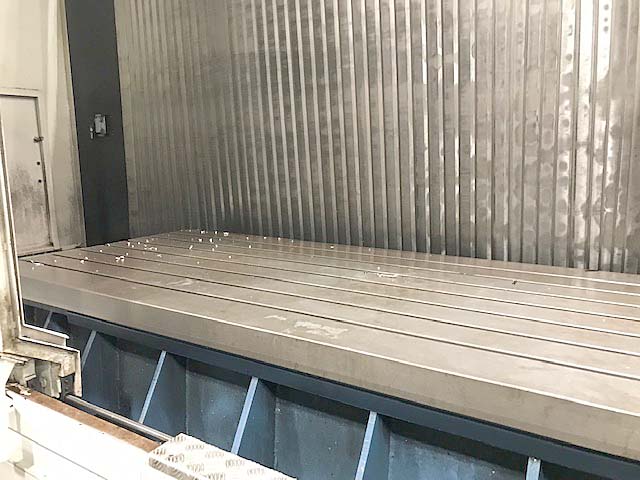

Fixed table size................................. 41.3" x 180"
Table load capacity............................ 8,000 lbs.
Spindle.............................................. CAT #50
Spindle speed................................... 6000 rpm
Spindle torque / power...................... 260 Ft-lbs / 50 HP cont.
Rapid traverse rates (X, Y & Z)......... 1200 IPM
Automatic tool changer capacity........ 40 tools

CONDITION: From High Precision Shop Doing Government Work.
                      This Machine Appears to be in Excellent Condition.
