6" Giddings & Lewis CNC Floor Type Boring Mills (2)
Stock # K15749
|
|

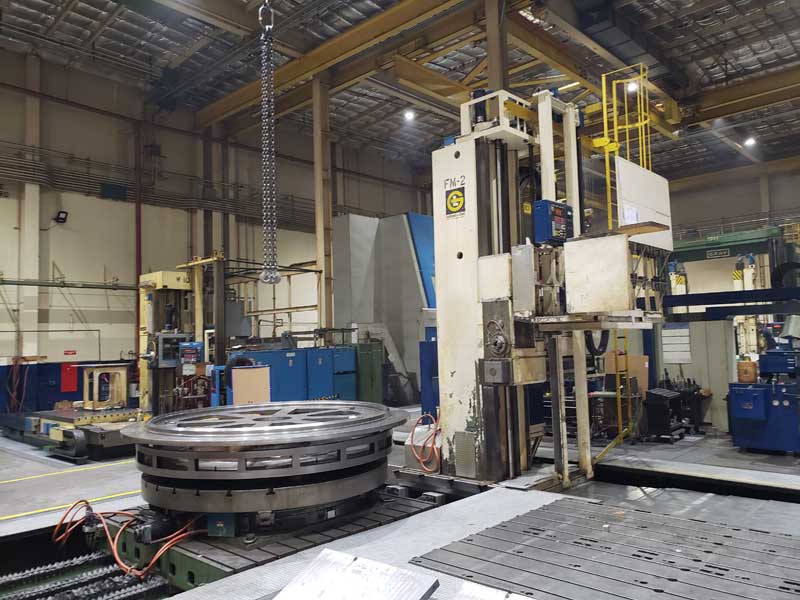

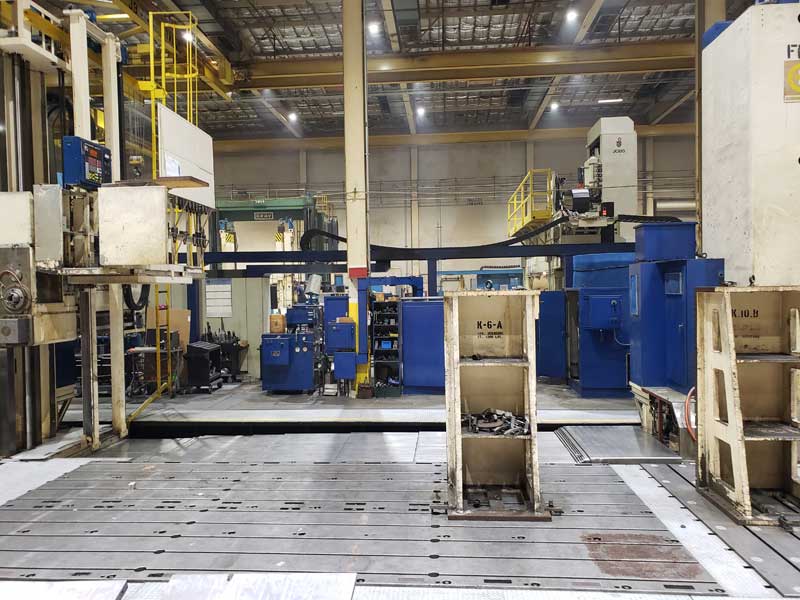

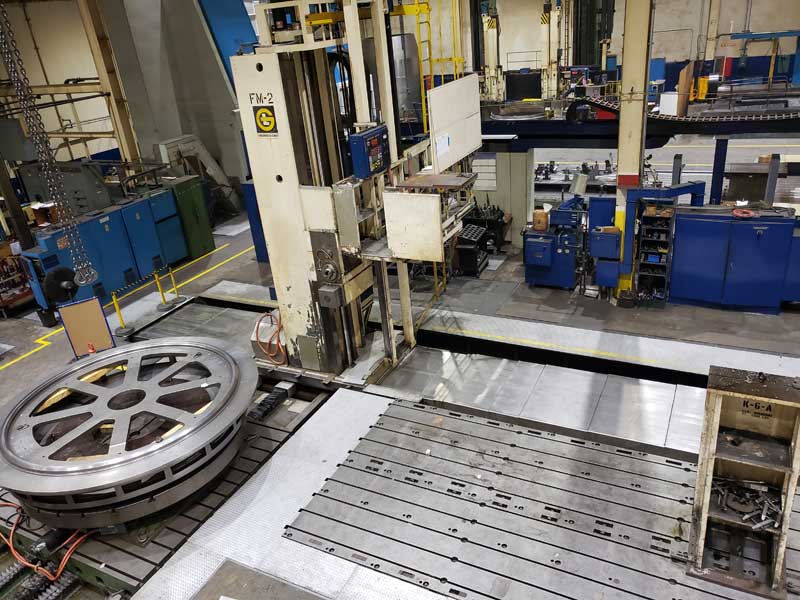

ACTUAL PHOTOS
(2) 6" GIDDINGS & LEWIS
CNC FLOOR TYPE HORIZONTAL BORING MILLS
Model 70-H60-UF, New 1974
Stock# K15749
This is (2) Traveling Column CNC Floor Type Boring Mills that Share
the Same X-Axis Ways and T-Slotted Floor Plate.
EQUIPPED WITH:
GE 1050 CNC Controls, Ballscrews, Linear Feedback Scales for X, Y, and W
Axes, Power Drawbar, (2) Machine Mounted on Same Runway that share a
120" x 480" Floor Plate, 120" Diameter Rotary Table with 84" Infeed
Travel, 12" x 12" Under Spindle Support, (2) Right Angle Head
Attachments, Heavy Duty 3 Way Column, 50 Taper Spindles, Power Draw
Bar, Steel Way Covers, Operator Lift Platform, Flood and Mist
Coolant.
CATALOG SPECIFICATIONS:
Spindle Diameter........................................... 6"
Column Longitudinal Travel (X-Axis)............. 480"
Spindle-Head Vertical Travel (Y-Axis)............ 144"
Spindle (Quill) Travel (Z-Axis)........................ 60"
Rotary Table Cross Slide Travel (W-Axis)...... 84"
Spindle Taper................................................. #50
Spindle Horsepower....................................... 50 HP
Spindle Speeds (Infinitely Variable)................ 6 to 1020 RPM
Spindle Feeds Range..................................... .0001 to .999 IPR
Milling Feeds Range....................................... .1 to 180 IPM
Power Rapid Traverse (X, Y, & W Axes)......... 120 IPM
Power Rapid Traverse (Z Axis)....................... 180 IPM
Electrics.......................................................... 480/3/60
Overall Height................................................. 282"
CONDITION: This Machine Appears to be in Excellent Condition. Still in
Original Owner's Aerospace Plant and Under Power!
|
 |
|
