ACTUAL PHOTOS

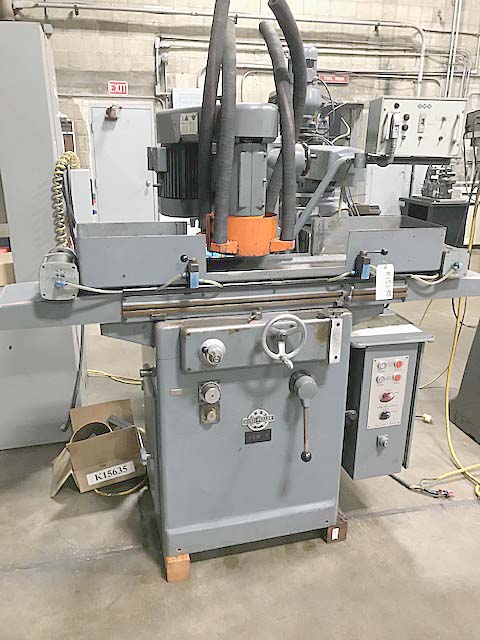

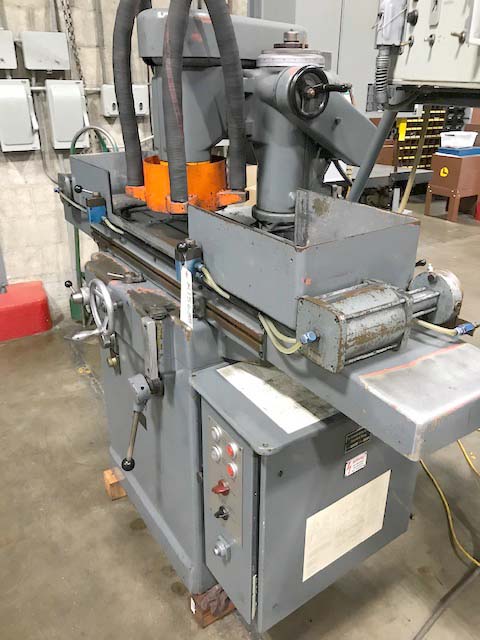

8" x 20" GMN (Georg Muller Nurnberg)
VERTICAL SPINDLE RECIPROCATING SURFACE GRINDER
Model MPS 3, S/N 6331, New 1969
Stock# K15635
EQUIPPED WITH:
Automatic Hydraulic Table Reciprocation, Incremental

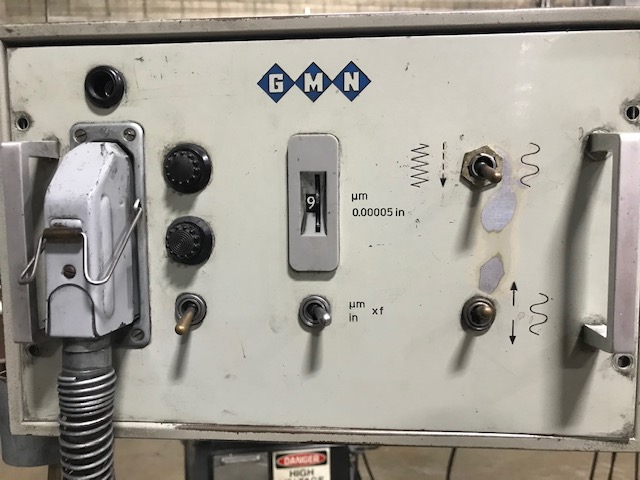

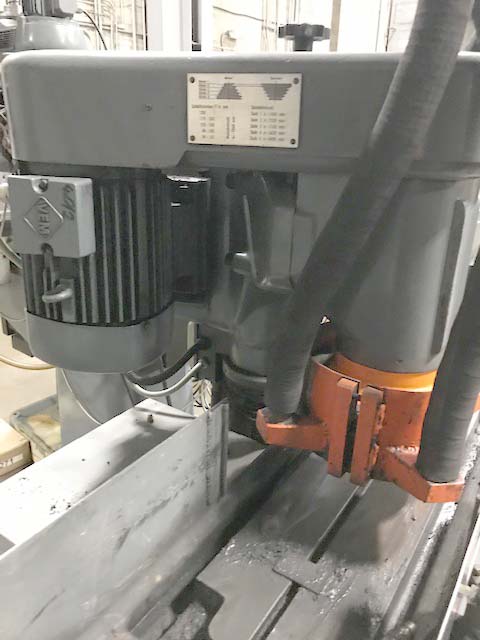

Power Down Feed, Vertically Mounted Spindle, Power Operated
Raising & Lowering of Head, Centralized Lube System,
Diamond Grinding Wheel, Hydraulic Part Clamping with
Air-Over Hydraulic Power Pack.
CATALOG SPECIFICATIONS:
Grinding Capacity................................................ 9" x 20"
Table Clamping Size............................................ 7-1/2" x 27-1/2"
Maximum Height Under New Wheel .................. 23-5/8"
Maximum Longitudinal Table Travel ................... 30"
Maximum Spindle Speed..................................... 6800 RPM
Max Grinding Height with Ceramic Wheel........... 5.9"
Max Grinding Height with Diamond Wheel.......... 8.26"
Grinding Wheel Diameter..................................... 9-3/4"
Grinding Wheel Thickness................................... 4"
Spindle Motor....................................................... 5.5 HP
Approximate Machine Dimensions...................... 84" x 48"
Approximate Machine Height.............................. 75"
Weight, Approx.................................................... 3000 lbs
CONDITION: Machine Appears to be in Excellent Condition!
