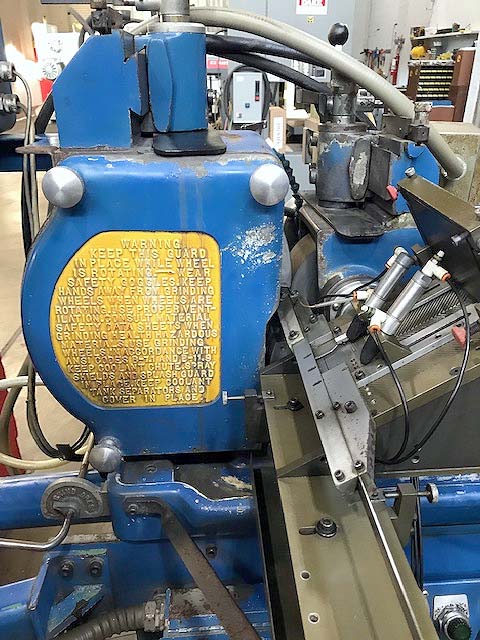

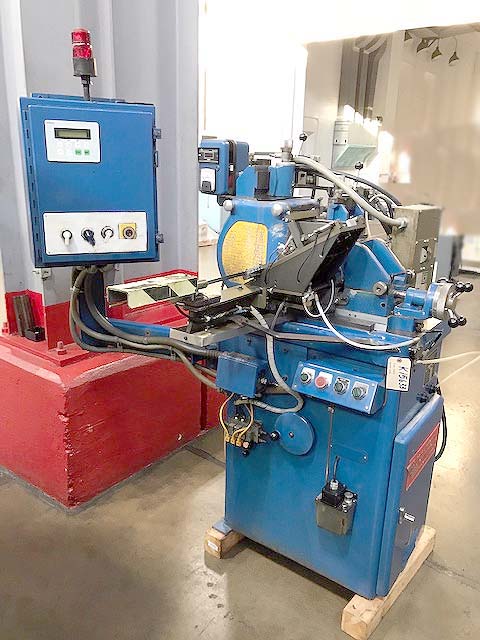

ACTUAL PHOTOS
ROYAL MASTER CENTERLESS GRINDER
Model TG-12X3, New 1999, S/N 2453
Stock# K15633
EQUIPPED WITH:
Thrufeed Workrest, Auto Part Loader, Profile Reg Wheel Dresser,
Profile Grinding Wheel Dresser.
CATALOG SPECIFICATIONS:
Work Diameter Capacity Maximum (With New Wheel)........ 1.5"
Work Diameter Capacity Nominal......................... .004"
Grinding Wheel Diameter, Maximum....................... 12"
Grinding Wheel Diameter, Minimum....................... 10"
Grinding Wheel Width, Maximum.......................... 3-1/2"
Grinding Wheel Width, Minimum.......................... 1/4"
Regulating Wheel Diameter, Maximum..................... 6"
Regulating Wheel Width, Maximum........................ 3"
Regulating Wheel Speeds (Variable)..................... 25 - 480 RPM
Grinding Wheel Motor................................... 7-1/2 HP
Hydraulic System Motor................................. 1/4 HP
Electrics.............................................. 220/440/3/60
Approximate Machine Dimensions......................... 24" x 48"
Approximate Machine Height............................. 60"
Approximate Machine Weight............................. 2300 LBS
CONDITION: Machine Appears to be in Excellent condition!
