19" ATS Systems Big Bore Extended Stroke Air Chuck
Stock # K15600
|

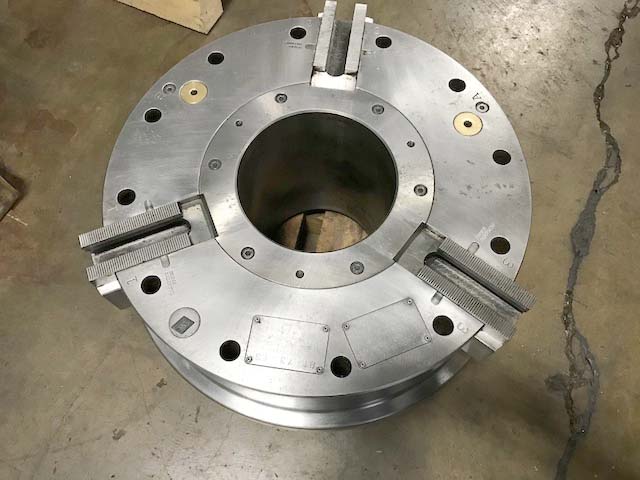

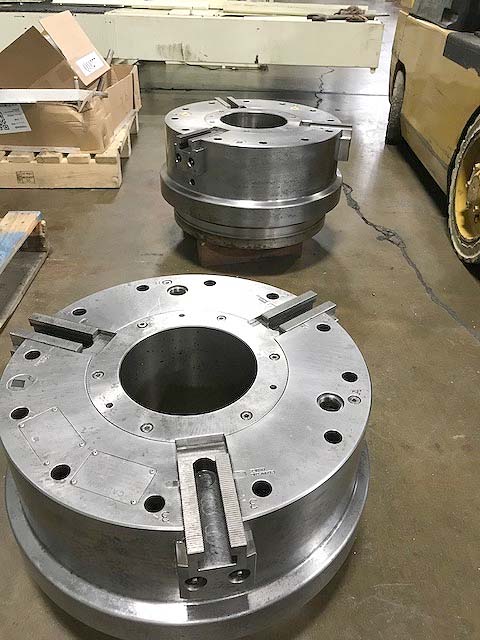

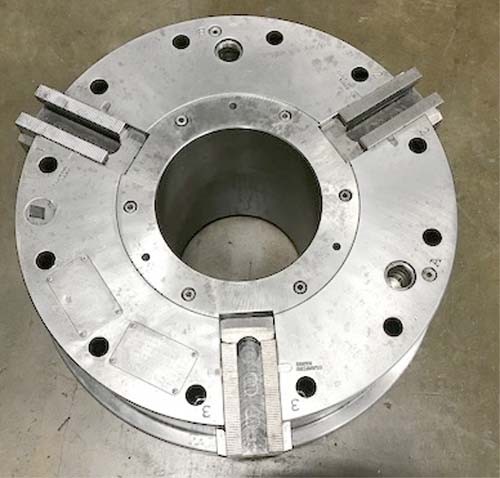

ACTUAL PHOTOS
19" ATS SYSTEMS BT SERIES EXTENDED STROKE FRONT ACTUATED AIR CHUCK

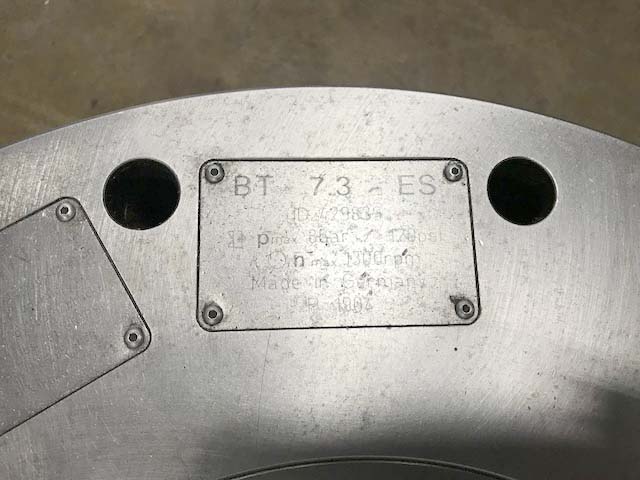

Model BP-480-185 BT 7.3 ES, Stock # K15600
EQUIPPED WITH:
BT Series Chucks are Extended Jaw Stroke Models for Tubular

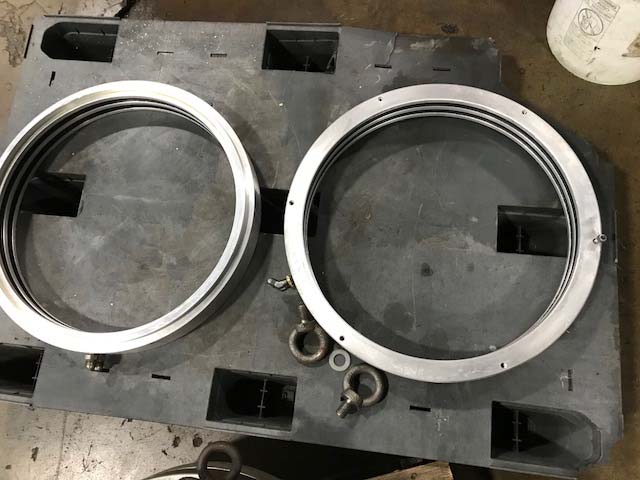

Applications. Includes Chuck and Air Distribution Ring,
Built-in Cylinder (No Drawtube), Big Unobstructed Through
Hole, Adjustable Grip Force.
CATALOG SPECIFICATIONS:
Nominal Size............................................... 19"
Through Hole.............................................. 7.28"
Face Diameter............................................. 8.9"
Rear Distribution Ring Diameter................. 20.9"
Chuck Length............................................. 11"
Jaw Stroke Per Jaw.................................... 1" ea
Jaw Serration............................................. 3/32 x 90
Maximum Speed........................................ 1300 RPM
Normal Operating Pressure....................... 60-120 PSI
Maximum Grip Force @ 90 PSI................. 41860 ft/lbs
Chuck Weight............................................. 600 lbs
CONDITION: Appears to be in Excellent Condition!
|
|
|
