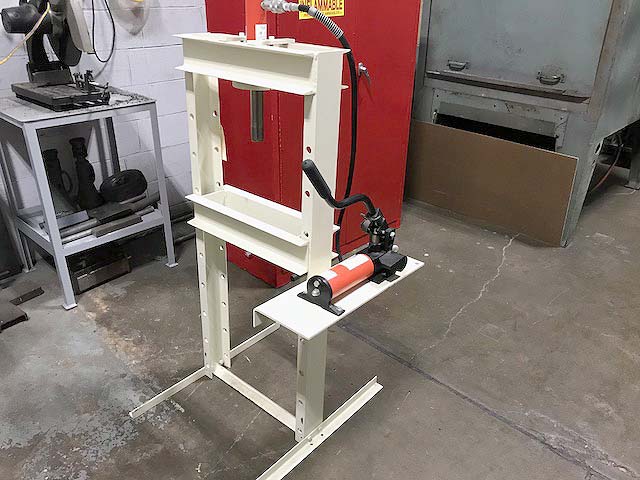

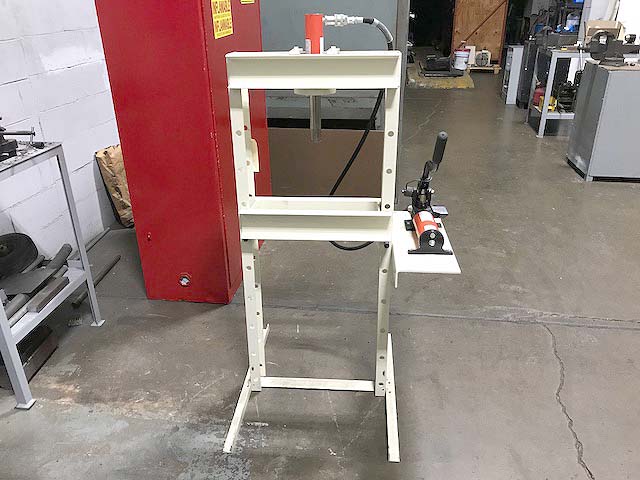

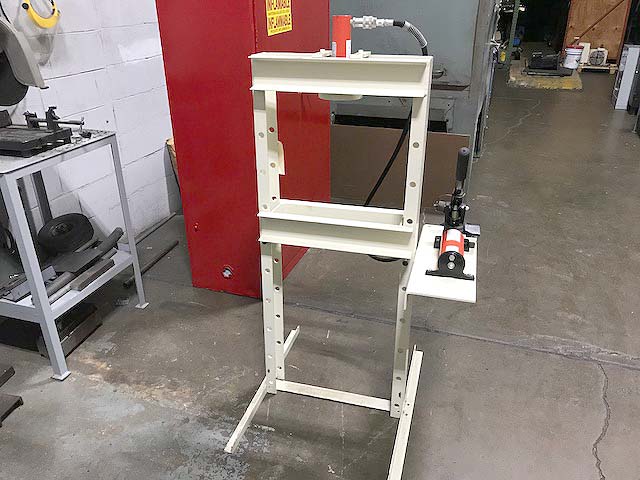

EQUIPPED WITH:

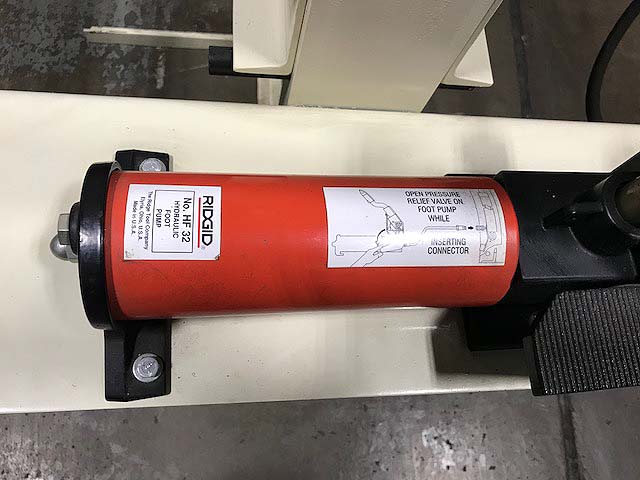

H-Frame Design, Power Team R10-6SA Hydraulic Cylinder, Power Team
HF-32 Hydraulic Pump, 2-Speed Hydraulic Hand Pump, Rapid Advance
and Pressing Speed, 7-1/4" x 21" Bed, Adjustable Vertical Height
of Bed, Ram Adjustable Right to Left on Frame, Quality Heavy
Duty Construction.
Made in the USA !

MACHINE SPECIFICATIONS:

Tonnage Capacity.................................... 10 Tons
Bed Area.................................................. 7-1/4"x 22"
Between Uprights.................................... 18-1/2"
Maximum Pressure.................................. 10,000 PSI
Maximum Ram Stroke.............................. 6"
Maximum Height Under Cylinder............. 43"
Minimum Height Under Cylinder............... 0"
Ram Travel on Frame............................... 14"
Approximate Machine Dimensions............ 22" x 38"
Approximate Machine Height.................... 58"
Approximate Machine Weight................... 300 LBS




CONDITION: Brand New !
