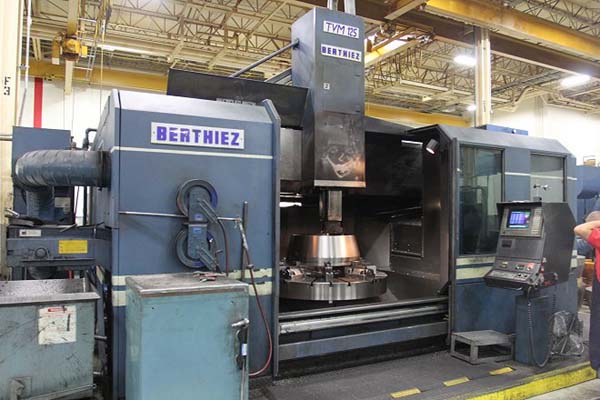

62"  BERTHIEZ MODEL: TVM 125
                  CNC VERTICAL BORING MILL WITH LIVE MILLING

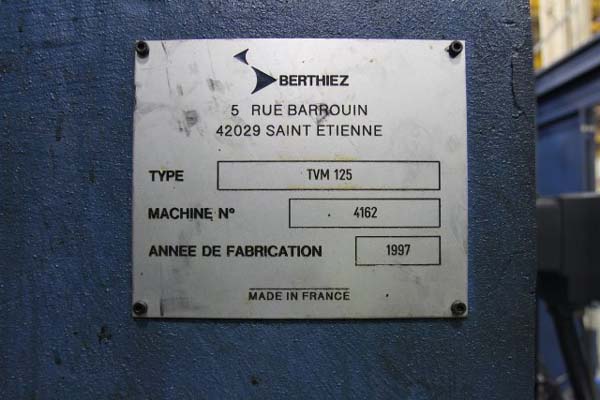

                                              NEW: 1997

  EQUIPPED WITH:
  * FANUC 15TB CNC CONTROL
  * 20 POSITION AUTOMATIC TOOL CHANGER
  * COOLANT THROUGH SPINDLE

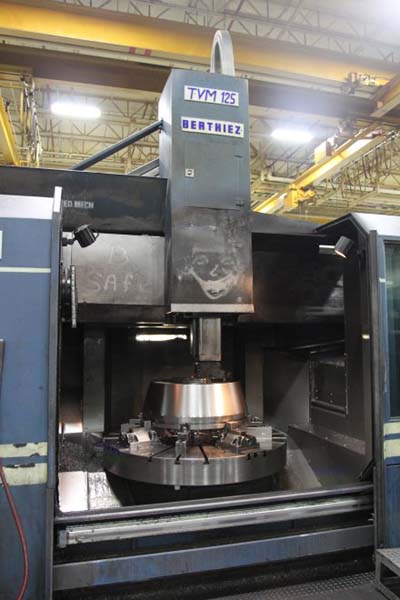

  * 62" FACE PLATE WITH 4-JAWS
  * (APPROXIMATE 15 TOOL BLOCKS)
  * TOOL AND PART PROBES

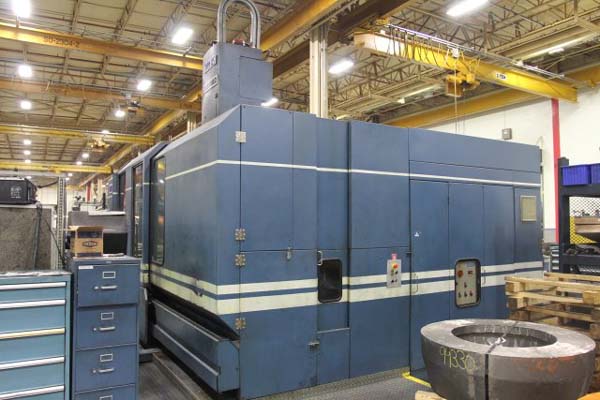

  * CHIP CONVEYOR AND FULL ENCLOSURE


CATALOGUE SPECIFICATIONS:
TABLE DIAMETER.......................... 62"
 MAXIMUM SWING........................... 75"
 HEIGHT UNDER RAIL....................... 43.3"
 MAXIMUM MACHINING HEIGHT................ 31.5"
 VERTICAL TRAVEL OF RAM.................. 31.5"
 TABLE SPEEDS............................ 3.2 TO 400 RPM
 SPINDLE DRIVE MOTOR..................... 125 HP
 MAXIMUM PART WEIGHT..................... 22,000 LBS
 FEED RATE X & Z......................... 0.004 TO 78.7 IPM
 RAPID TRAVERSE X & Z.................... 472 IPM
 C-AXIS INDEXING......................... 0.001 DEGREES (360,000 POSITIONS)
 C-AXIS TRAVERSE......................... 5 RPM
 LIVE MILL SPEEDS........................ TO 2,000 RPM
 LIVE MILL MOTOR......................... 11 HP
