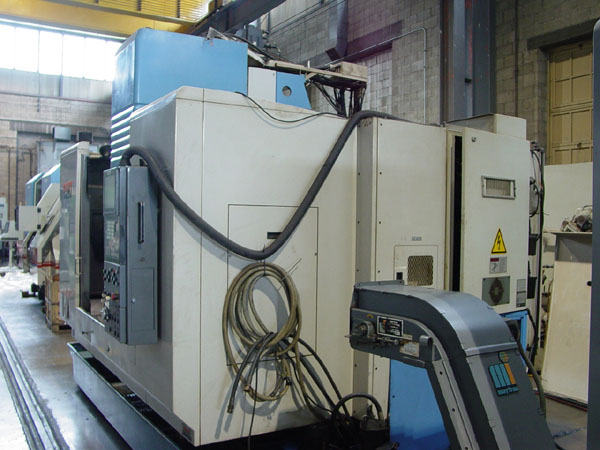

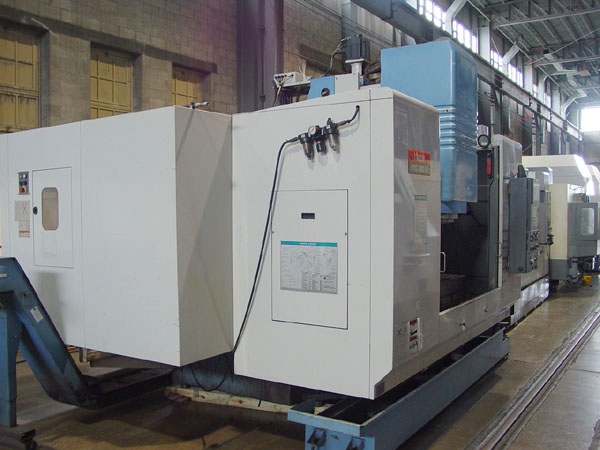

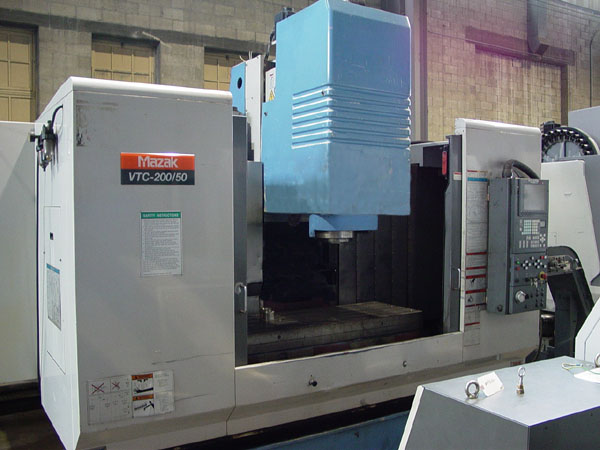

MAZAK VTC-200/50 CNC VERTICAL MACHINING CENTER
                      Model VTC-200/50, S/N 155924, New 5/2002
                                              Stock# K13778

EQUIPPED WITH:

Mazatrol Fusion 640 CNC Control, Rigid Tap,  RS-232 Port, 24 Position
Automatic Tool Changer, Heavy Duty 50 Taper 25 HP Geared Head, Thru
Spindle Coolant, Full Enclosure, Chip Conveyor, Coolant System.

CATALOGUE SPECIFICATIONS:

Table Working Surface............................. 57" x 20"
Table Load Capacity............................... 2,640 LBS
Longitudinal Travel (X-Axis)...................... 41.3"
Cross Travel (Y-Axis)............................. 20"
Vertical Travel (Z-Axis).......................... 23"
Rapid Traverse Rate............................... 1181 IPM
Spindle Face to Table Surface..................... 5.9" - 25.98"
Tool Storage Capacity............................. 24
Spindle Speeds Range.............................. 50 - 6,000 RPM
Spindle Taper..................................... CAT-50
Spindle........................................... 25 HP
Approximate Machine Dimensions.................... 114" x 112"
Approximate Machine Height........................ 110"
Approximate Machine Weight........................ 23,000 LBS

CONDITION: Machine Appears to be in Excellent Condition!
