OKK MCV-860 3-Axis CNC Vertical Machining Center

Stock # K15392

Used OKK MCV-860 3-Axis CNC Vertical Machining Center For Sale, Used CNC Vertical Machining Center For Sale

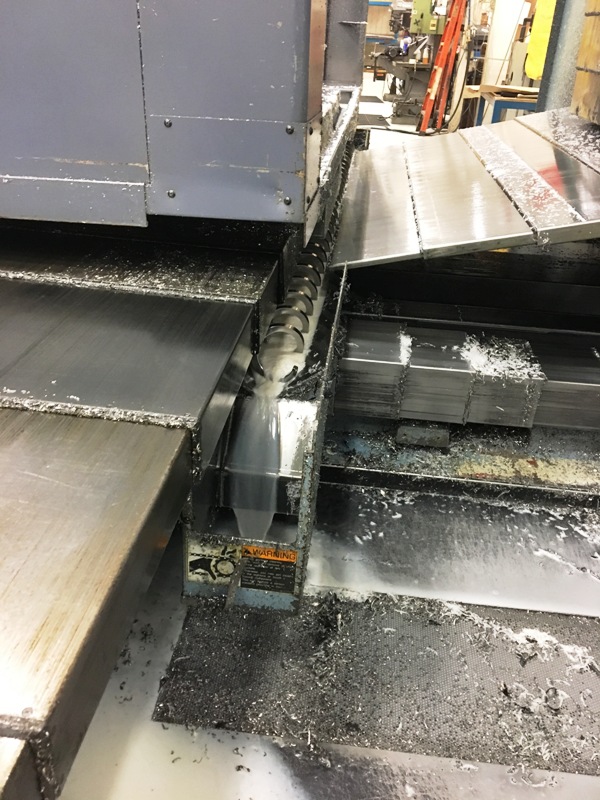

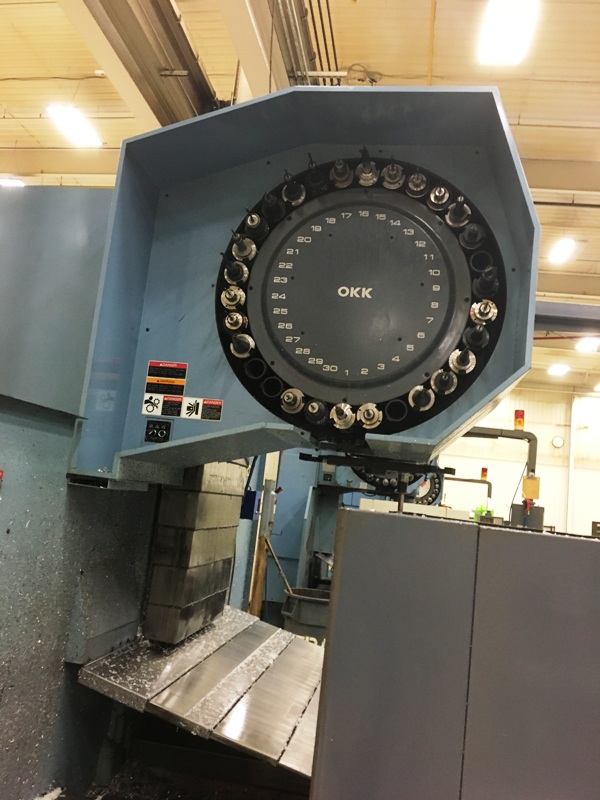

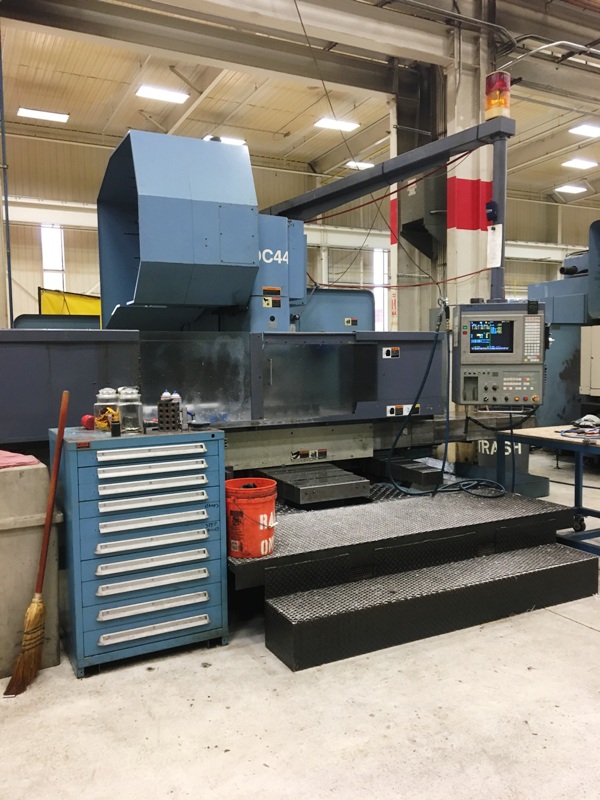

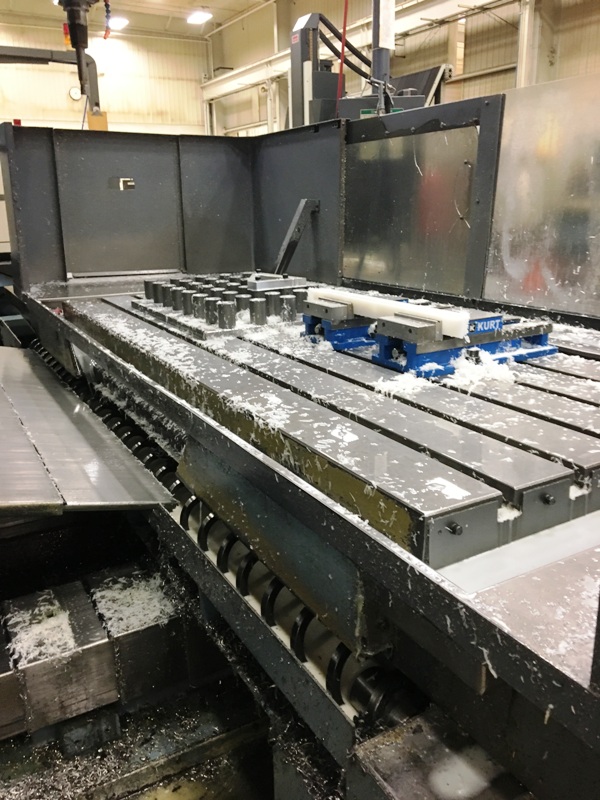

ACTUAL PHOTOS

                  OKK MCV-860 3-AXIS CNC VERTICAL MACHINING CENTER
                                                  Model MCV-860, New 1998
                                                            Stock# K15392

EQUIPPED WITH:
OKK Mitsubishi Neomatic Meldas 500 CNC Controls, Remote MPG,
30 Automatic Tool Changer, 2-Speed Gear Box, Chip Auger, Transformer,
Spindle Chiller, (2) Coolant Pump and Tanks with Skimmers.

CATALOG SPECIFICATIONS:
Table Size....................................................... 90.55" x 33.46"
Max. Table Load Capacity............................... 6,614 LBS
X Axis Travel................................................... 80.31"
Y Axis Travel................................................... 33.86"
Z Axis Travel................................................... 28.35"
Clearance Table Top to Spindle Nose............. 7.87" to 36.22"
X, Y, Z Axis Rapid Traverse Rate.................... 630 IPM
Spindle Speeds............................................... 25-6,000 RPM
Spindle Taper.................................................. CAT 50
Spindle Motor.................................................. 35/30 HP, 3-Phase, 60 Cycle
Magazine Capacity.......................................... 30 ATC
Approximate Dimensions................................ 118" x 136"
Approximate Height........................................ 130"
Approximate Weight........................................ 27,500 LBS
